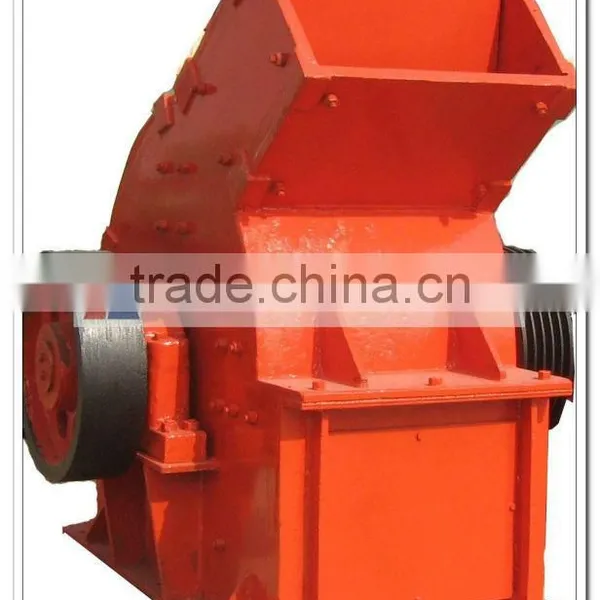

Furnace slag hammer crusher PC600*400

FOB Price

USD $1,000 - $80,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao Shanghai
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Hammer Crusher
Application	stone crushing	Motor Type	AC Motor
Power(W)	7.5-200 Kw	Capacity(t/h)	5-10 t/h
Place of Origin	Henan, China	Brand Name	Lanji
Model Number	PC400*300	Dimension(LWH)	as per model
Weight	0.2-10 Ton	Certification	ISO9001
Warranty	2 Years, one year excluding wearing parts	After-sales Service Provided	Overseas service center available

Product Description

Furnace slag hammer crusher PC600*400 :

Feeding size: ≤200-≤350mm

Processing capacity: 5-150m³/h

Processible materials: limestone, furnace slag, coke, cola, salt, chalk, gypsum, alums, iron ore, non-ferrous metals, granite, quartz stone, sandstone, cobbles etc.

Application range: cement plant, metallurgy department, electric power department, construction material industry, mining and road construction industry.

1. Brief Introduction of Hammer Crusher

The hammer crusher, also named heavy hammer crusher, crushes by the collisions between high-speed hammer and materials. It has features of simple structure, high reduction ration, high efficiency, etc. As the main equipment in stone crusher plant, our large hammer crusher is ideally suitable for crushing all kinds of ores and any big-sized materials. For this kind of stone crusher, the highest anti-pressure strength of crushed material is 320 MPA.

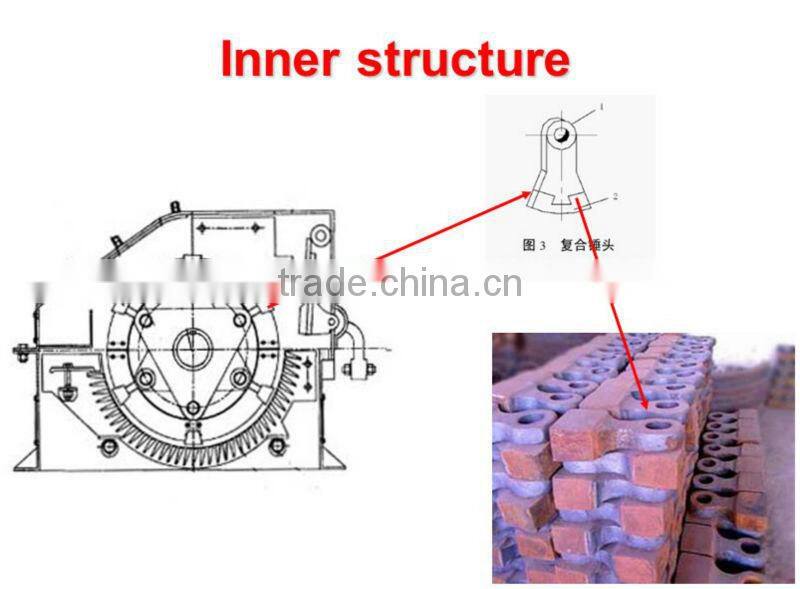

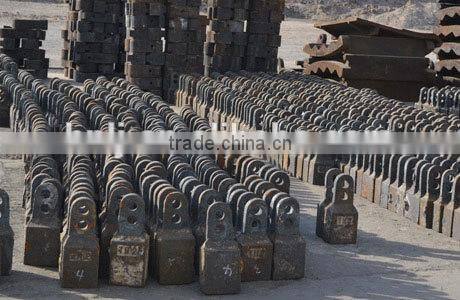

Hammers

2. Hammer Crusher Working Principle:

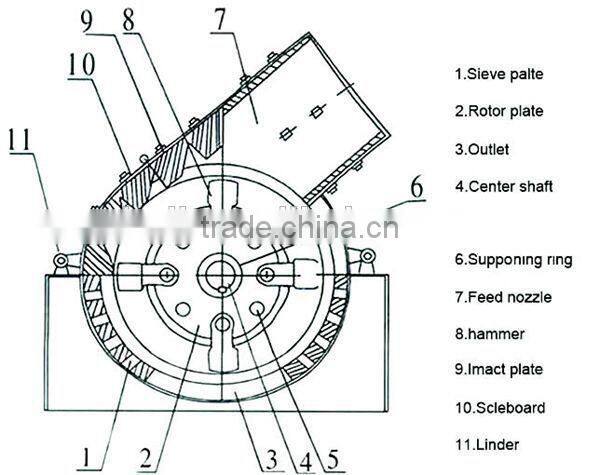

The electromotor drives the rotor to rotate with high speed in the crushing chamber. The materials are fed into the machine from the upper feeding mouth and are crushed under the hitting, impacting, cutting and grinding of the hammer which is moving with high speed. On the bottom of the rotor, there is sieve plate and the crushed materials that is smaller than the screen size are discharged from the sieve plate, and the coarse particles bigger than the screen size are retained on the sieve plate to be hit and ground again by the hammer and finally be discharged from the machine from the sieve plate.

3. Hammer Crusher/hammer mill crusher Main Specifications:

Specification	Feeding size(mm)	Discharging size(mm)	Output(t/h)	Power(kw)	Weight(kg)
PC400×300	≤100	≤10	5-10	11	800
PC600×400	≤120	≤15	10-25	18.5	1500
PC800×600	≤120	≤15	20-35	55	3100
PC1000×800	≤200	≤13	20-40	115	7900
PC1000×1000	≤200	≤15	30-80	132	8650
PC1300×1200	≤250	≤19	80-200	240	13600
