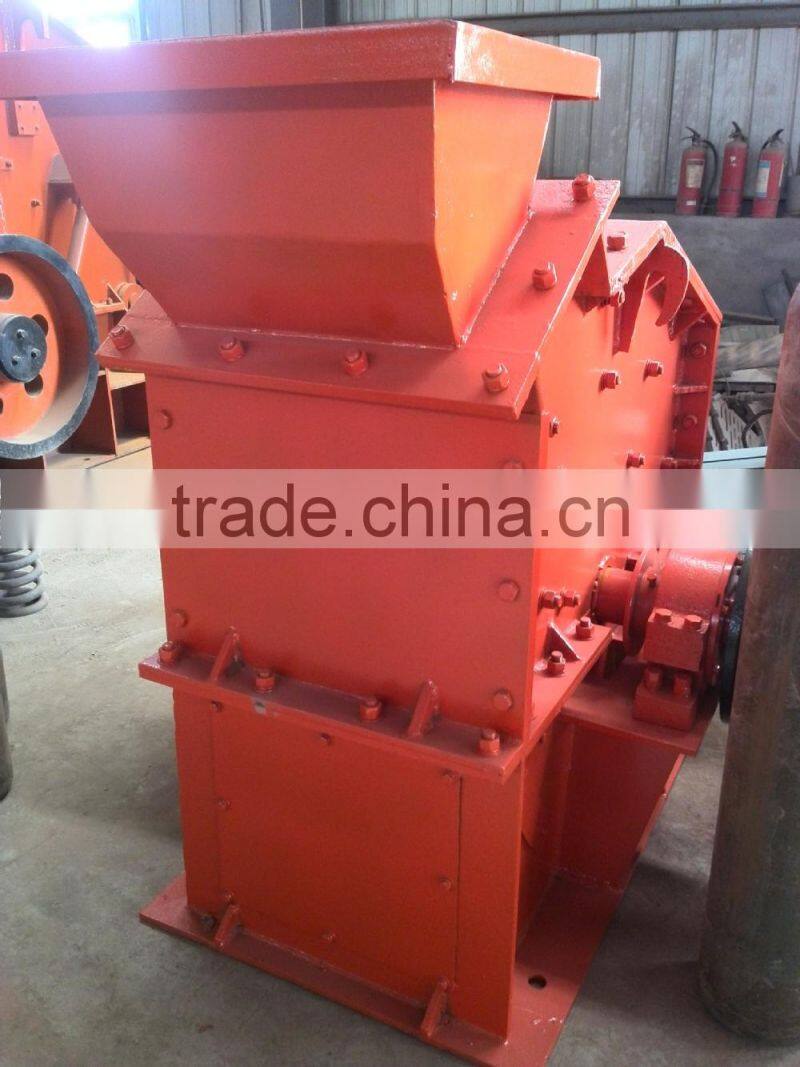

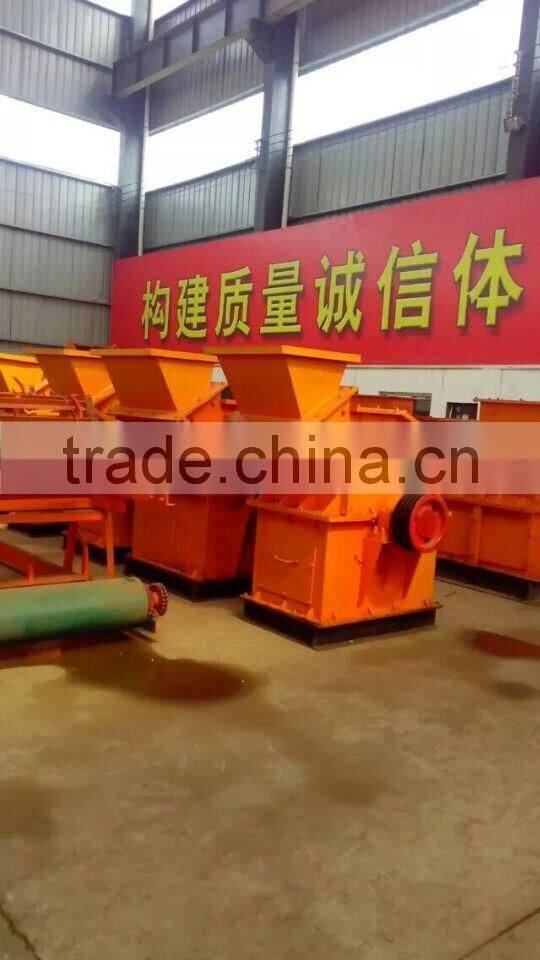

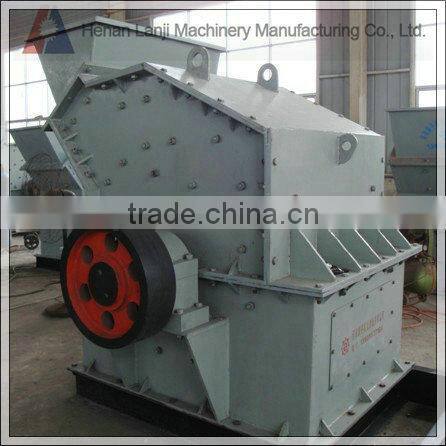

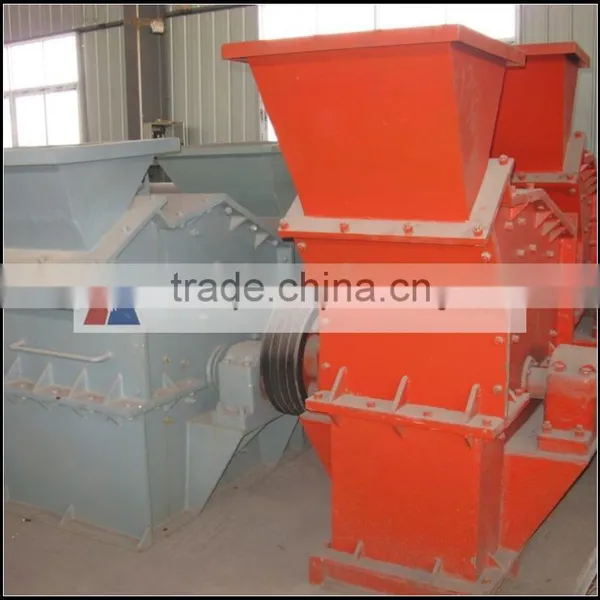

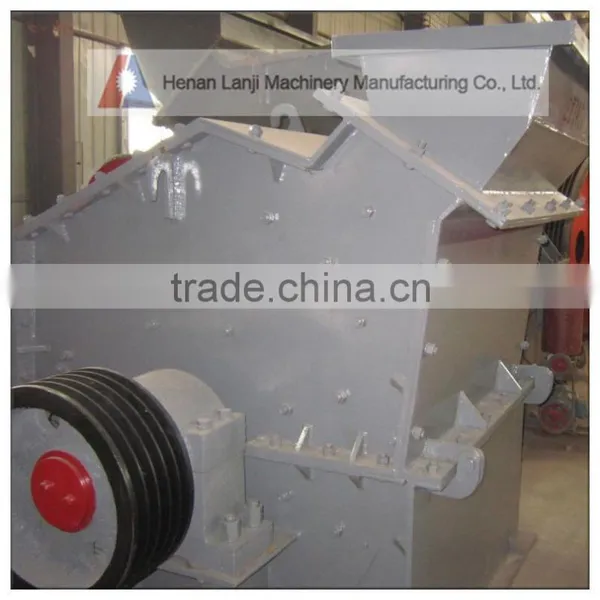

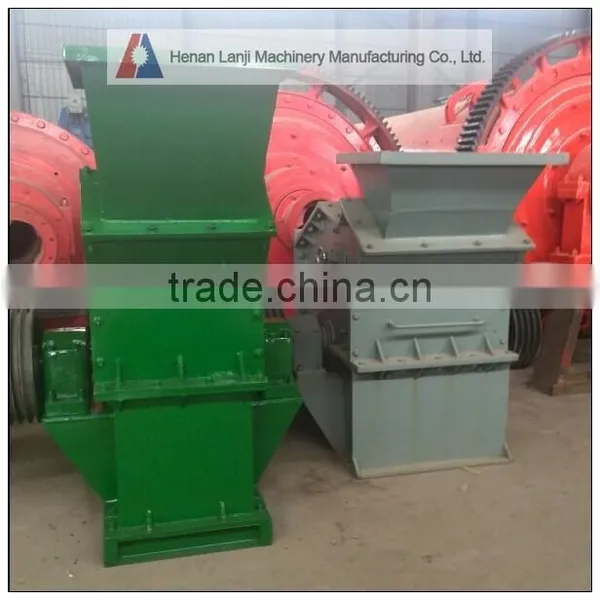

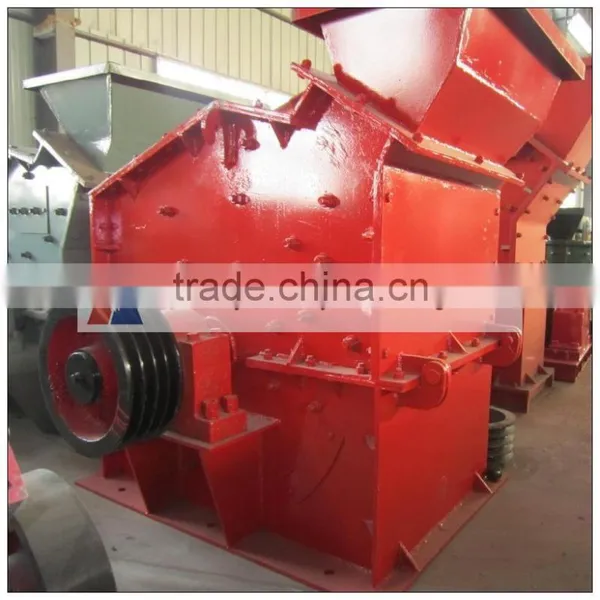

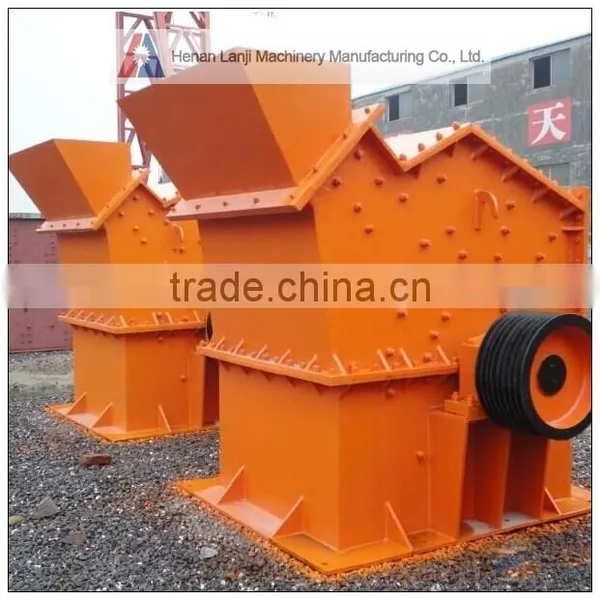

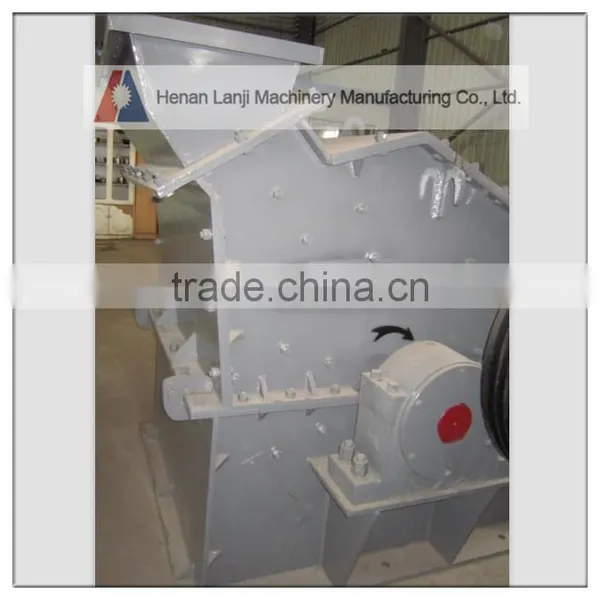

Small fine impact crusher, sand making fine crusher with low price
1. Brief introduction of impact fine crusher
Impact Crusher adopts the newest manufacturing technology and unique structure design,so the discharged product is with cubic and perfect shape, no tension and crack.This crusher can crush materials with size smaller than 500mm and resisting strength less than 350MPa,such as granite,limestone, concrete aggregate, etc.
2. Features of impact fine crusher
1).Large feed size and high crushing chamber are suitable to crush hard and big materials.
2).Space between impact plates and hammers can be adjusted conveniently,so the shape and size of final product can be controlled.
3).New type of abrasion-proof materials are used, so life of hammers, impact plates and lining plates is much longer.
4).High chromium hammer and unique lining plate are suitable to crush hard stones efficiently.
3.High-efficient impact crusher technical specification:
Model |
Feeding size(mm) |
Discharging size(mm) |
Capacity(t/h) |
Power(kw) |
Weight(t) |
PCX800×400 |
≤60 |
≤5(96%) |
20-25 |
37 |
2.5 |
PCX800×600 |
≤60 |
≤5(94%) |
35-50 |
45 |
4.7 |
PCX800×800 |
≤70 |
≤5(92%) |
40-60 |
75 |
6.5 |
PCX1000×1000 |
≤80 |
≤5(91%) |
60-90 |
90 |
8.8 |
PCX1000×1200 |
≤90 |
≤5(88%) |
75-110 |
110 |
13.6 |
PCX1200×1200 |
≤100 |
≤5(86%) |
120-145 |
160 |
19.5 |
