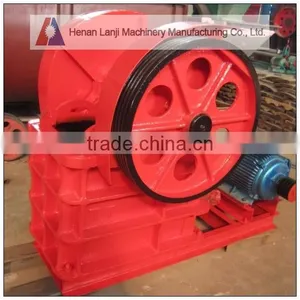

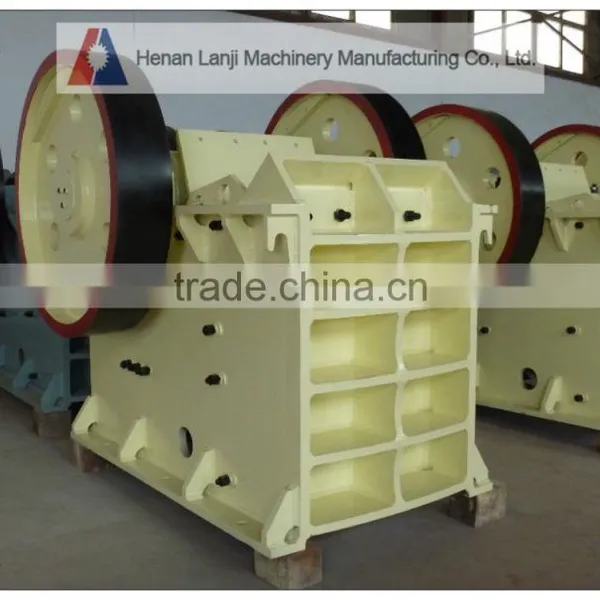

Laboratory small jaw crusher for mineral ore :
The laboratory jaw crusher is designed for fast crushing of aggregates, ores, minerals, coal, coke, chemicals and other similar materials. It is compact and of rugged construction for general laboratory or small pilot plant operations.
Two jaws of manganese steel are provided in this laboratory jaw crusher. The moveable jaw produces two blows for every revolution, thus reducing over sizing to a minimum. A combination of forward and downward strokes with a rocking action exerts pressure on the coarser material, yet permits the finished material to pass through the jaws.
Typical Applications
Rock
Stone
Coal
Minerals
Concrete
Asphalt
Key Features
Heavy duty construction
Easily adjustable settings
Reversible manganese jaw dies
Optional custom feed hoppers and support stands
Low horsepower requirements
V-Belt drive
Laboratory small jaw crusher main technical parameters:
Model |
Inlet size |
Max feeding |
Output (mm) |
Capacity (kg/h) |
Rotating Speed(r/min) |
Motor Power |
Weight(kg) |
Dimension (mm) |
(mm) |
(mm) |
(kw) |
||||||
PE100*60 |
100*60 |
50 |
0-3 |
40-230 |
650 |
1.5 |
85 |
950*400*550 |
PEF100*100 |
100*100 |
80 |
3-25 |
200-1800 |
500 |
3 |
320 |
1050*410*860 |
PEF125*100 |
125*100 |
80 |
5-25 |
200-1800 |
500 |
3 |
320 |
1050*410*860 |
PEF150*100 |
150*100 |
90 |
6-38 |
400-3000 |
500 |
3 |
360 |
1050*410*860 |
PEF150*125 |
150*125 |
100 |
6-38 |
400-3000 |
500 |
3 |
360 |
1050*410*860 |
Small potable Jaw Crusher Package and shipping
Our products are usually packed by plywood case,wooden case,nylon coth, etc. And we will change packing ways by the real situation.
The goods will be delivred from Qingdao port and we will take buyers requirements into consider,too.
