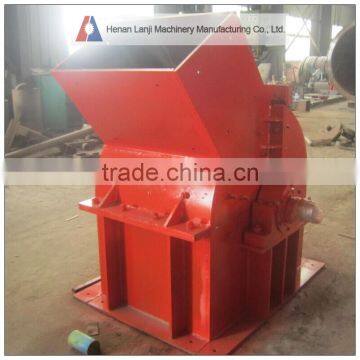

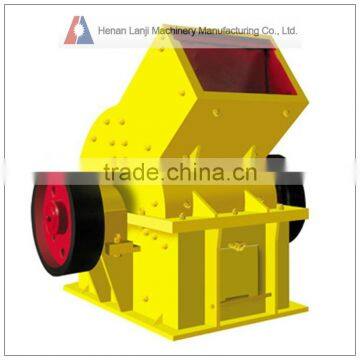

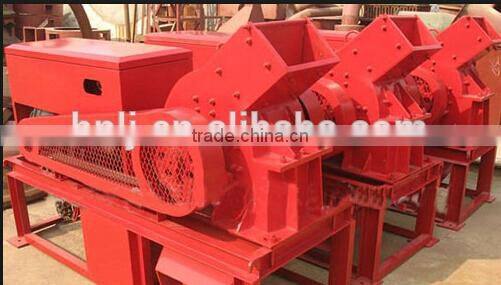

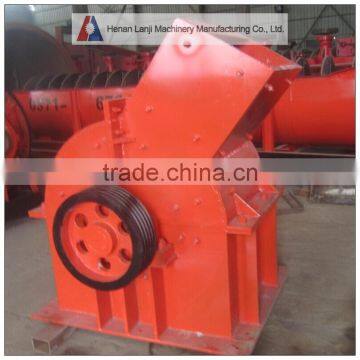

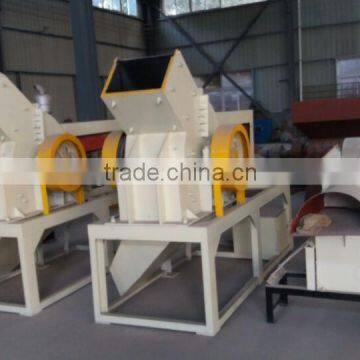

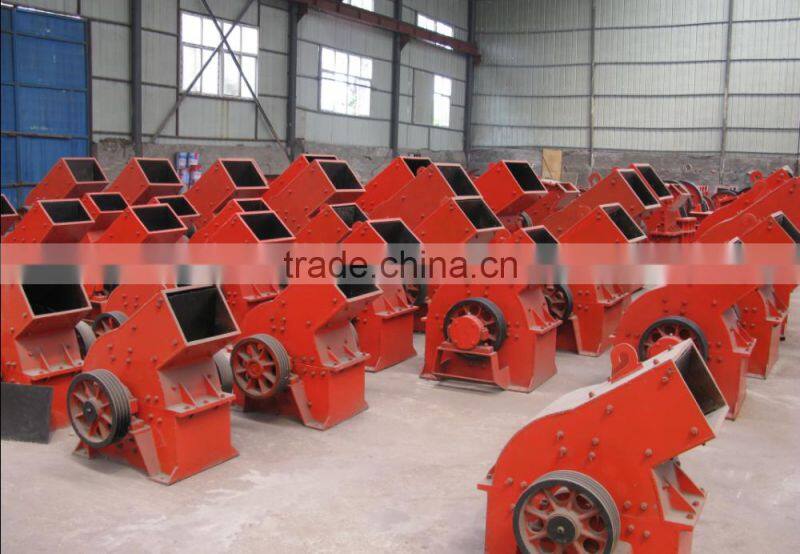

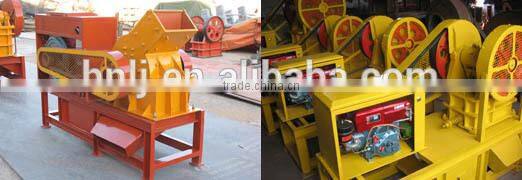

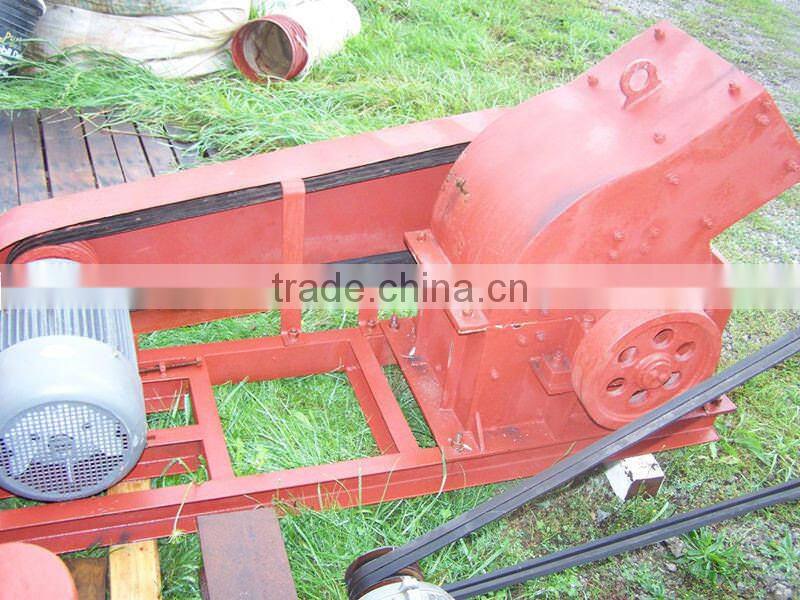

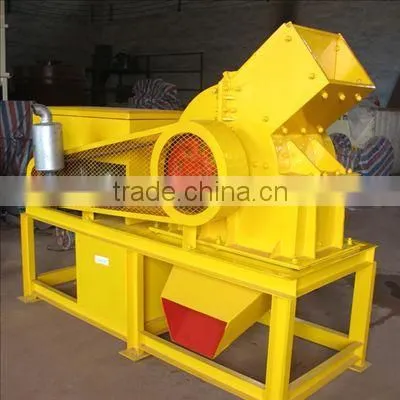

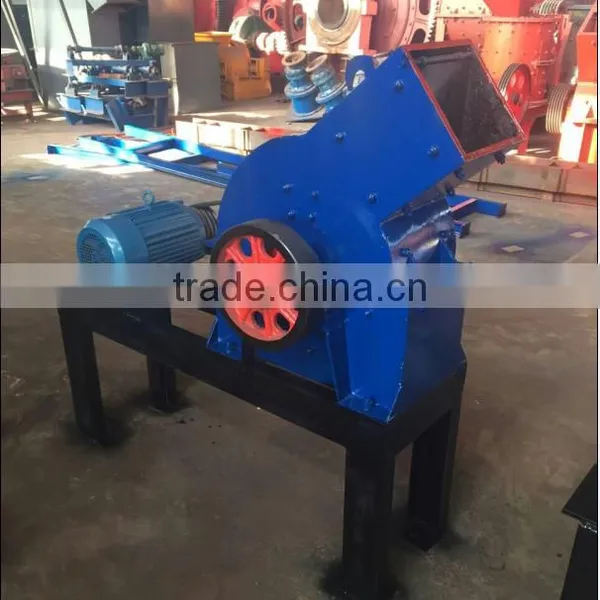

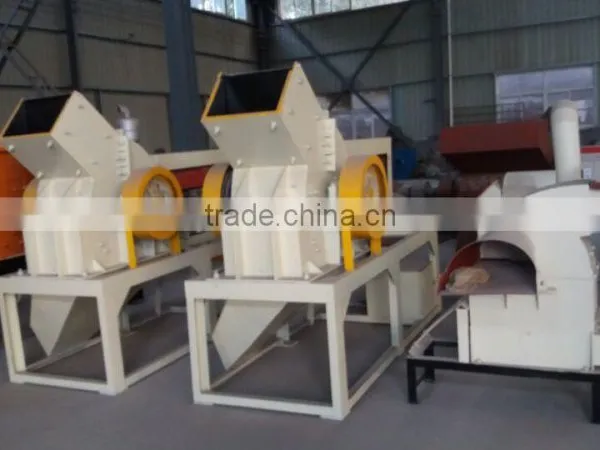

Diesel engine mobile hammer crusher
Diesel engine small hammer crusher :
Diesel engine hammer crusher is portable and powered by diesel engine,which is mainly used for crushing barite ,limestone, coal, terrazzo,silica sand stone,coke and gypsum etc.Diesel engine hammer crusher is widely applied in places that don't have enough electricity or without electricity. Diesel engine hammer crusher is adopted as medium and fine crushing equipment for mining , building,chemical,metallurgy and construction.
.
Working Principle of the diesel engine hammer crusher:
When Diesel engine hammer crusher works,The electric motor drives the rotor and the rotor moves, making the hammer rotate in high speed. The materials are crushed in the crusher by the rotated hammer. The end products come out via the strips of the screen under the machine. The size of the granularity can be adjusted by changing the gap among the screen strips.
Features
1. Stable operation,Reliable Quality
2. Adjustable end products sizes, simple crushing process
3. High chrome and abrasion resistant hammer head
4. Compact structure, high efficiency
Main technical parameters of the portable small hammer crusher:
Model |
Feeding Size (mm) |
Discharging Size (mm) |
Capacity (t/h) |
Power for Diesel engine (kw) |
Weight (kg) |
Overall Dimension (mm) |
PEC1525 |
<125 |
10-40 |
1-3 |
5.7 |
920 |
1836×1030×1408 |
PEC2540 |
<200 |
20-50 |
5-20 |
15.5 |
3150 |
2805×1210×1860 |
PCC3040 |
<70 |
≤12 |
≤8 |
11.5 |
960 |
2210×1195×1360 |
PCC4060 |
<100 |
≤15 |
≤15 |
23 |
1650 |
2612×1205×1670 |
