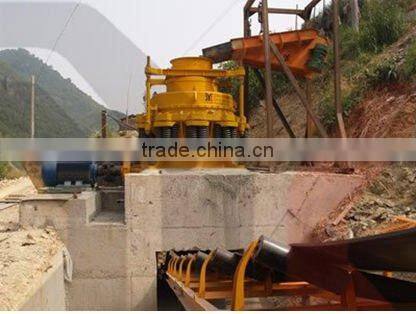

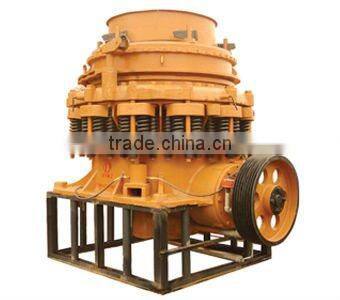

Competitive price cone crusher hot sale
Applications of Cone Crusher:
Cone crusher is a kind of crushing machine commonly used in mining, metallurgical industry, construction, road construction and chemical industry.
Our cone crusher can be used to crush hard and medium hard minerals, rocks, iron ores, limestone, copper ores, quartz, granite, sandstones, etc
Features of Cone Crusher:
1. Our cone crusher has the characteristics of large breaking force, high efficiency, high crushing capacity, low operating cost and long service life. It is convenient to operate and is economical.
2. The crushed materials are of equal size, thus reducing circulating load.
3. Large and medium-sized crushers adopt hydraulic chamber-cleaning systems, which will help reduce the down time.
4. Cone crushers with different chambers are available, to meet our customers' requirements.
5. Grease seal can effectively avoid the blockage of water feeding system and drainage system, as well as mixing of water and oil.
6. As the overload protection device, spring safety device allows foreign matter and iron pieces to pass through the crushing chamber without jeopardizing
Components of Cone Crusher:
Cone crusher mainly consists of frame, horizontal axis, cone brake, balance wheel, eccentric sleeve, upper crushing wall (welding cone), down crushing wall (movable cone), fluid coupling, lubricating system, hydraulic system and control system.
Technical Parameters of Cone crusher:
| Type | Diameter of cone | Max. feeding size | Width of discharging hole | Crushing capacity | Motor power (kw) | Swing frequency of main shaft | Weight (t) | Dimension (L× W× H) |
|
| PYB | 600 | 600 | 65 | 12-25 | 40 | 30 | 356 | 5 | 2234×1370×1675 |
| PYD | 35 | 3-13 | 12-23 | 5.5 | 2234×1370×1675 | ||||
| PYB | 900 | 900 | 115 | 15-50 | 50-90 | 55 | 333 | 11.2 | 2692×1640×2350 |
| PYZ | 60 | 5-20 | 20-65 | 11.2 | 2692×1640×2350 | ||||
| PYD | 50 | 3-13 | 15-50 | 11.3 | 2692×1640×2350 | ||||
| PYB | 1200 | 1200 | 145 | 20-50 | 110-168 | 110 | 300 | 24.7 | 2790×1878×2844 |
| PYZ | 100 | 8-25 | 42-135 | 25 | 2790×1878×2844 | ||||
| PYD | 50 | 3-15 | 18-105 | 25.3 | 2790×1878×2844 | ||||
| PYB | 1750 | 1750 | 215 | 25-50 | 280-480 | 160 | 245 | 50.3 | 3910×2894×3809 |
| PYZ | 185 | 10-30 | 115-320 | 50.3 | 3910×2894×3809 | ||||
| PYD | 85 | 5-13 | 75-230 | 50.2 | 3910×2894×3809 | ||||
| PYB | 2200 | 2200 | 300 | 30-60 | 59-1000 | 280-260 | 220 | 80 | 4622×3302×4470 |
| PYZ | 230 | 10-30 | 200-580 | 80 | 4622×3302×4470 | ||||
| PYD | 100 | 5-15 | 120-340 | 81.4 | 4622 | ||||
