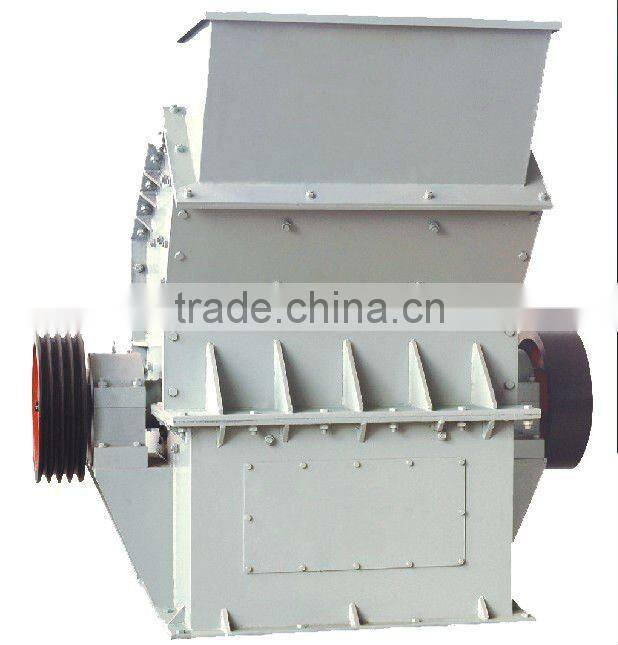

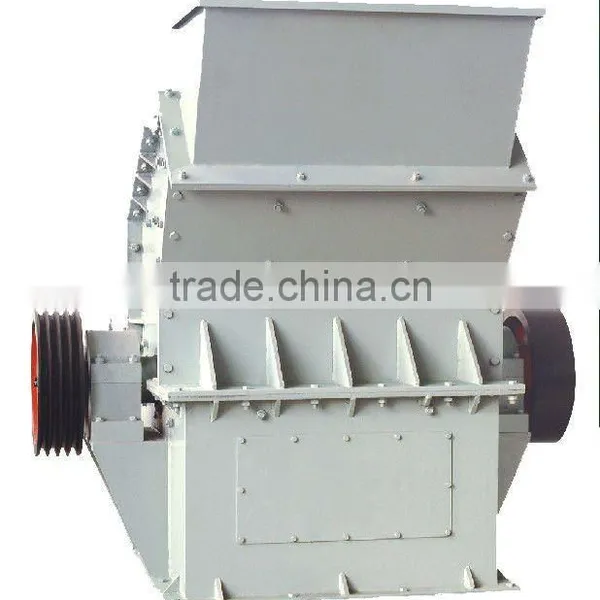

Top quality chrome ore impact crusher
1 Introduction of Hammer Crusher:
The series of hammer crushers breaks the materials by the collision the high-speed rotating hammer block and the colliding surface of the materials. It is a kind of crusher which can break the materials with max particle size of 600-18000mm into the materials with 25mm or below 25mm.
2. The application of Hammer crusher :
Stone crusher is ideally suitable for primary and secondary crushing, with low power consumption and easy maintenance. The jaw crusher are widely used for crushing various materials like stone ,granite ,trap rock , coal ,manganese ore ,iron ore ,fuse aluminum ,oxide ,etc .These crushers are recommended by consultants in this field and are used by hundreds of customers all over the world.
3. Features of Hammer crusher :
* The crushing equipment is suitable for crushing maximum ,medium, and minimum stones
* Reasonable structure, reliable working, easy maintenance, convenient and economical operations;
* It possesses big adjustable range and can meet different requirements of customers;
* The crushing compressive strength of the different kinds of materials should not be in excess of 350 Mpa;
* The jaw crusher adopts the design of dent form jaw plate and complex stroke, and the crushing efficiency is high;
* Low noise and less stone dust
4.Main Technical Parameters:
| Model | Max feed size (mm) | Max output size (mm) | Capacity(t/h) | Motor | Rotor speed (r/min) | Overall dimension (mm) | Weight (t) |
| PC400*300 | 80 | 10 | 5-8 | Y160M-4-11 | 1200 | 812*982*785 | 0.7 |
| PC600*400 | 100 | 15 | 10-15 | Y180M-4-18.5 | 1000 | 1200*1114*1114 | 105 |
| PC800*600 | 120 | 15 | 20-25 | Y280M-6-55 | 980 | 2620*1864*1340 | 3.7 |
| PC1000*800 | 200 | 45 | 34-54 | YR315S-6-110 | 980 | 3574*2250*1515 | 6.5 |
| PC1000*1000 | 200 | 15 | 40-60 | Y315L-6-132 | 1000 | 3514*2210*1515 | 7.6 |
| PC1200*1000 | 200 | 25 | 75-150 | Y315L-4-160 | 745 | 2550*2400*2630 | 12.5 |
| PC1200*1200 | 200 | 20 | 80-160 | Y355M-6-185 | 745 | 2550*2600*2630 | 14 |
| PC1400*1400 | 250 | 20 | 120-170 | JR138-8-D-280 | 750 | 2790*2800*2310 | 17.2 |
