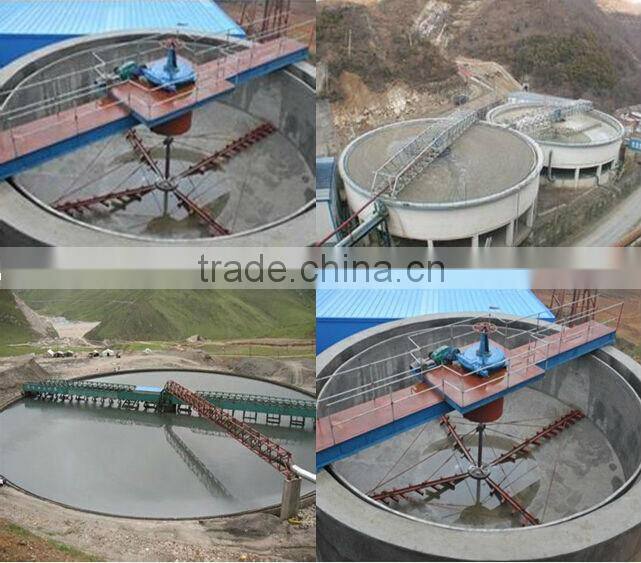

Mineral ore thickener equipment for zinc&lead beneficiation plant :
A thickener is a large circular tank that is used to settle out the solid material from the water in the feed slurry.It is widely used for dealing with slime, wastewater, waste residue in metallurgy, mine, coal, petrochemical industry, building materials, environmental protection department etc. center typr driving thickener
thickener application:
It is widely used for dealing with slime, wastewater, waste residue in metallurgy, mine, coal, petrochemical industry, building materials, environmental protection department etc. Actually, thickeners simply concentrate the solids, achieving underflow solids densities from 20% solids to 50% solids.
thickener structure:

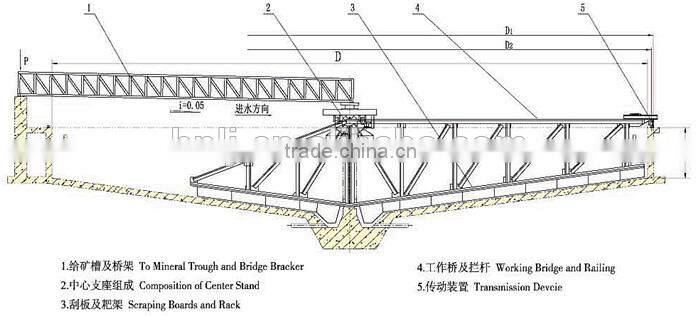

This thickener consists of round thickener and harrow scrapping machine, the solid particles suspend in thickener settling by gravity, the pulp in the upper turn into clean water, so that the separation can be realized. Slime that sediment in the bottom of the thickener is discharged by the harrow scrapping continuously, and clean overflow from the upside.
thickener main technical parameters:
Model | D of the tank | Depth of the tank | Sedimental area | capacity | Motor model | Motor power | Weight of the tank | weight |
NZSG-2.5 | 2500 | 1850 | 4.9 | 5-10.8 | Y90L-6 | 1.1 | 1000 | 2225 |
NZSG-3A | 3000 | 1800 | 7 | 5-23.3 | Y100L-6 | 1.5 | 1664 | 3168 |
NZSG-3 | 3600 | 10.2 | 5-28.5 | 2097 | 3640 | |||
NZSG-5 | 5000 | 2956 | 16 | 16-90 | Y90L-4 | 5160 | 8031 | |
NZSG-6 | 6000 | 28.3 | 98 | 5769 | 9200 | |||
NZSG-7 | 7000 | 3000 | 38.5 | 140 | Y112M-6 | 2.2 | 8548 | 13361 |
NZSG-8 | 8000 | 3318 | 50.2 | 185 | Y132S-6 | 3 | 12966 | 19289 |
NZSG-9 | 9000 | 3376 | 63 | 210 | 15304 | 21960 | ||
NZSG-12 | 12000 | 3600 | 113 | 370 | 25389 | 34823 | ||
NZSG-15 | 15000 | 4000 | 176 | 580 | Y132(M2)-6 | 5.5 | 35800 | 58800 |
NZSG-18 | 18000 | 4400 | 255 | 960 | YCT200-413 | 7.5 | 49694 | 65992 |
NZSG-20 | 20000 | 4400 | 315 | 1400 | Y160(M2)-8 | 59365 | 81238 |
by standard container,small parts by wooden box.or by bulk cargo.
1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.
