Home > Manufacturing & Processing Machinery > Mining Machinery > Mineral Separator > Mineral Ore Spiral Classifier
US$ 8,000 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Sprial Separator
Production Capacity:
65-1400t/d
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fiberglass Spiral Chute for Gold Ore Gravity Separation PlantUS$ 200 - 400MOQ: 1 Set -
Gold Ore Mining Plant Spiral Chute Separator With Low PriceUS$ 800 - 1,000MOQ: 1 Set
-
Gold Ore Mining Plant Spiral ChuteUS$ 200 - 400MOQ: 1 Set
-
High Efficiency Spiral Sand Classifier With Low PriceUS$ 8,000 - 80,000MOQ: 1 Set
-
High Efficiency Spiral Sand Classifier for Gold Ore Washing PlantUS$ 8,000 - 80,000MOQ: 1 Set
Condition
New
Type
Sprial Separator
Production Capacity
65-1400t/d
Place of Origin
Henan, China
Brand Name
Lanji
Model Number
FG7.5-FG3.0
Voltage
refer to specification
Power(W)
refer to specification
Dimension(L*W*H)
all
Weight
all
Certification
ISO
Warranty
1year, one year excluding wearing parts
After-sales Service Provided
Engineers available to service machinery overseas

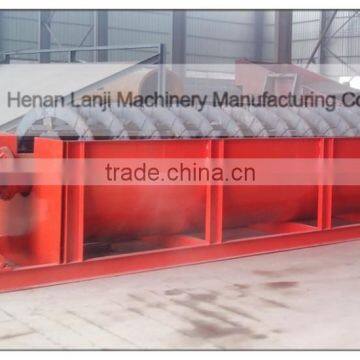

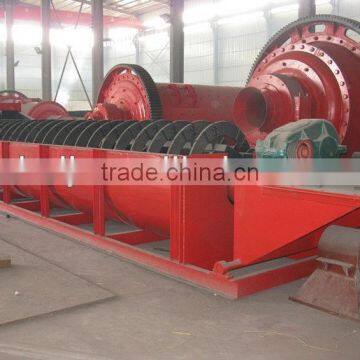

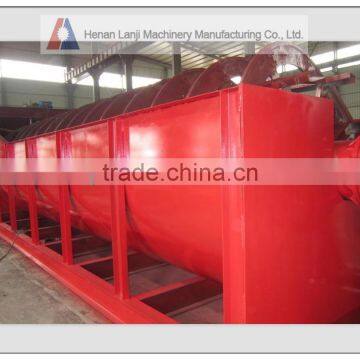

New mineral processing spiral classifier for sale
Mineral Spiral classifier Application:
Spiral Classifiers are widely used in the distribution of ore in closed circuits with ball mill in mining processing, in order to get a certain degree fineness of ore particles, meanwhile increasing the efficiency of grinding. This machine can also be used to wash sand,classify ore sand and play other functions. This product features simple structure, reliable working conditions and convenient operation.
Mineral Spiral classifier Feature:
1. Adjustable weirs
2. Sealed, submerged bearing
3. Optional automatic lubrication system
4. Rigid tank and substructure
5. Wide choice of tank design
6. Overflow collection box
7. Wide range of industries serviced
Technical data of mineral spiral classifier:
| Model
| Specification | Spiral Diameter(mm) | Water trough length(mm)
| Spiral speed(r/min) | Capacity
| Motor Power(kw)
| Weight(t) | ||
| Return sand | Overflow
| Drive | Upgrade | ||||||
| High Weir Spiral Classifier
submerged spiral classifier | FG7.5 | 750 | 5500 | 6~10 | 340~570 | 65 | 3.0 | manually operation
| 2.7 |
| FG10 | 1000 | 6500 | 5.0~8.0 | 675~1080 | 110 | 5.5 | manuallyoperation | 4.43 | |
| FG12 | 1200 | 6500 | 5.0~8.0 | 1170~1870 | 155 | 5.5 | 1.5 | 8.7 | |
| FG15 | 1500 | 8400 | 4.0~6.0 | 1830~2740 | 235 | 7.5 | 2.2 | 12.5 | |
| FG20 | 2000 | 8400 | 4.0~6.0 | 3240~5400 | 400 | 11 | 2.8 | 20.5 | |
| FG24 | 2400 | 9210 | 3.6 | 4650~7450 | 580 | 15 | 3.0 | 25.6 | |
| FG30 | 3000 | 1250 | 3.0 | 11625 | 890 | 22 | 4.0 | 37.7 | |
| 2FG12 | 1200 | 6500 | 5.0~8.0 | 2340~3740 | 310 | 5.5*2 | 1.5*2 | 14.0 | |
| 2FG15 | 1500 | 8400 | 4~6.0 | 3660~5480 | 470 | 7.5*2 | 1.5*2 | 21.1 | |
| 2FG20 | 2000 | 8400 | 3.0~5.5 | 7780~11880 | 800 | 11*2 | 2.8*2 | 36.5 | |
| 2FG24 | 2400 | 9210 | 3.6 | 13600 | 1160 | 15*2 | 3*2 | 46.8 | |
| 2FG30 | 3000 | 12500 | 2.0~3.2 | 14600~23400 | 1785 | 22*2 | 4*2 | 73.0 | |
| FC12 | 1200 | 8400 | 5~8 | 1170~1870 | 120 | 7.5 | 2.2 | 10.4 | |
| FC15 | 1500 | 10500 | 4.0~6.0 | 1830~2740 | 185 | 7.5 | 2.2 | 16.8 | |
| FC20 | 2000 | 12900 | 2.0~5.5 | 3895~5940 | 320 | 15 | 2.8 | 29.1 | |
| FC24 | 2400 | 14200 | 2.5~4.0 | 4650~7450 | 455 | 18.5 | 4 | 41.0 | |
| FC30 | 3000 | 14300 | 3.2 | 11625 | 705 | 30 | 4 | 56.8 | |
| 2FC15 | 1500 | 10500 | 4.0~60 | 2280~5480 | 370 | 7.5*2 | 1.5*2 | 30.7 | |
| 2FC20 | 2000 | 12900 | 3.0~5.5 | 6480~11800 | 640 | 11*2 | 3*2 | 50.0 | |
| 2FC24 | 2400 | 14200 | 3.67 | 9300~14900 | 910 | 18.5*2 | 4*2 | 67.9 | |
| 2FC30 | 3000 | 14300 | 3.2 | 23300 | 1400 | 30*2 | 4*2 | 85.3 | |
