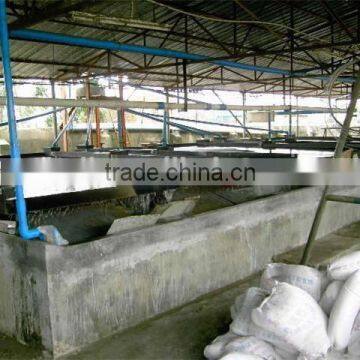

Alluvial Sand Gold Mining Concentration Plant Shaking Table
1. alluvial shaking table application:
2)Low water-absorptivity.does not increase height
3)Good wearability of the work surface.
4)Anti-chemical corrosion,acid do not avoid medicament in ore polp.
5)Good weather resistenance,good shape stablity;
6)Good selection function,good index stability.
3. Working principle of alluvial gold shaking table:
During the benificiation process,the mineral particles from the angle above the bed surface go to the slot,meanwhile by feedthrough fiashing water transversely.In this way,under the effect of gravity,the transverse direction running water impulsive force,and the inertia and friction created by the reciprocation symmetry of movement of the bed sueface,the ore grains are separated according to the proportion and the granularity,and makes the transversal motion along the inclined surface of bed.Therefore the ore grains with different proportion and different granularity fly heading different direction,and discharge separately from the ore concentrate end and the debris side’s two different areas,finally divided into the ore concentrate,the middling and the debris
4. alluvial gold shaking table main technical parameters:
Item | LS<6-s> | Ys |
Bed structure | Polyester glass steel , embedded skeletons composite structure | Polyester glass steel. embedded skeletons composite structure |
Bed specification | 150-1850x4500mm | 150-1850x4500mm |
Sorting area | 7.5m2 | 7.5m2 |
Bed direction | The left-right | The left-right |
Landscape angle(°) | 0-5 | 0-5 |
Stroke | 10-30mm | 8-22mm |
Times(times/min) | 240-360 | 240-360 |
Size of material selected | Grit 2-0.5mm,fine sand 0.5-0.074mm,pulp 0.074mm | Grit 2-0.5mm,fine sand 0.5-0.074mm,pulp 0.074mm |
Motor power | 1.1kw | 1.1kw |
5.Gold ore shaking table structure:
