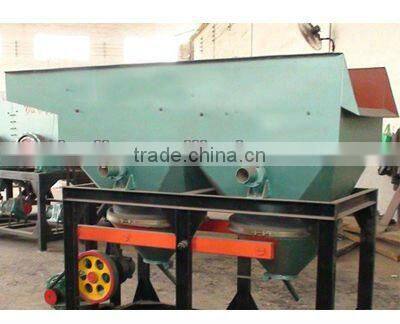

Gold gravity separation jigger machine:
Jigger machine belongs to gravity-based equipments, which can separate mineral based on differing of specific gravity. It is mainly applicable to separate the minerals of high contrast of density such as wolfram , iron ore , manganese minerals , chromium minerals , stannum , rare metal, non-ferrous metallic substance consisting of gold , and black metallic .
Jiiger machine working principle:
Sawtooth wave jig is revised and manufactured, based on the stratified theory and the adequate analysis of other conventional jigs. The jigging pulsation curve----produced by sawtooth wave jig----is in the shape of sawtooth wave which makes upward water flow quicker than downward water flow. The feature that upward time is shorter than downward time solves the problem that time and action of upward/downward water flows. This breakthrough dramatically amplifies the loose degree and mitigates suction action, which facilitates precipitation of coarse ores and improves ore recovery rate.
Jigger machine main technical parameters:
Model |
Chamber |
Feeding Size mm |
Water added m3 /T |
Pressure of water Mpa |
Processing capacity t/h |
Motor power kw |
Dimension
mm |
Weight
Kg |
|
shape |
Area m2 |
||||||||
JT0.57-1 |
Ladder |
0.57 |
6 |
1-3 |
≥0.5 |
1-2.5 |
1.5 |
1550×780×1530 |
610 |
JT1-1 |
Ladder |
1.04 |
10 |
1-3 |
2-4 |
2.2 |
2270×1110×1890 |
900 |
|
JT2-2 |
Rect |
2.28 |
10 |
1-3 |
4-8 |
3 |
3225×1550×2050 |
1640 |
|
JT3-1 |
Ladder |
3.3 |
10 |
1-3 |
≥0.5 |
6-10 |
5.5 |
3180×2000×2600 |
3260 |
JT5-2 |
Ladder |
4.86 |
10 |
1-3 |
10-15 |
7.5 |
3600×2000×2600 |
4500 |
|
JT1.5-2 |
Rect |
1.53 |
30 |
1-2 |
≥0.5 |
5-8 |
3 |
3200×1550×2050 |
1520 |
JT4-2 |
Rect |
4.33 |
30 |
1-2 |
10-15 |
7.5 |
3600×1850×2600 |
4600 |
|
