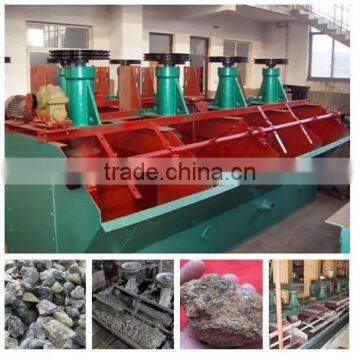

Mechanical type gold tailings flotation machine 0.37-8cubic meter :
Every cell owns three functions: Air absorption, slurry absorption, and floatation separation, and the cells form a floatation separation loop by itself without any auxiliary equipment, and is allocated horizontally, which favors the change of flow. The circulation of mineral slurry is reasonable, and can avoid the disposition of coarse sand to the largest extent. There is self-control device on the surface of mineral slurry, so it is easy to adjust it. The impeller has backward-inclined upper and lower vanes, which produce upper and lower circulation of mineral slurry respectively.
1. Application of Flotation Machine:
SF Flotation Machine is applicable for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to coarse separation, swept separation, fine separation and floatation, so the useful ore are reclaimed.the flotation machine will add chemicals to achieve the flotation separating efficiency.
2. The main features of Flotation Machine:
Compared to ordinary flotator, the SF Flotation Machine has the following advantages:
(1)Improve quality grade up to 4-6%
(2)Improve the recovery rate up to 8%
(3)Improve yield up to 12%
3.Flotation machine main structure:
4.Flotation machine working principle:
The impeller is rotated by V-belt of motor and produces negative pressure by centrifugal function. Enough air is sucked to mix slurry, and slurry mixes drug at the same time. Mineral sticks on bubble completely and floats on the surface of slurry to form mineralized bubble. Useful bubble is scraped out by adjusting flashboard height and controlling liquid surface.
5. Main technical parameters for flotation machine:
Model | SF0.37 | SF0.7 | SF1.2 | SF2.8 | SF4 | SF8 | |
Trough capacity(m²) | 0.37 | 0.7 | 1.2 | 2.8 | 4 | 8 | |
Blade diameter(mm) | 300 | 350 | 450 | 550 | 650 | 760 | |
Production capacity(m²/min) | 0.2-0.4 | 0.3-0.9 | 0.6-1.2 | 1.5-3.5 | 0.5-4 | 4-8 | |
Blade rotation speed(r/min) | 352 | 400 | 312 | 268 | 238 | 191 | |
Motor |
Model | Y90L-4 | Y100L-4 | Y132M-6 | Y160L-6 | Y180L-6 | Y250M-8 |
Y90S-4 | Y90S-4 | Y90S-4 | Y90S-4 | Y90L-4 | Y100L-6 | ||
Power(kw) | 1.5 | 3 | 5.5 | 11 | 15 | 30 | |
1.1 | 1.1 | 1.1 | 1.1 | 1.5 | 1.5 | ||
Dimension(mm) | 700×700×750 | 900×820×950 | 1100×1100×1100 | 1700×1600×1150 | 1850×2050×1200 | 200×2900×1400 | |
Single trough weight | 468 | 600 | 1373 | 2338 | 2660 | 4130 | |
