Mining Hydrocyclone Gragind Equipment

Mining Hydrocyclone Gragind Equipment thumbnail-1
Mining Hydrocyclone Gragind Equipment thumbnail-2

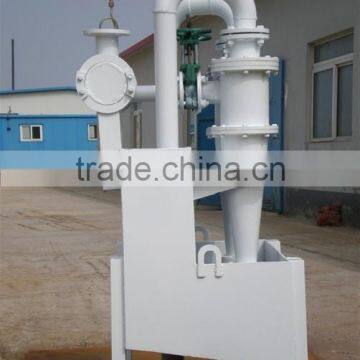

Mining Hydrocyclone Gragind Equipment photo-1

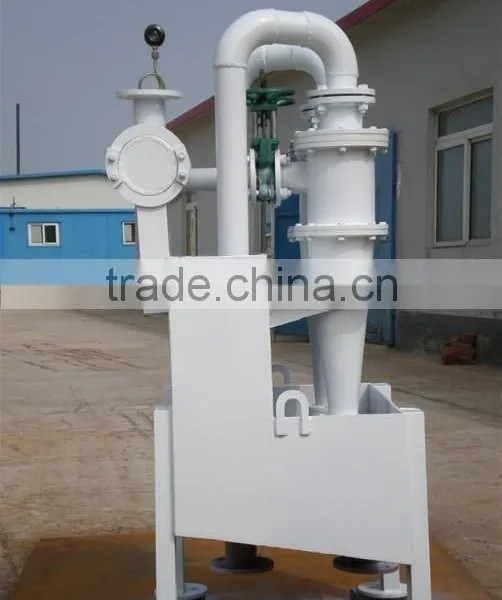

Mining Hydrocyclone Gragind Equipment photo-2
US$ 50 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Gravity Separator
Production Capacity:
according to models
Contact Supplier Request Quote Chat Now
Henan Lanji Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Gravity Separator
Production Capacity according to models
Place of Origin Henan, China
Brand Name LanJi
Model Number dia1.5-7.0
Voltage 220/380/420V
Power(W) according to models
Dimension(L*W*H) according to models
Weight refer to specification
Certification ISO
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas



Product Description

 Hydrocyclone:

1,simple structure, convenient installation and operation

2,widely used, good wear-resistance, long service life and high efficiency

3,strong disposal ability, low operation cost and high classification precision

Mining hydrocyclone gragind equipment:

Hydrocyclone equipment developed  with an advanced international level. The liners of hydrocyclone unitare made of iabrasion resistant rubber. In addition, abrasion resistant rubber is also used in the inner box and pipelines to extend the service life. The valve operate well without resistance. And a small size of valve reduces the diameter of the cyclone unit.



Features of hydrocyclone equipment:



1. hydrocyclone unit has strong processing capacity and high classification efficiency.

2. hydrocyclone unit is equipped with a computational selection software to better simulate the operation and ensure the relevant parameters. Finally, the optimal model will be chosen for customers.

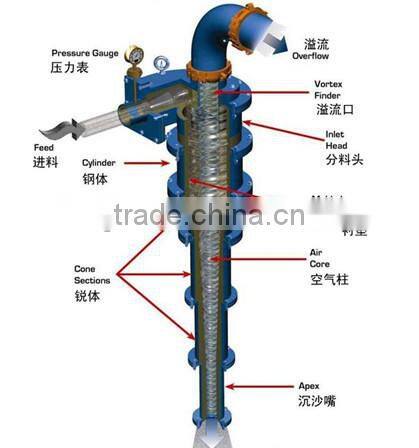

Working Principle of hydrocyclone equipment:



 hydrocyclone unit is used for classification with the centrifugal sedimentation as its working principle. When the two-phase or three-phase mixed with liquor is fed into hydrocyclone through feeding opening, the mixture does three-dimensional and oval and strong rotating and tangent cyclone motion. Considering differences of density between fine and coarse ores, coarse ores spirally rotate to be discharged from the underflow outlet, while the majority of fine particles are up to be discharged from overflow outlet.

Mining hydrocyclone gragind equipment

 Hydrocyclone technical parameters:




(mm)		 (o) (mm) (mm) (mm) (Mpa)
(m3/h)		 (um)   (Kg)
(mm) (mm) (mm)
FX660 660 20 180~240 80~150 16 0.03-0.2 250~350 74-220 1140 1110 2635 990
FX610  610 20  170~220  75~120  13   0.03~0.2 200~300  74~220  1075  1030  2250  830
FX500 500 20 130~200 35~100 10 0.03~0.3 140~220 74~200 895 830 2050 495
15 74~150 895 830 2380 540
FX350 350 20 80~120 30~70 6 0.04~0.3 60~100 50~150 775 605 1765 220
15 50~120 775 605 2115 235
FX300 300 20 65~115 20~50 5 0.04~0.3 45~85 50~150 550 480 1415 108
15 40~100 550 480 1670 169
FX250 250 20 60~100 16~45 3 0.06~0.35 40~60 40~100 490 415 1215 79
15 40~100 490 415 1430 84
10 30~100 490 415 1850 92
FX200 200 20 40~65 16~32 2 0.06~0.35 25~40 40~100 400 365 1030 54
15 30~100 400 365 1200 59
10 30~100 400 365 1530 66
FX150 150 20 30~45 8~22 1.5 0.06~0.35 11~20 30~74 310 310 820 32
15 30~74 310 310 920 36
8 30~74 310 310 1400 42
FX125 125 17 25~40 8~18 1 0.06~0.35 8~15 20~100 210 185 620 10
8 20~74 250 240 985 12
FX100 100 20 20~40 8~18 1 0.06~0.35 5~12 20~100 260 210 525 8
15 20~100 268 215 720 13
8 20~100 268 215 1045 30
FX75 75 15 15~22 6~12 0.6 0.1~0.4 2~5 20~74 240 230 465 4.2
6 5~40 240 230 800 7
FX50 50 15 11~16 3~8 0.3 0.1~0.4 1~2 10~74 160 155 350 2
6 5~30 160 155 590 2.5

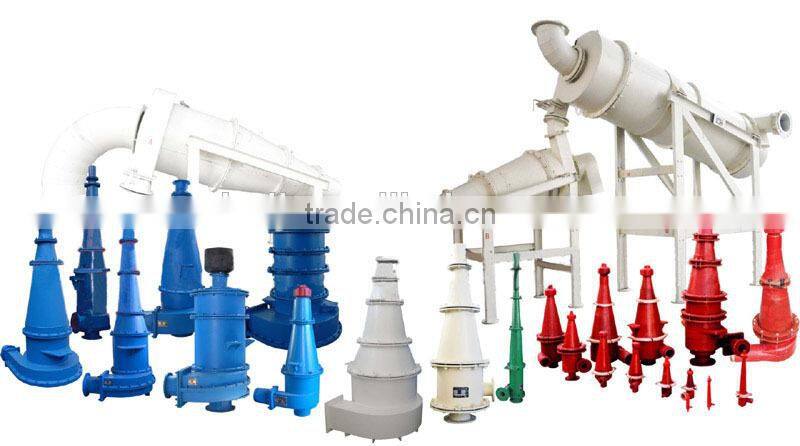

 Mining hydrocyclone gragind equipment

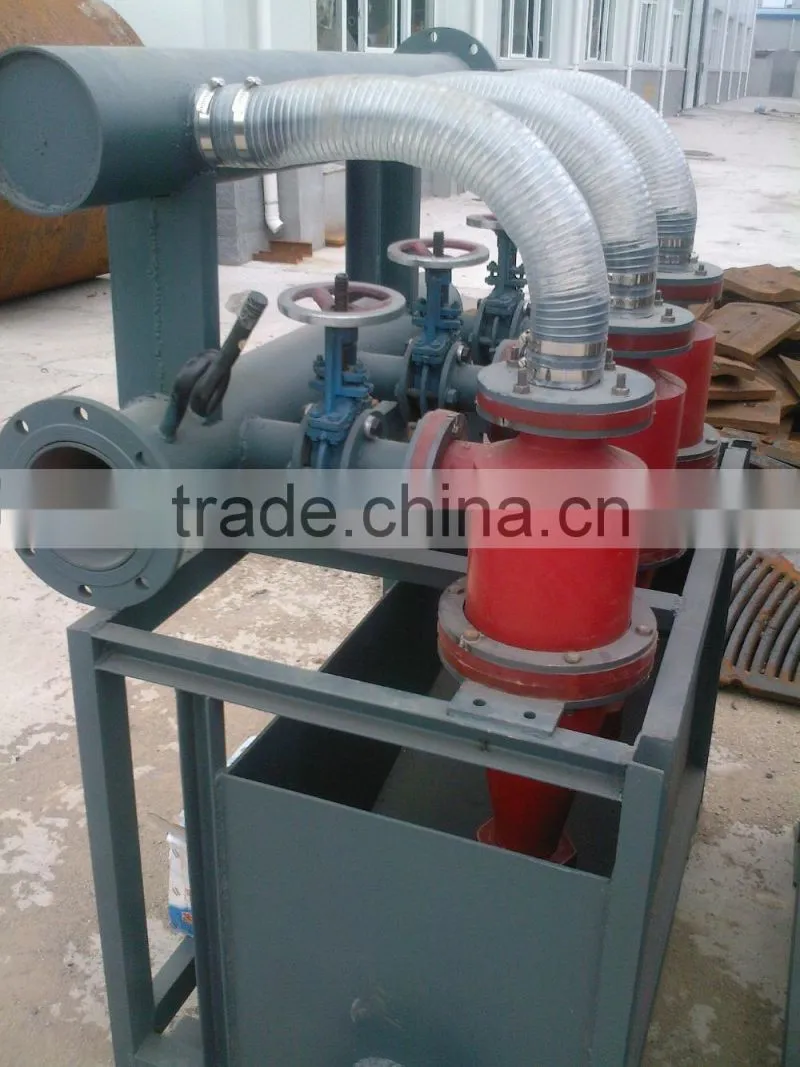

 Mining hydrocyclone gragind equipment
