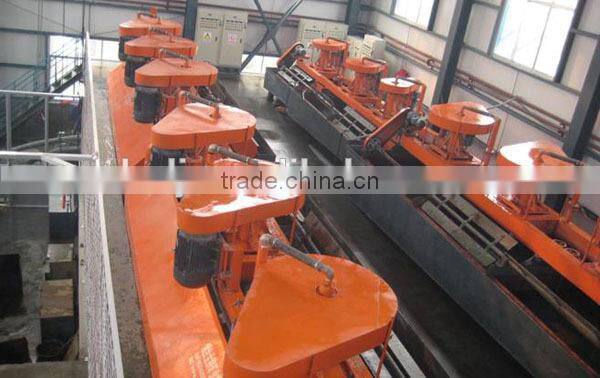

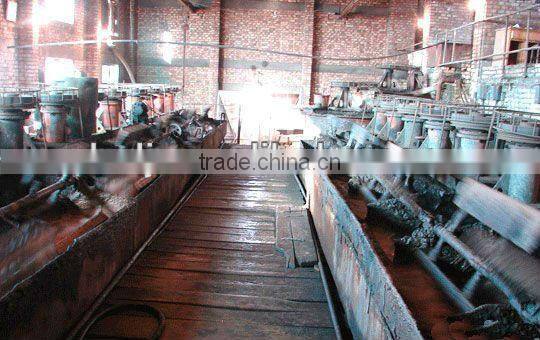

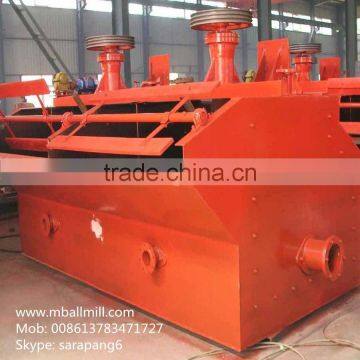

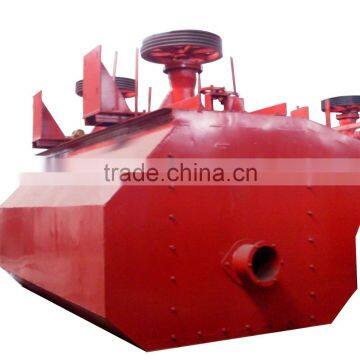

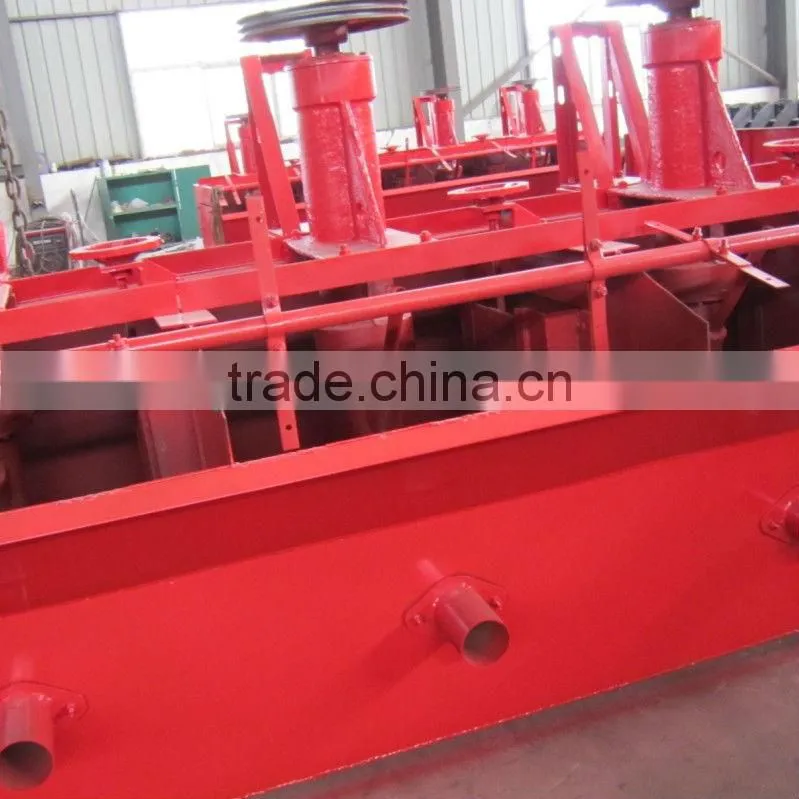

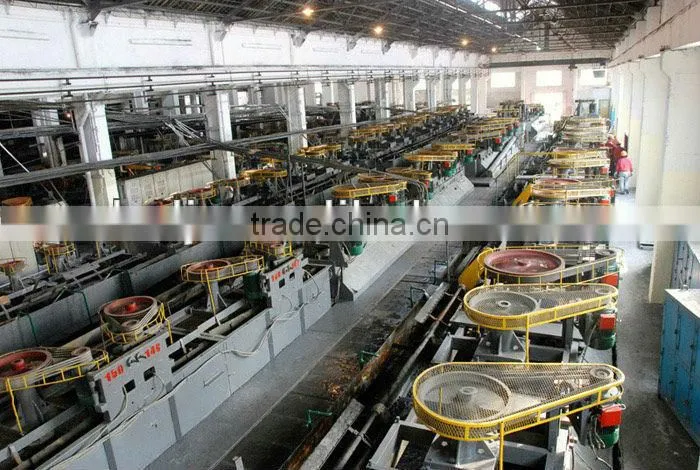

Reliable performance gold Flotation Machine with nice price direct on selling
1. Application of SF Flotation cell:
SF Flotation Machine is applicable for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to coarse separation, swept separation, fine separation and floatation, so the useful ore are reclaimed.
2. The main features of SF Flotation cell:
Compared to ordinary flotator, the SF Flotation Machine has the following advantages:
(1)Improve quality grade up to 4-6%
(2)Improve the recovery rate up to 8%
(3)Improve yield up to 12%
3. Main technical parameters for SF flotation cell:
Model | SF0.37 | SF0.7 | SF1.2 | SF2.8 | SF4 | SF8 | |
Trough capacity(m²) | 0.37 | 0.7 | 1.2 | 2.8 | 4 | 8 | |
Blade diameter(mm) | 300 | 350 | 450 | 550 | 650 | 760 | |
Production capacity(m²/min) | 0.2-0.4 | 0.3-0.9 | 0.6-1.2 | 1.5-3.5 | 0.5-4 | 4-8 | |
Blade rotation speed(r/min) | 352 | 400 | 312 | 268 | 238 | 191 | |
Motor |
Model | Y90L-4 | Y100L-4 | Y132M-6 | Y160L-6 | Y180L-6 | Y250M-8 |
Y90S-4 | Y90S-4 | Y90S-4 | Y90S-4 | Y90L-4 | Y100L-6 | ||
Power(kw) | 1.5 | 3 | 5.5 | 11 | 15 | 30 | |
1.1 | 1.1 | 1.1 | 1.1 | 1.5 | 1.5 | ||
Dimension(mm) | 700×700×750 | 900×820×950 | 1100×1100×1100 | 1700×1600×1150 | 1850×2050×1200 | 200×2900×1400 | |
Single trough weight | 468 | 600 | 1373 | 2338 | 2660 | 4130 | |
Model | Valid volume m3/slot | Impeller diameter (mm) | Capacity (m3/min) | Impeller rotation speed (r/min) | Scraper rotation speed (r/min) | Motor | Dimension 4-slot machine (mm) | Weight t/slot | |
Model | Power (kw) | ||||||||
XJK-0.13 | 0.13 | 200 | 0.05-0.16 | 600 | 17.5 | Y90L-4 | 1.5 | 2100865900 | 0.35 |
XJK-0.23 | 0.23 | 250 | 0.12-0.28 | 500 | 17.5 | Y90L-4 | 1.5 | 262511301290 | 0.41 |
XJK-0.35 | 0.35 | 300 | 0.15-0.5 | 470 | 17.5 | Y100L1-4 | 2.2 | 301213501320 | 0.45 |
XJK-0.62 | 0.62 | 350 | 0.3-0.9 | 400 | 16 | Y100L2-4 | 3 | 380015001550 | 0.85 |
XJK-1.1 | 1.1 | 500 | 0.6-1. 6 | 330 | 26 | Y132M-6 | 5.5 | 468018201950 | 1.4 |
XJK-2.8 | 2.8 | 600 | 1.5-3.5 | 280 | 26 | Y160L-6 | 11 | 775026002700 | 2.43 |
Thanks so much for you taking time to browse gold flotation machine. Any further questions, please feel free to contact us and we are ready to so service for you!
