Gravity Jigging Machine:
1) water-recycling & low power
2) semi-automatic & easy to operate
3) continuous working & environment-friendly
4) quality & service-guaranteed
5) seaworthy & durable

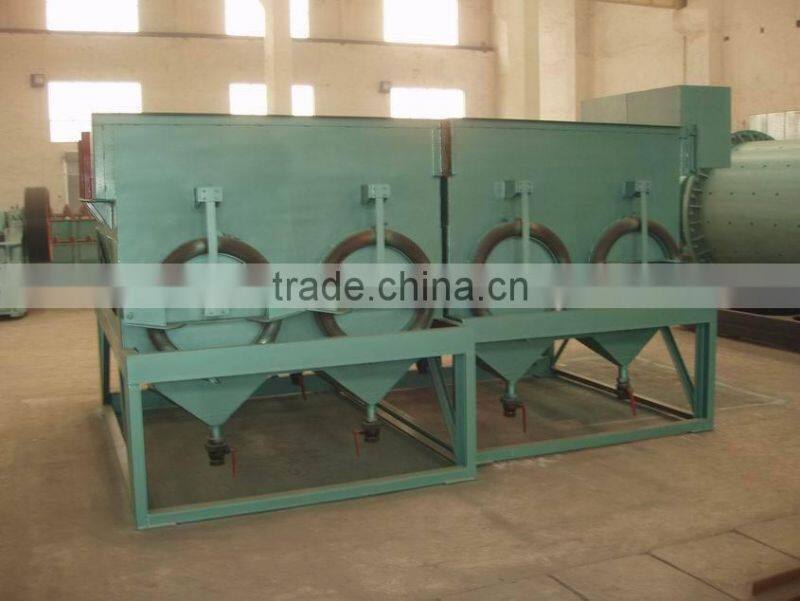

Gravity Jigging Machine For Manganese Ore
Illustration:
Saw-tooth-wave jigger of JT series is driven by saw-tooth wave and works by rising up and down water-stream
uniformity & serrated. It works greatly for ore/slag material of thin granularity size. It is widely used
in beneficiation of kinds of metal & non-metals & smelting slag like tungsten, tin, gold, iron, manganese, titanium,
chromium, sulfur, silica-manganese slag, ferro-manganese slag, ferro-nickel slag etc.

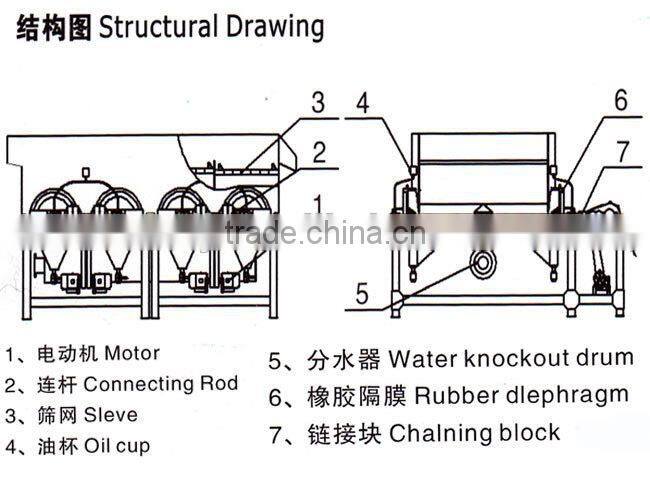

Working Principle:
JT jigger is kind of down-moving saw-tooth-wave jigger. Magnetic reduce motor drives the saw-tooth-wave producer
to make different-heart movement through the cam. And the adjustment device will be driven to do alternate motion
to make hypocentrum produce the regulation motion to squeeze the water in box move. The water-flow moving
goes through the screen to dash the bed stones and the ore to move along parabola. Then the ore will be fed
at the feeding port. The dropping speed differs for materials with different density to form different layers naturally.
The light material will be discharged by the dashing of water while the heavy material will go down through
the bed stones to the hypocentrum. Finally, the concentrate will be discharged to finish the jigging.
jigging machine technical parameters:
Model | Stroke Coefficient | Stroke (mm) | Stroke Frequency (times/min) | Feeding Size (mm) | Handling Capacity (t/h) | Water Consumption (t/h) | Power (kw) |
JT1070/2 | 0.5 | 0-12 | 0-170 | 8 | 6-8 | 5-40 | 2.2 |
JT1515/2 | 0.47 | 0-25 | 0-150 | 10 | 15-30 | 30-120 | 4*2 |
JT2020/2 | 0.4 | 0-20 | 0-130 | 10 | 30-50 | 60-180 | 5.5*2 |
| Model | Section Form | Column No. | Jigging Chamber No. | Jigging Area (square meters) | Stroke Coefficient | Stroke (mm) | Stroke Frequency (times/min) | Handling Capacity (T/h) | Power (KW) |
| 2LTC366/8T | Trapezoid | 2 | 8 | 2.16 | 0.68-0.41 | 0-50 | 120-300 | 3-6 | 1.1*2 |
| 2LTC6109/8T | Trapezoid | 2 | 8 | 5.76 | 0.52-0.35 | 0-50 | 120-300 | 20-30 | 1.5*4 |
Gravity jigging Machine Features:
1. large feeding size, 2. ;arge capability 3. high gold recovery
Working site:
request the basic details like: 1:gold type 2: feeding size: how many millimeter: capability : tons per hr to suggest the suitable gold machines with process flwochart design .
Contact details:
Name: Ms Sara Pang
Mobile phone(whatsapp):008613783471727
Skype: sarapang6
Wechat: sarapang
website:
