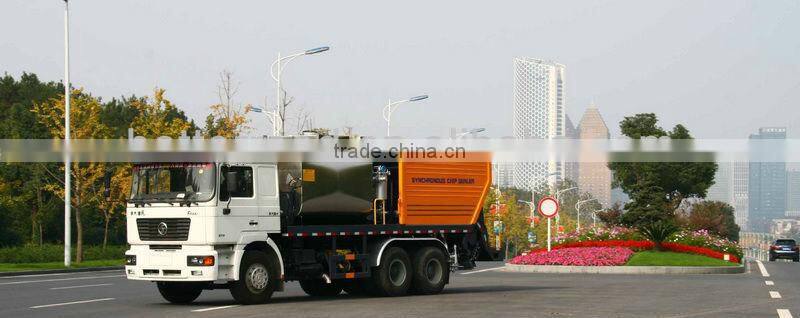

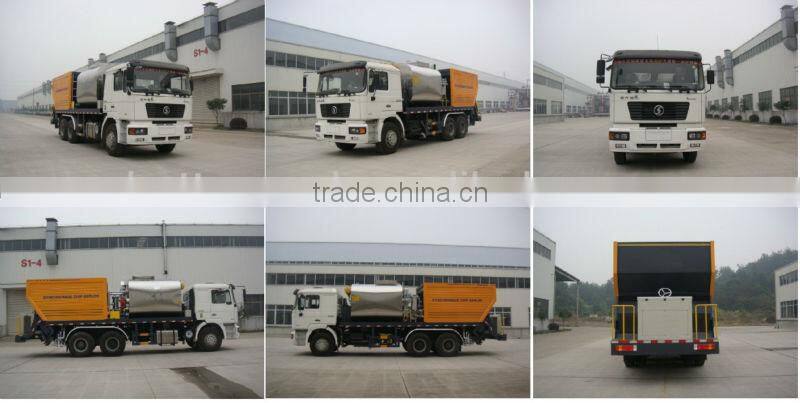

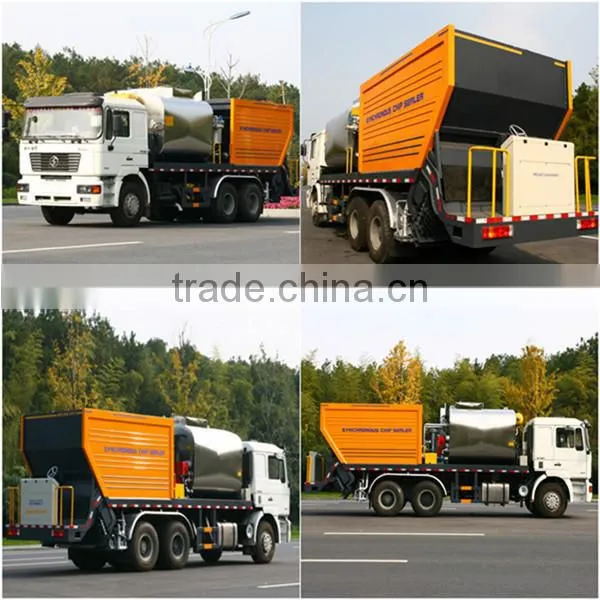

SYNCHRONOUS CHIP SEALER
This is a new generation of asphalt and stone crushing synchronous seal paver with the latest scientific and technological achievements of ICOM Machinery. The appearance of the synchronous vehicle breaks through that of traditional pavement construction vehicle. Structure and coating are more high-end and practical. The construction operation is more convenient and quick for the construction personnel.

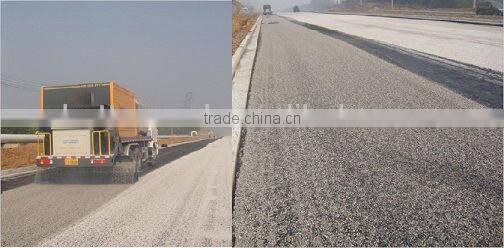

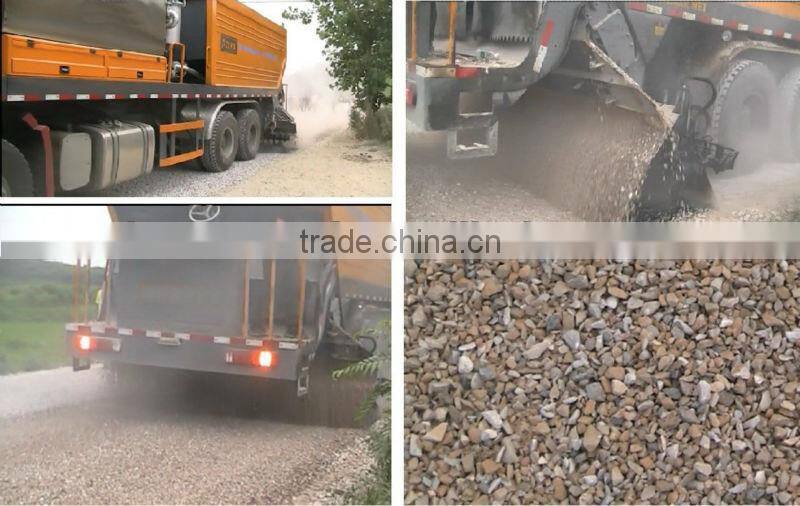

Construction efficiency has been greatly improved. After long-term technology research of ICOM people, uneven spreading of stone chips of domestic similar products, clear strip in the middle of the road, few stone chips on both sides and other defects have been effectively corrected. Spreading uniformity of stone chips is improved and spreading width of stone chips is effectively guaranteed. The vehicle can be widely used in synchronous seal operation of each grade of highway. It is cost-saving, wear-resisting, anti-skidding and waterproof. After construction traffic can be quickly restored. It is suitable for waterproof of road surface and bridge deck, crushed stone seal technology of the lower seal coat and pavement maintenance and repairing.
Mass parameter: | ||||
Kerb Weight(kg) | 15670 | Total Weight(kg) | 25000 | |
Rated loading Weight(kg) | 9200 | Dimension(mm) | 10210×2495 ×3450 | |
Chassis Parameter: | ||||
Chassis Model | SX1255JM434 | Tyre model | 12.00R20 | |
Wheelbase (mm) | 4325+1350 | Tread (mm) | 2035/1800 | |
Front Overhang(mm) | 1525 | Rear Overhang(mm) | 2800 | |
Approach angle,Departure angle | 30°/15° | Minimum Ground Clearance (mm) | 250 | |
Engine parameter: | ||||
Engine model | WP10.270N | Manufacturer | Weichai Power Co. , Ltd | |
Max.Power(kw) | 199 | Max. Torque(N.m) | / | |
Fuel | Diesel | Displacement(ml) | 9726 | |

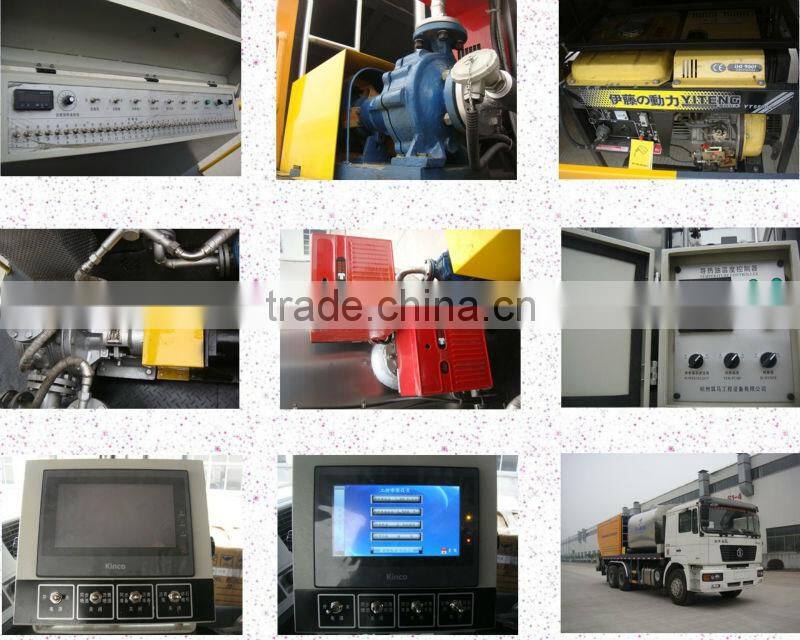

Chip sealer specification: | ||||
Tank Capacity(m³) | 6 | Chippings Capacity(m³) | 10 | |
Hydraulic pump model | CBQ-F563 | Spray width | 3500mm | |
Hydraulic motoe | L2F63W2P2(LIYUAN) | Spray Value | 0.5-3.0(Kg) | |
Controller | ZM-3D | Insulation Thickness | 50mm | |
Generator(Converter) | YT6800E(YITENG) | Nozzles | 28 | |
Asphalt pump | QGB450(SHANGGUI) | Burner | G20(Riello) | |
