micro surfacing emulsion pavement mix design
- 3 Unit / Units per Month
- SHANGHAI
- T/T
- ultrasonic laser paver 11 meters concrete pavement with tire barrier laser paver manufacturers
- Baoying irrigation canal slipform machine/Rectangular ditch forming machine/Trapezoidal canal slipform machine
- Baoying irrigation canal slipform machine/U-shaped canal forming machine/Rectangular groove synovial machine
- Baoying irrigation canal slipform machine/Drain forming machine/Side ditch once forming machine
- Baoying irrigation canal slipform machine/large river canal forming machine/Canal slipform machine
- Highway roadside stone forming machine Roadside stone synovial all-in-one machine
Product Details
Condition: | New | Production Capacity: | 9-12m/min | Power(W): | 97KW |
Max. Paving Thickness: | 220-300mm | Paving Width: | 2.4-4.3M | Place of Origin: | Zhejiang, China |
Brand Name: | ICOM | Model Number: | ZQZ5253TFC | Dimension(L*W*H): | 10350X2495X3400 mm |
Weight: | 15900KG | Certification: | ISSA | Warranty: | within one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

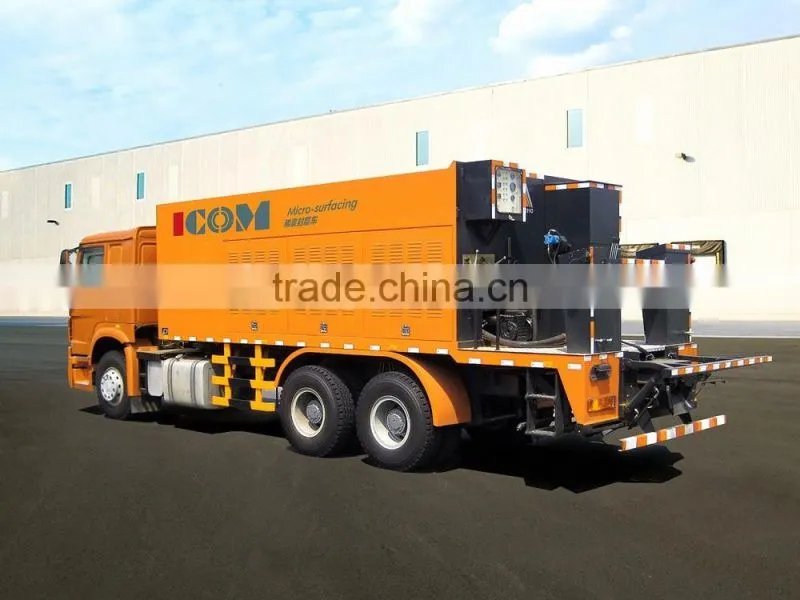

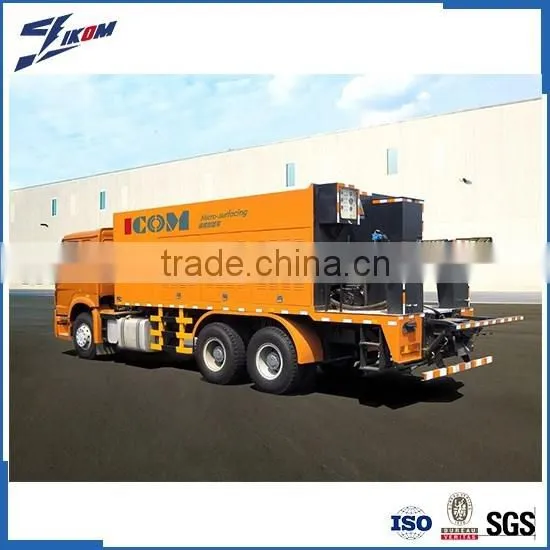

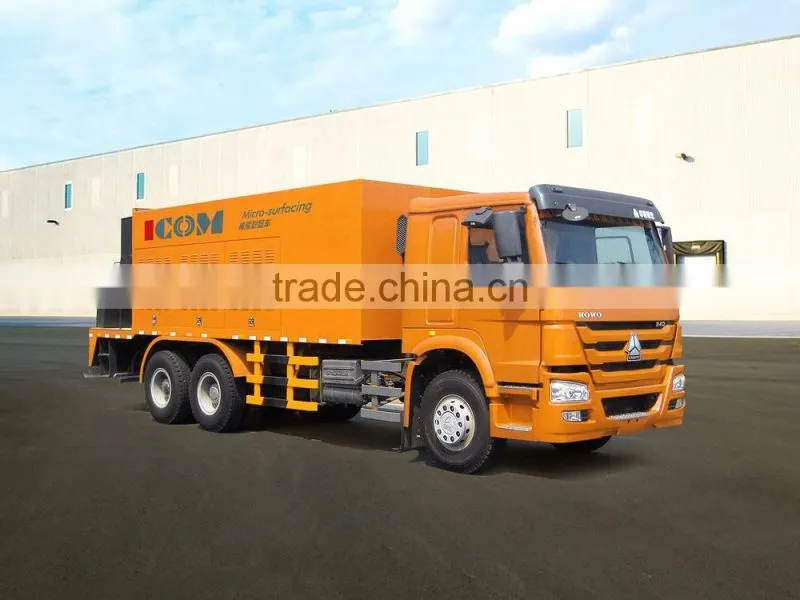

ICOM Micro surfacing machine is designed according to ISSA standard. ( ), applies all slurry and polymer-modified microsurfacings with equal ease. The ZQZ5253TFC is a proven design with convenient control locations and good operator visibility. The units are powered by a 97kw Cummins diesel engine,Italy Hydr.app hydraulic sets, Belgium Johnson asphalt pump, Bergkamp spreader box. All these excellent parts make it with good quality and performance.
(1) Double axis mixer system and atios regulate system can make water, asphalt emulsion and additive mix more accurate .
(2) Variable-speed, dual-shaft, multi-paddle pugmill with a dual hydraulic drive provides even mixture and material flow,aggregate is delivered to the pugmill by a belt-over-chain-fed conveyor to eliminate slippage
(3) Vibrating hopper walls minimize bridging problems
(4)Stainless steel additive tank and removable liquid material tanks make cleanup easier
(5) Bergkamp spreader box make the pavement more smooth.
Main Technical Parameters
Product Model | ZQZ5253TFC |
Chassis model | ZZ1257M4647C HOWO |
Emission Standard | Equal to EURO-III |
Engine Power | 196kw/1900rpm |
Aggregates Bin Volume | 10 m3 |
Emulsion Tank Volume | 3000L |
Water Tank Volume | 3000L |
Additive Tank Volume | 300 L |
Cement addictive Volume | 0.5 m3 |
Discharging Volume of Mixer | max.2000KG/min |
Minimum Vehicle Speed | 1 km/h |
Width of Paver | 2.4-4.3 m |
Overall Dimensions | 10350×2495×3400 (mm) (L × W × H) |
Key Components of the Intelligent Slurry Seal Machine
Chassis | ZZ1257M4647C HOWO |
Auxiliary Engine | Cummins |
Asphalt Pump | Belgium Johnson |
Hydraulic Pump | USA PARKER |
Hydraulic Valve | Germany BUCHER |
Hydraulic Motor | US EATON |
Hydraulic Reversing Valve | Germany ARGO-HYTOS |
Vibrating Motor | China Wolong |
Reduction Gear | Tianjin SEW |
Main Electric Unit | SIEMENS |
Text Display | Japan OMRON |
Electric Relay | Germany Siemens |
Mixer | China: Forced double-shaft mixer |
Paving Box | Bergkamp hydraulic spreader box |

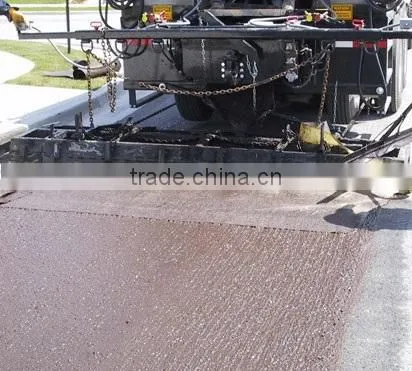

Working site:

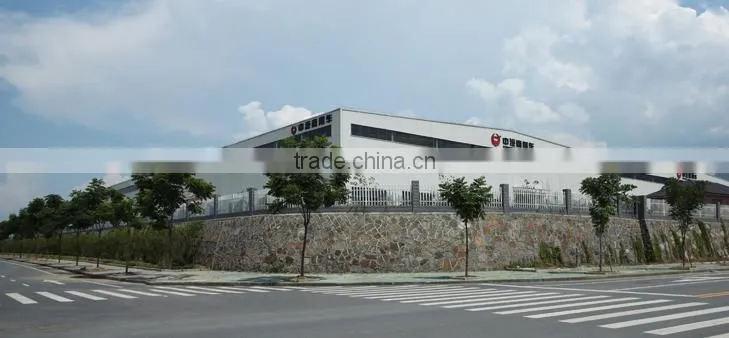

Hangzhou ICOM construction Machinery Co., Ltd. is a professional manufacturer of asphalt machines. Our sales and R&D team have over 10 years experience to focus on asphalt distributor, synchronous pavement surface vehicles and other road machinery and equipment . Based on innovation and expertise, we have received more than 10 patents, selling more than 20 countries and regions.
Focus cast quality, intentions to win the trust. We will offer innovative, professional, practical asphalt machinery and equipment with the spirit of craftsman.
Q2: What are the terms of payment.
A:Generally, L/C orT/T are used. that is 30% prepayent and 70% before shipping.
Q3: What about the warranty.
A;It would be for 1 years.
