Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Paving Machinery > Micro Surfacing Road Machine for Sale Inc

Micro Surfacing Road Machine for Sale Inc

Name: Micro Surfacing Road Machine for Sale Inc
Brand: ICOM
SKU: 141292986
Availability: InStock

Hangzhou IKOM Construction Machinery Co., Ltd.

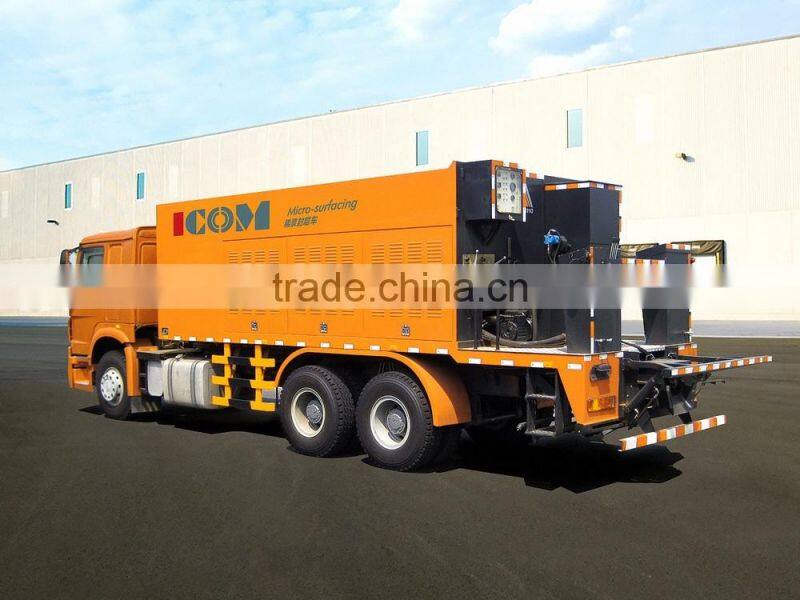

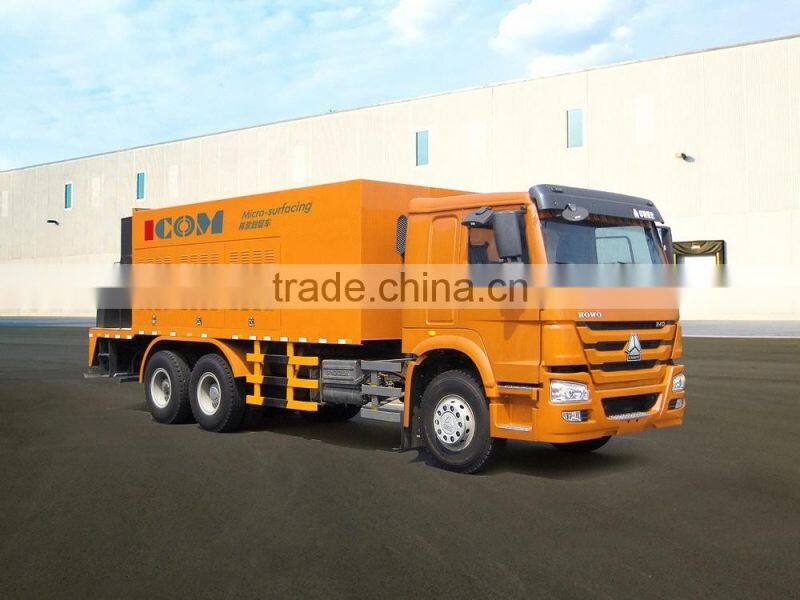

Micro Surfacing Road Machine for Sale Inc thumbnail-1

Micro Surfacing Road Machine for Sale Inc photo-1

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Production Capacity:

9-12m/min

Power(W):

97KW

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Production Capacity 9-12m/min

Power(W) 97KW

Max. Paving Thickness 220-300mm

Paving Width 2.4-4.3M

Place of Origin Zhejiang, China

Brand Name ICOM

Model Number ZQZ5253TFC

Dimension(L*W*H) 10350X2495X3400 mm

Weight 15900KG

Certification ISSA

Warranty within one year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

ICOM Micro surfacing machine is designed according to ISSA standard. ( ), applies all slurry and polymer-modified microsurfacings with equal ease. The ZQZ5253TFC is a proven design with convenient control locations and good operator visibility. The units are powered by a 97kw Cummins diesel engine,Italy Hydr.app hydraulic sets, Belgium Johnson asphalt pump, Bergkamp spreader box. All these excellent parts make it with good quality and performance.

Detailed Images

Advantages

(1) Double axis mixer system and atios regulate system can make water, asphalt emulsion and additive mix more accurate .

(2) Variable-speed, dual-shaft, multi-paddle pugmill with a dual hydraulic drive provides even mixture and material flow,aggregate is delivered to the pugmill by a belt-over-chain-fed conveyor to eliminate slippage

(3) Vibrating hopper walls minimize bridging problems

(4)Stainless steel additive tank and removable liquid material tanks make cleanup easier

(5) Bergkamp spreader box make the pavement more smooth.

Parameter

Main Technical Parameters

Product Model	ZQZ5253TFC
Chassis model	ZZ1257M4647C HOWO
Emission Standard	Equal to EURO-III
Engine Power	196kw/1900rpm
Aggregates Bin Volume	10 m³
Emulsion Tank Volume	3000L
Water Tank Volume	3000L
Additive Tank Volume	300 L
Cement addictive Volume	0.5 m³
Discharging Volume of Mixer	max.2000KG/min
Minimum Vehicle Speed	1 km/h
Width of Paver	2.4-4.3 m
Overall Dimensions	10350×2495×3400 (mm) (L × W × H)

Key Components of the Intelligent Slurry Seal Machine

Chassis	ZZ1257M4647C HOWO
Auxiliary Engine	Cummins
Asphalt Pump	Belgium Johnson
Hydraulic Pump	USA PARKER
Hydraulic Valve	Germany BUCHER
Hydraulic Motor	US EATON
Hydraulic Reversing Valve	Germany ARGO-HYTOS
Vibrating Motor	China Wolong
Reduction Gear	Tianjin SEW
Main Electric Unit	SIEMENS
Text Display	Japan OMRON
Electric Relay	Germany Siemens
Mixer	China: Forced double-shaft mixer
Paving Box	Bergkamp hydraulic spreader box

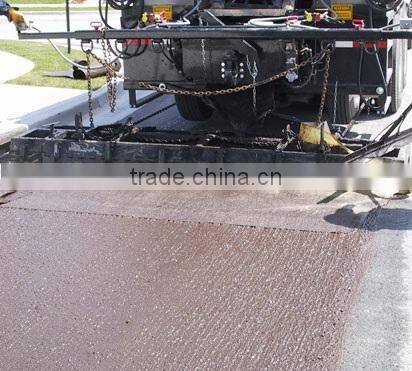

Working site:

Company Information

Hangzhou ICOM construction Machinery Co., Ltd. is a professional manufacturer of asphalt machines. Our sales and R&D team have over 10 years experience to focus on asphalt distributor, synchronous pavement surface vehicles and other road machinery and equipment . Based on innovation and expertise, we have received more than 10 patents, selling more than 20 countries and regions.
Focus cast quality, intentions to win the trust. We will offer innovative, professional, practical asphalt machinery and equipment with the spirit of craftsman.

FAQ

1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
2. MOQ:
No requirement for testing and trial order
3. Handling time for an order:
Within 10 days supplied from stock
4. Shipping way:
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
5. Quality Control:
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
6. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time
c. Free replacement will provide once the failure confirmed caused by our product quality.
