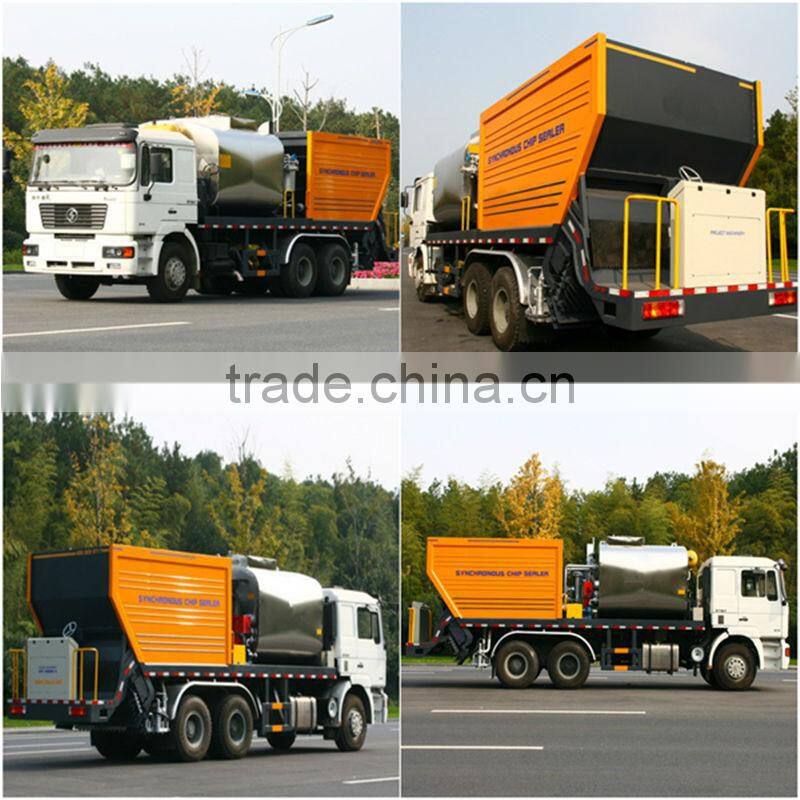

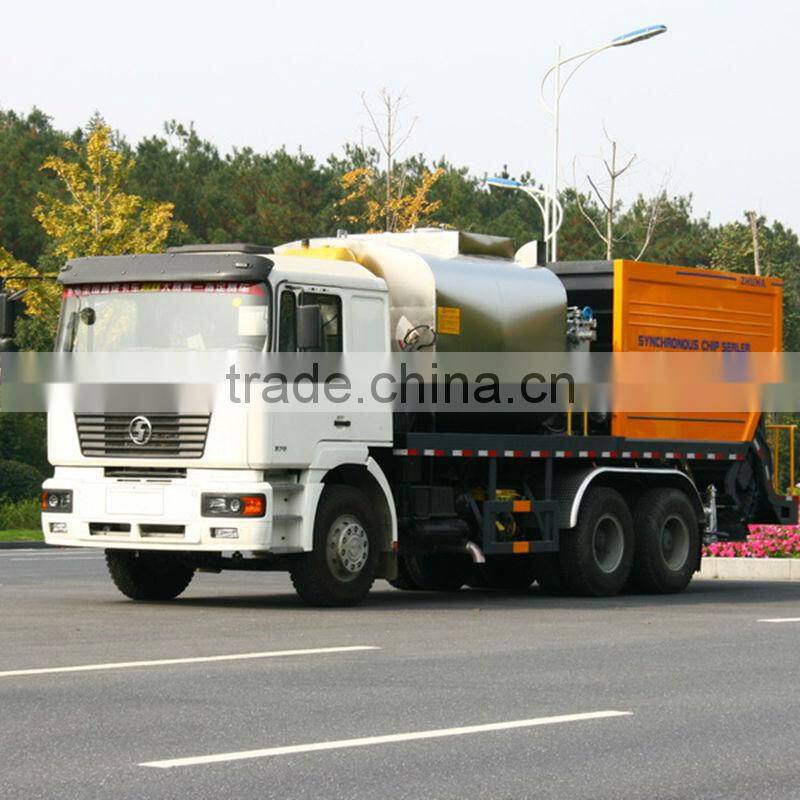

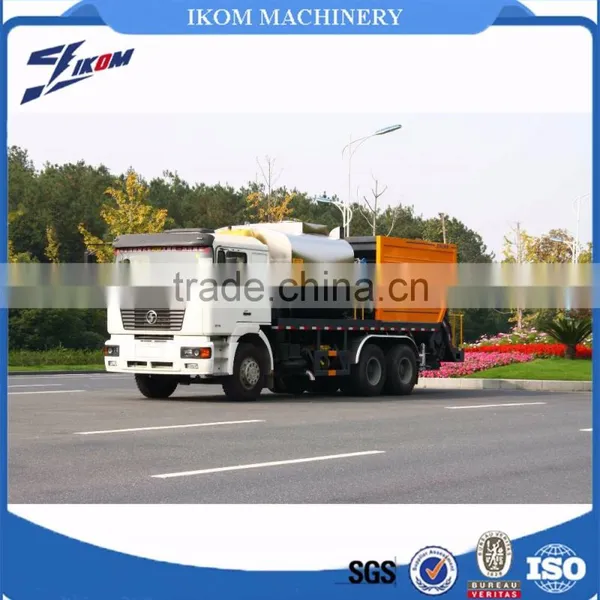

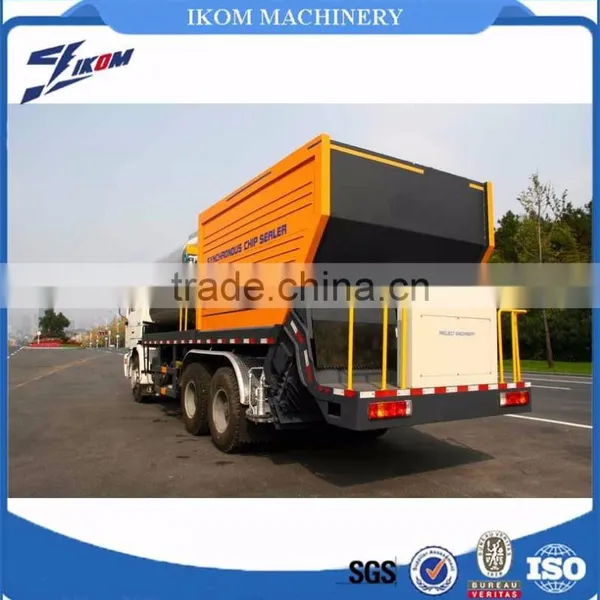

SYNCHRONOUS CHIP SEALER
Introduction

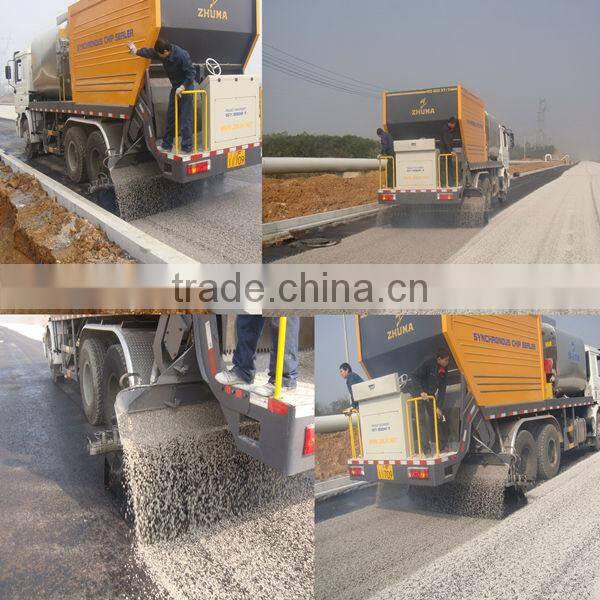

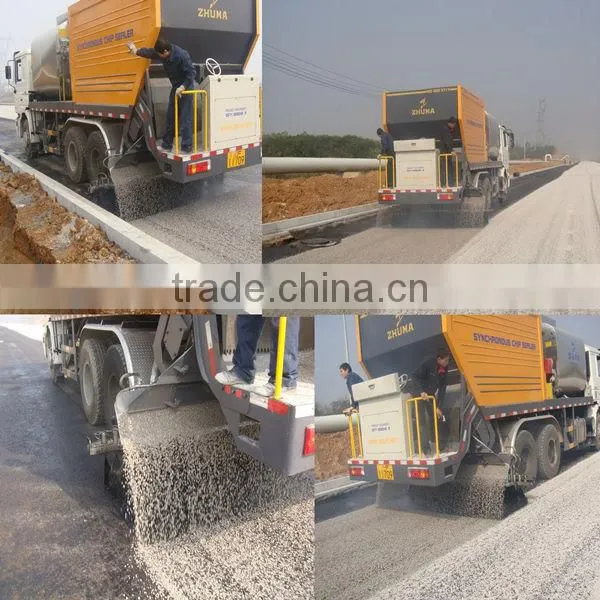

Intelligent synchronous chip sealer is the special construction machinery of international stature and could be applied into the simultaneous spraying work of highways.It could simultaneously spray asphalt and aggregate or respectively spray them. It features cost saving, wear resistance and anti-skidding of road surface and good waterproof performance. The traffic could be recovered soon once the construction is done. It is suitable for the construction of highways at different grades.
| Mass parameter: | ||||
| Kerb Weight(kg) | 15670 | Total Weight(kg) | 25000 | |
| Rated loading Weight(kg) | 9200 | Dimension(mm) | 10210*2495 | |
| *3450 | ||||
| Chassis Parameter: | ||||
| Chassis Model | SX1255JM434 | Tyre model | 12.00R20 | |
| Wheelbase (mm) | 4325+1350 | Tread (mm) | 2035/1800 | |
| Front Overhang(mm) | 1525 | Rear Overhang(mm) | 2800 | |
| Approach angle,Departure angle | 30°/15° | Minimum Ground Clearance (mm) | 250 | |
| Engine parameter: | ||||
| Engine model | WP10.270N | Manufacturer | Weichai Power Co. , Ltd | |
| Max.Power(kw) | 199 | Max. Torque(N.m) | / | |
| Fuel | Diesel | Displacement(ml) | 9726 | |

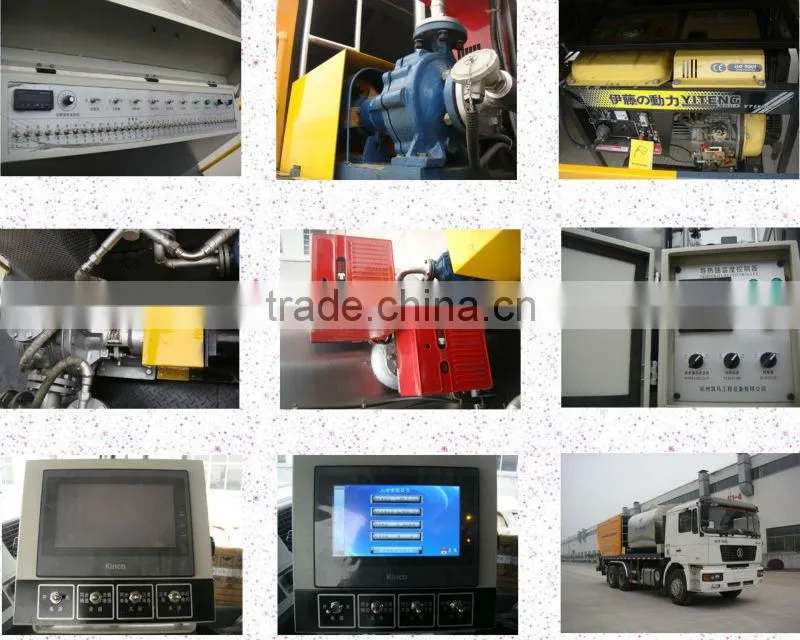

| Chip sealer specification: | ||||
| Tank Capacity(m³) | 6 | Chippings Capacity(m³) | 10 | |
| Hydraulic pump model | CBQ-F563 | Spray width | 3500mm | |
| Hydraulic motoe | L2F63W2P2(LIYUAN) | Spray Value | 0.5-3.0(Kg) | |
| Controller | ZM-3D | Insulation Thickness | 50mm | |
| Generator(Converter) | YT6800E(YITENG) | Nozzles | 28 | |
| Asphalt pump | QGB450(SHANGGUI) | Burner | G20(Riello) | |
| Other parameter: | ||||
| Max. truck speed(km/h) | 92 | Max. Grade ability | >23% | |
| Spring films(Front/Rear) | 9/12 | Minimum turning diameter (m) | 15.4 | |
| Axis No. | 3(6*4) | |||
Technics
Certificates
Parts
Case
Hangzhou ICOM construction Machinery Co., Ltd. is a professional manufacturer of asphalt machines. Our sales and R&D team have over 10 years experience to focus on asphalt distributor, synchronous pavement surface vehicles and other road machinery and equipment . Based on innovation and expertise, we have received more than 10 patents, selling more than 20 countries and regions.Focus cast quality, intentions to win the trust. We will offer innovative, professional, practical asphalt machinery and equipment with the spirit of craftsman.
1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
2. MOQ:
No requirement for testing and trial order
3. Handling time for an order:
Within 10 days supplied from stock
4. Shipping way:
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
5. Quality Control:
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
6. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time
c. Free replacement will provide once the failure confirmed caused by our product quality.
