Screw Vertical Axis Wind Turbine

Specifications

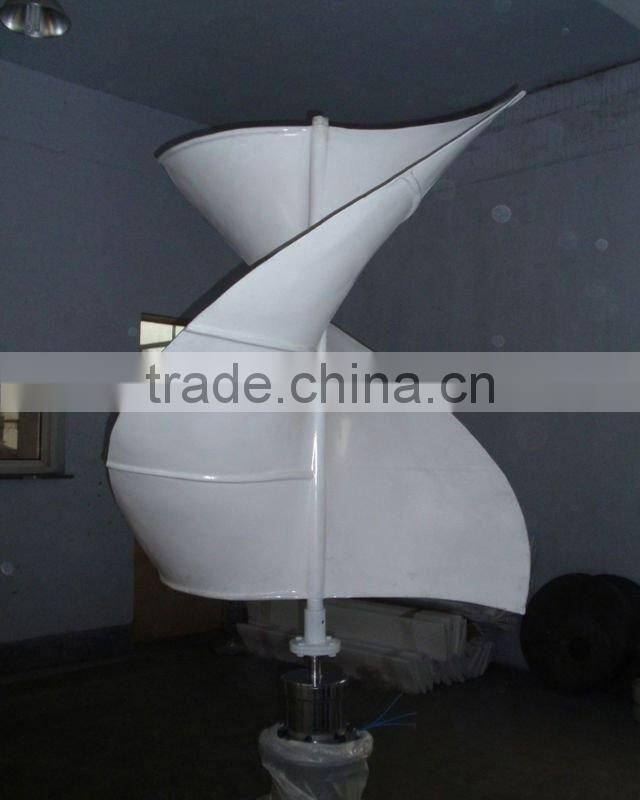

screw vertical axis wind turbine
1.Easy to install and operate
2.No noise
3.High efficiency,security,stablity
CE&ISO9001

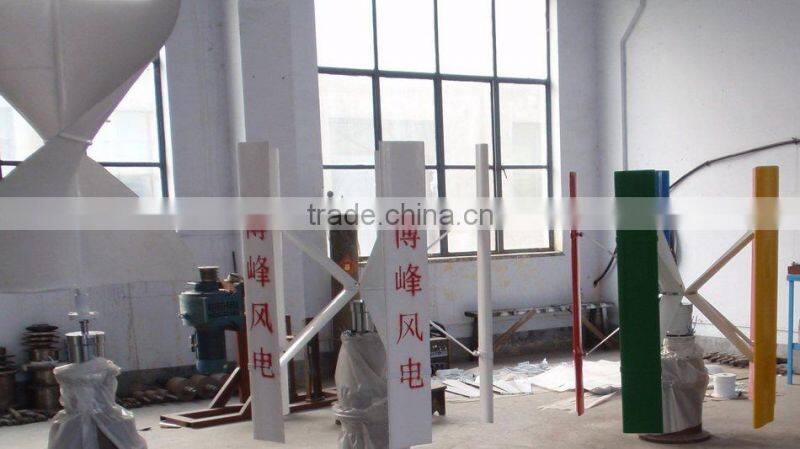

screw vertical axis wind turbine











Our BF-S series wind power generating set utilize a screw type vertical axis wind wheel and magnetic suspention structure,the wind energy coefficient is very high, the start-up wind speed is very low, the anti-wind capability is high,operation is stable,no noise,maintenace free and long service life.

Techinical parameters:

Model:BF-S-300

Generator Type: permanent magnetic direct drive VTAW, 3 phase AC



Power(w)	300	Rated wind speed (m/s)	8-10
Rotor diameter (m)	1	Start-up wind speed (m/s)	2.2
Height of blade (m)	1.2	Range of working wind speed(m/s)	2.2-25
Material of blades and numbers	Glass Fiber Reinforced Plastic/2	Survival wind speed (m/s)	50
Rated rotor speed (m/s)	150r/min	Output Voltage	AC12/24V
Speed regulation method	Electromagnetic control	Stop method	Electromagnetic brake
Wind energy utilized   coeffeicent	40%-45%	Sweep wind area()	0.785
Range of working temperature	-45-60	Suggested supporting battery	2pcs12v100ah
Top weight (kg)	35	Tower type and height	Guy cable tower/8m



Note:

1.     Tower type and tower height can be changed as per your request.

2.     Working voltage can be special requested.

3.     CE,ISO9001:2008

4.     For the power curves and details,please feel free to contact me.
