1. Description :

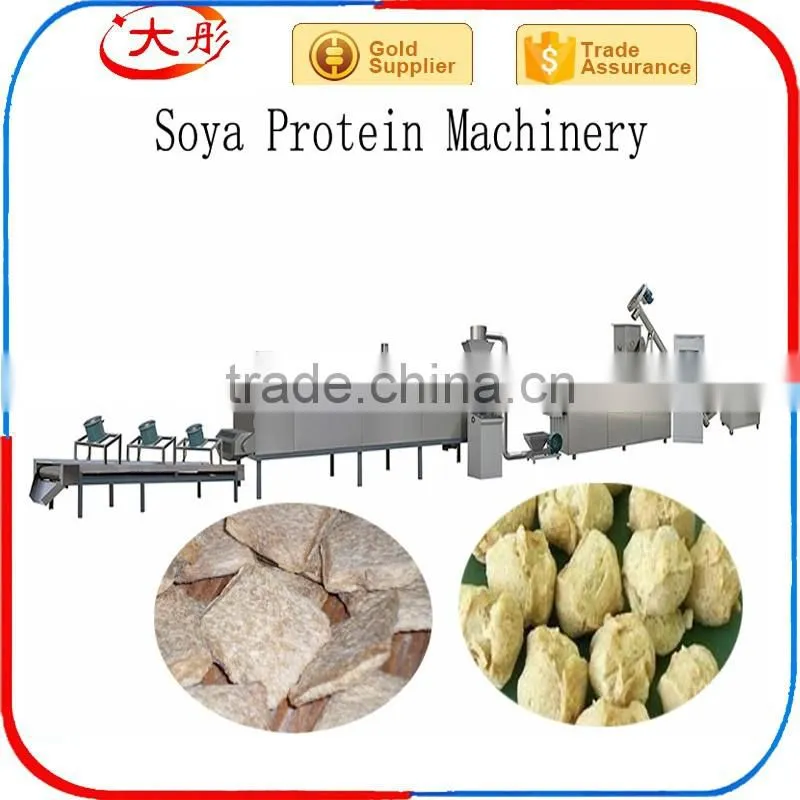

Soya chunks making machine processing line takes low temperature soy flour as main raw materials. After milling, mixing, tempering, high-temperature, high-pressure, high-cutting, then the spherical protein molecules change into chains and becomes layer fiber structure. It is similar with the muscle state of the animal and without the smell of beans.
2. Raw materials: adopts defatted soya flour as raw materials
3. Products: This line can be used to produce soya nuggets, TVP/TSP, soya chunks by adjusting the moulds from extruder; meanwhile it can produce cereal, snacks by adjusting the screws from extruder
4. Capacity: 180-220kg/h, 300-500kg/h.
5. Flow chart:
Mixing system---Extrusion system----Drying system ----Cooling system
6. Voltage: in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries.
7. Machines materials: All the machines are made by stainless steel.
8. Technical Parameters:
Mixer Function and Features:
Mixer makes the raw material which adding water and liquid chemical additive fully mixed equally. the machine mixes the flour and prepares them ready to be used in the next step.
1. Surface which touches mixer and raw material adopt stainless steel;the mixer is easy to operate it.
2.The discharge hole adopts the new handle-opened design, good seal and avoids leaking the material
3. we can choose different install powder mixer to meet the extruder capacity require.
Screw Conveyor
Name: screw conveyor
Brand: Datong
Original: China
It is used to convey the mixed raw materials to the feeder of the extruder.There is no leaking,dusting and pollution during the conveying.

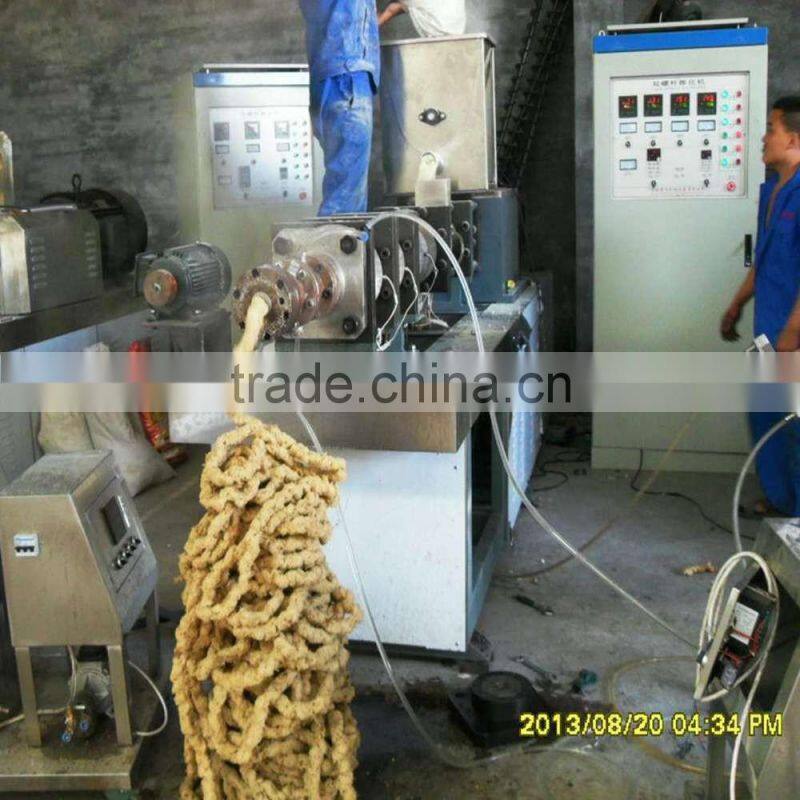

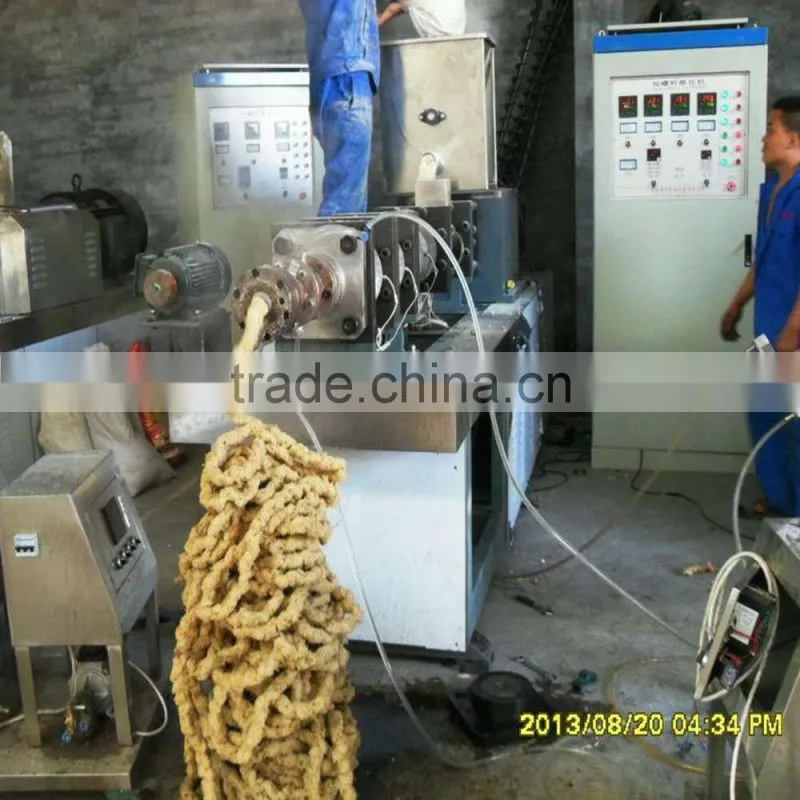

Double screw food extruder Features:
1. Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
2. Adopting speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.
3. Gearbox with automatic lubrication function, extending gear life.
Machine Parts: dryer
Name: Dryer
Brand: DATONG
Original: China
It is used for drying.The net belt running speed can be controlled to change the food drying time in the dryer.The temperature also can be controlled.
Screw Parameter:
Nitriding treatment(120 Hours)
Depth of Nitrided Layer: 0.5-0.8 mm
Hardness of Nitrided Layer: 950-1100Hv (HRC56°-65°)
Chrome Plating
Thickness of Hard Chrome Plating Layer: 0.05-0.10mm
Wear sleeve and screw sleeve are made of high wear-resistant alloy steel, to reduce abrasion and prolong service life.
Name: Cooling Conveyor
Brand: Datong
Original: China
It is full set stainless steel.The height of the hoister can be adjusted based on the requirement.
1 Warranty time: one year, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be count on buyer.
2 Commissioning services: the product's installation and commissioning at the demand side, our engineers will not leave there untill get your agreement.
3 Training services: our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.
4 Maintenance services: any malfunction happened, once you enquiry us, we will reply you within 48 hours except the special reasons.
5 Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.
