1. Description :
Soybean protein food processing line takes soybean and peanut as main raw materials. After milling, mixing, tempering, high-temperature, high-pressure, high-cutting, then the spherical protein molecules change into chains and becomes layer fiber structure. It is similar with the muscle state of the animal and without the smell of beans.
2. Raw materials: adopts defatted soya flour as raw materials

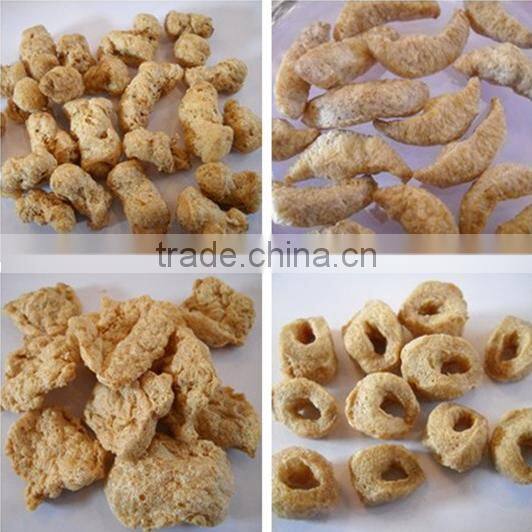

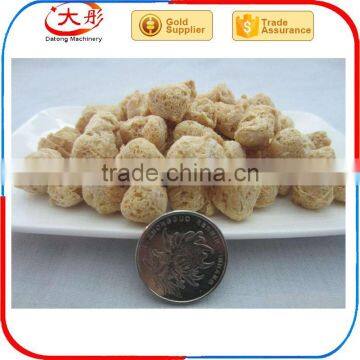

3. Products: This line can be used to produce soya nuggets, TVP/TSP, soya chunks by adjusting the moulds from extruder; meanwhile it can produce cereal, snacks by adjusting the screws from extruder
4. Capacity: 180-220kg/h, 300-500kg/h.
5. Flow chart:

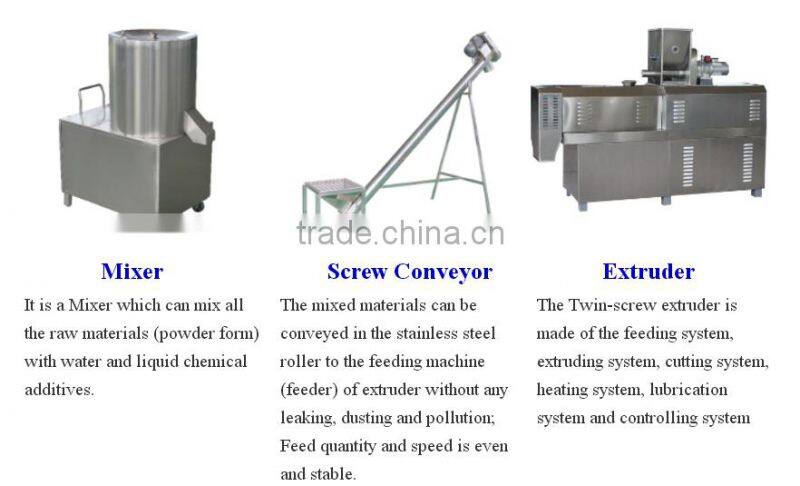

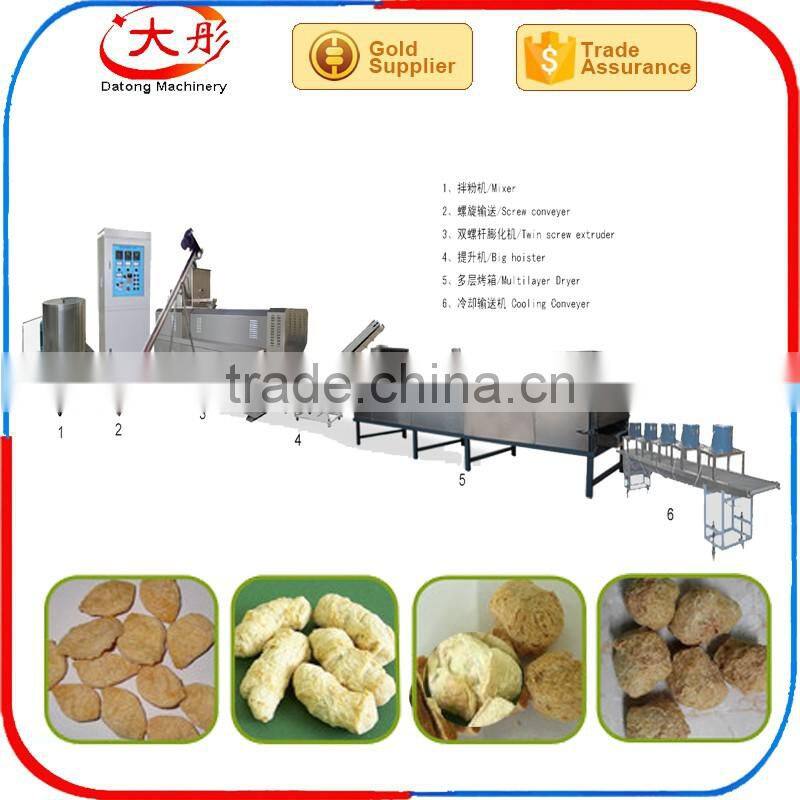

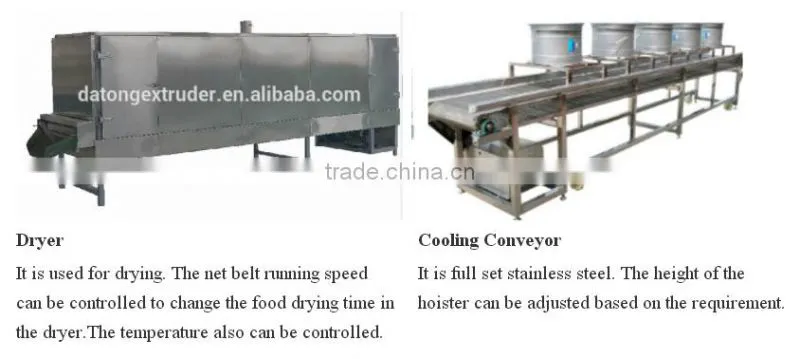

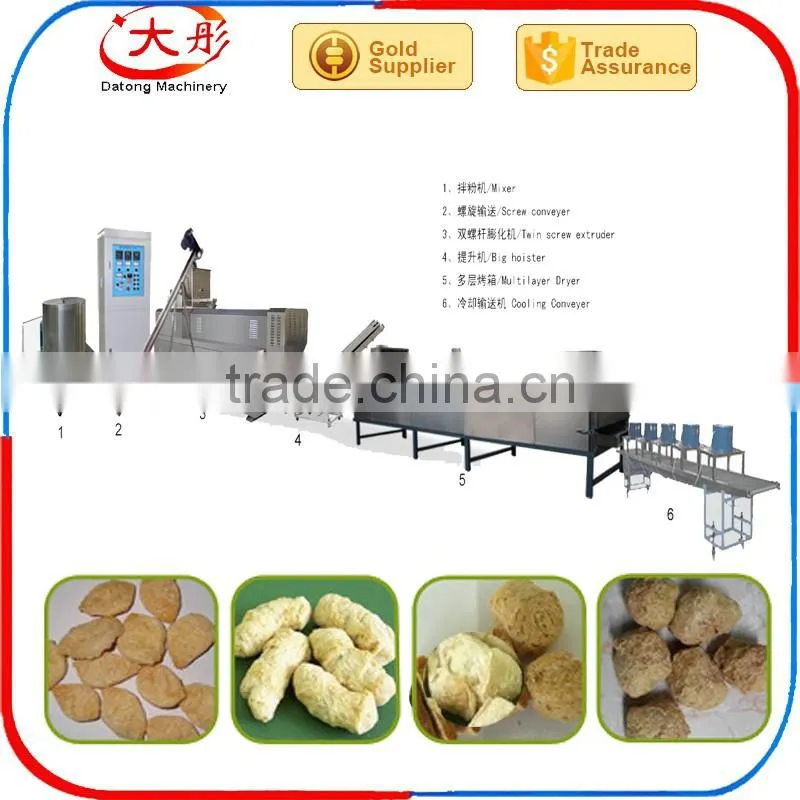

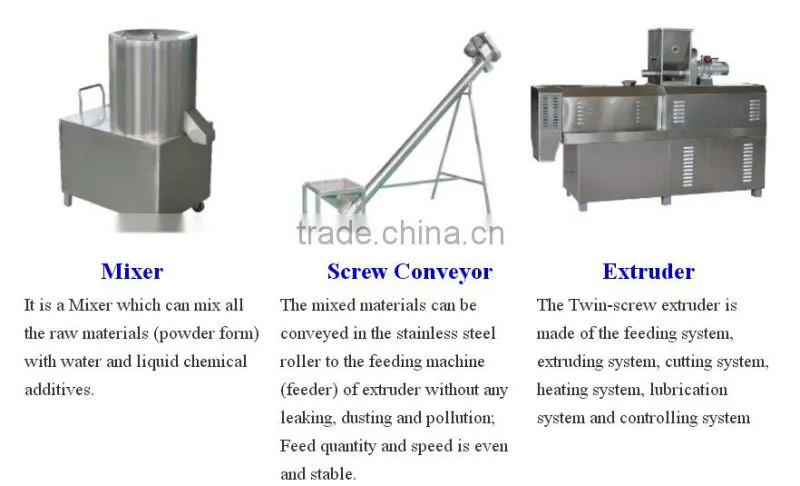

Mixing system---Extrusion system----Drying system ----Cooling system
6. Voltage: in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries.
7. Machines materials: All the machines are made by stainless steel.
8. Technical Parameters:
Cutting System:
1.The blades is made of alloy steel,Very sharp.
2.It can cut the product easily.
3.Hardness material an used long time.
4.it can fix more cutter according require.
Screw Parameter:
Nitriding treatment(120 Hours)
Depth of Nitrided Layer: 0.5-0.8 mm
Hardness of Nitrided Layer: 950-1100Hv (HRC56°-65°)
Chrome Plating
Thickness of Hard Chrome Plating Layer: 0.05-0.10mm
Wear sleeve and screw sleeve are made of high wear-resistant alloy steel, to reduce abrasion and prolong service life.
1.Manufacture:
1)Keep the quality the first.
2)Make more products benifit to customers' need.
________________________________________________________________________
2.Online/Sale service:
1)Supper and solid quality.
2)Fast and punctyal delivery
3)Standard export package or as customers' need.
________________________________________________________________________
3.After-sale service:
1)Assistance to build factory or your project.
2)Repairing and maintenance if any problem occur in the warranty.
3)Installation and clerks training.
4)Spare and wearing parts for free or with big discount.
5)Any feed back of machines can be told us, and we will try our best to support you.
________________________________________________________________________
4.Other cooperate service:
1)Technology knowledge share.
2)Factory building advising.
3)Business expansion adbvising.
