Plastic puff corn snack food equipment made in China

Puff corn snack food equipment

Puff corn snack food equipment adopt corn, rice, wheat, oat, barley etc as ingredients to make puffed snack. Through friction of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower etc.

2.Puff corn snack food raw materials:

Corn, rice, millets, wheat, oat, barley etc as ingredients. Please note that all the materials should be in powder(flour) or grits form.

3.Puff corn snack food products shapes:

Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder

4.Puff corn snack food equipment Capacity:

Our puff corn snack food machine capacity have from 100kg/h to 550kg/h

5.Puff corn snack food equipment voltage:.

Three phases: 380V/50Hz, Single phase: 220V/50Hz, We can make it according to customers' Local voltage according to different countries (400v 415v 480v...).

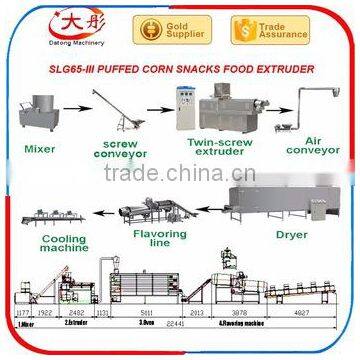

6.Puff corn snack food extruder flow chart:

Grain grinder---Mixing system---Twin screw Extrusion system----Drying system----Flavoring system--Packing system

Mixer Function and Features:

Mixer makes the raw material which adding water and liquid chemical additive fully mixed equally. the machine mixes the flour and prepares them ready to be used in the next step.
1. Surface which touches mixer and raw material adopt stainless steel;the mixer is easy to operate it.
2.The discharge hole adopts the new handle-opened design, good seal and avoids leaking the material
3. we can choose different install powder mixer to meet the extruder capacity require.

Screw conveyer:

Output:100-500kg

Motot:1.1kw

Size:2500*600*2300mm

Features:
1.This part that contacts material adopts the stainless steel material and advanced surface spraying .It avoids the material pollution and equipment cohering
2.This series screw conveyor adopts the frequency speed controlling technology .It can make material conveyed evenly and stably.

Double screw food extruder Features:

1. Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
2. Adopting speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.
3. Gearbox with automatic lubrication function, extending gear life.

Screw Parameter:

Machine Parts: dryer:

This dryer has the compact structure, small occupying, large drying area, small surface area, slight radiating heat and high thermal efficiency.
2.The belt and the heat preservation use the stainless steel; it is suitable for food safe industry level.
3.The running speed of belt net can be controlled (frequency controlling system)
4.The temperature can be controlled willfully and designed according to the need.
5. Adjustable transit speed of net belt with accurate temperature control device.
6. Suitable to dry non-fried extrusion snacks, nutritional powder, bread crumb, pet food, soybean protein, etc.

Flavouring System.

Our flavouring system have three kinds of motel.it isdouble drum sigle drum and octagonal drum

Output:100-1000kg/h

Size:3.0-0.7+1.3m

Mian power:1.5kw

Coolling system.

Power 0.75kw
Capacity0-600kg/h
Size 5000x700x1400
Carbon steel belt,belt width1.0meter.
With 4 cooling fans *0.08kw
