a. Raw materials adopts peeled and degermed corn flour as raw material
b. Products corn flakes, breakfast cereals, different kinds of snacks by adjusting the moulds from extruder
c. Capacity 150kg/h, 240kg/h, 300kg/h

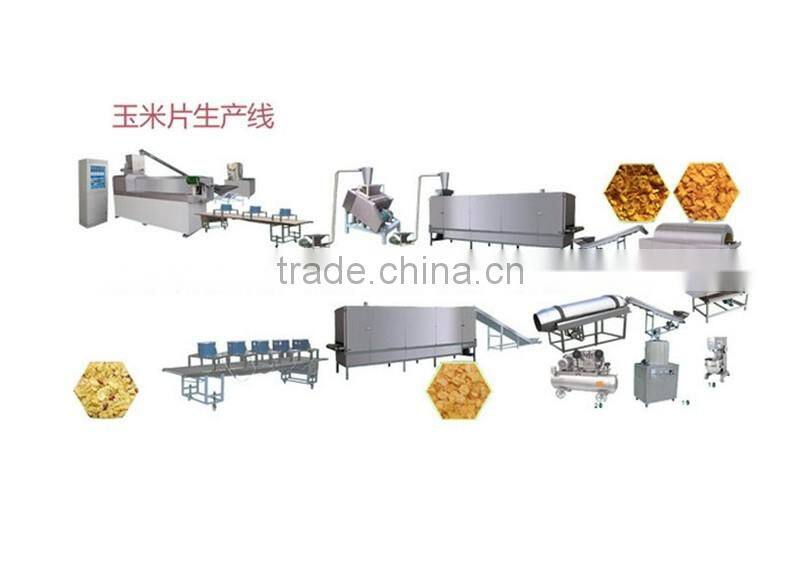

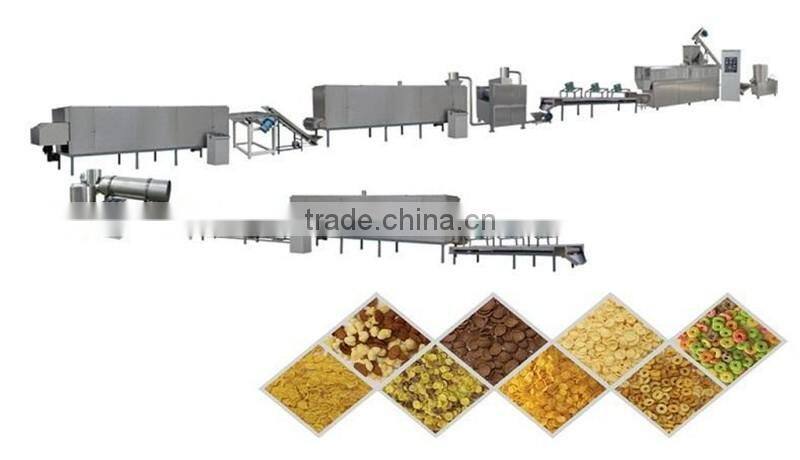

d. Flow chart Mixing system---Extrusion system---Flaking system---Drying system---Sugar Spraying system ---Drying system---- Packing system
e. Voltage 380V/50Hz for three phases, 220V/50Hz for one phase in China, we can make it according to customers’ Local voltage according to different countries
f. Technical Parameters
Name: Mixer
Brand: DATONG
Original: China
It is used to mix raw materials.We can supply different capacities to meet your demands: 30kg/batch,50kg/batch,100kg/batch and so on.
Name: screw conveyor
Brand: DATONG
Original: China
It is used to convey the mixed raw materials to the feeder of the extruder.There is no leaking,dusting and pollution during the conveying.
Double screw food extruder Features:
1. Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
2. Adopting speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.
3. Gearbox with automatic lubrication function, extending gear life.
Machine Parts: dryer
1. This dryer has the compact structure, small occupying, large drying area, small surface area, slight radiating heat and high thermal efficiency.
2.The belt and the heat preservation use the stainless steel; it is suitable for food safe industry level.
3.The running speed of belt net can be controlled (frequency controlling system)
4.The temperature can be controlled willfully and designed according to the need.
5. Adjustable transit speed of net belt with accurate temperature control device.
6. Suitable to dry non-fried extrusion snacks, nutritional powder, bread crumb, pet food, soybean protein, etc.
Name: Cooling Conveyor
Brand: Datong
Original: China
It is full set stainless steel.The height of the hoister can be adjusted based on the requirement.
Cutting System:
1.The blades is made of alloy steel,Very sharp.
2.It can cut the product easily.
3.Hardness material an used long time.
4.it can fix more cutter according require.
Screw Parameter:
Nitriding treatment(120 Hours)
Depth of Nitrided Layer: 0.5-0.8 mm
Hardness of Nitrided Layer: 950-1100Hv (HRC56°-65°)
Chrome Plating
Thickness of Hard Chrome Plating Layer: 0.05-0.10mm
Wear sleeve and screw sleeve are made of high wear-resistant alloy steel, to reduce abrasion and prolong service life.
1 Warranty time: one year, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be count on buyer.
2 Commissioning services: the product's installation and commissioning at the demand side, our engineers will not leave there untill get your agreement.
3 Training services: our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.
4 Maintenance services: any malfunction happened, once you enquiry us, we will reply you within 48 hours except the special reasons.
5 Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.
1.Firstly packed with plastic bags.
2. secondly wooden packing cases.
3.finally putting the wooden cases into the container if delievered by sea.
