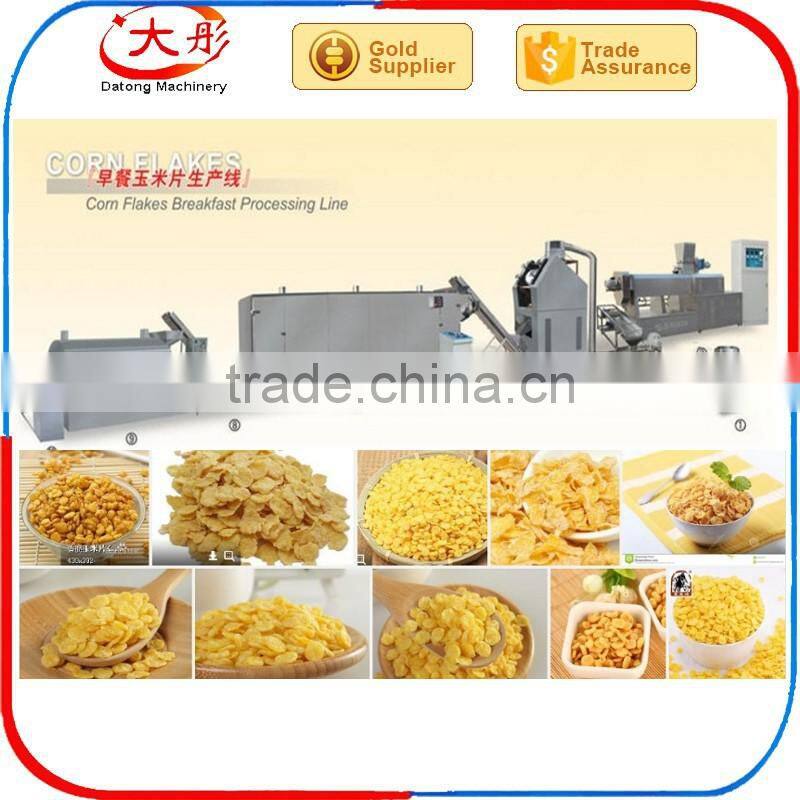

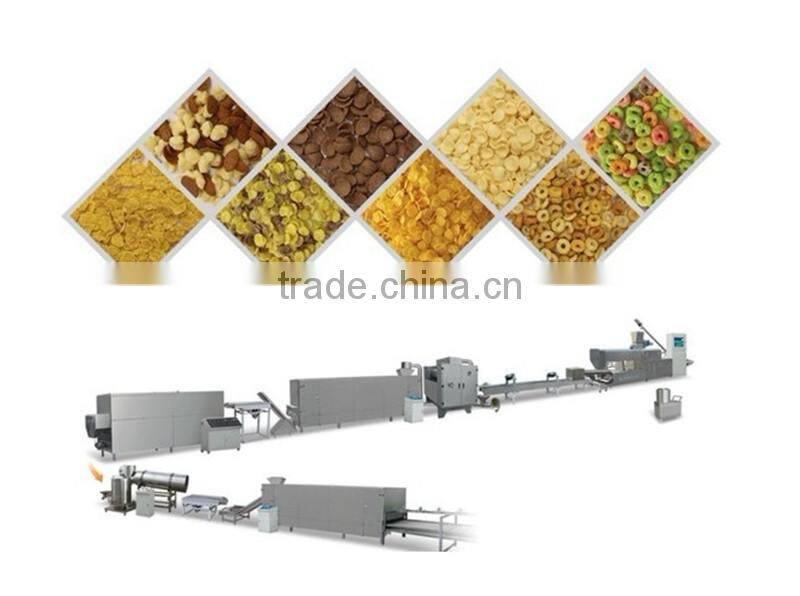

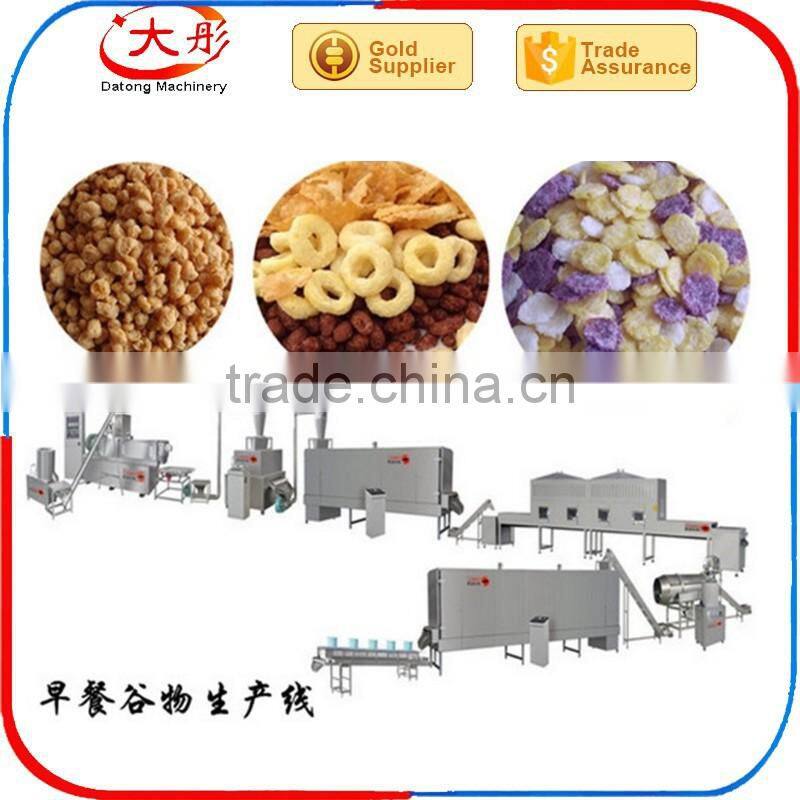

Corn flakes making machine can produce corn flakes and breakfast cereal which is one kind of nutritional convenient food which is produced by this process line, using grist as basic material, with different shapes, such as, granule, flake, animal, etc. One outstanding characteristic of the breakfast cereal is that it contains abundant compound carbohydrates and dietary fiber, strengthens lots of microelements, such as vitamin and mineral, and also can be added with cocoa and sugar, like honey and maltose. It can be drunk directly after mixed into coffee, milk, yoghourt or functional drink. Children can eat breakfast cereal as sweet crispy snack.
a. Raw Materials: adopts corn flour as raw material
b. Products: This line can be used to produce snacks, cereals by adjusting the moulds from extruder
c. Capacity: 150kg/h, 260kg/h for corn flakes; 150kg/h, 260kg/h and 500kg/h for breakfast cereal

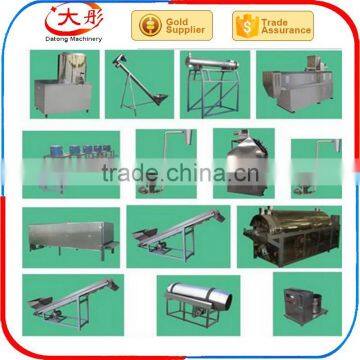

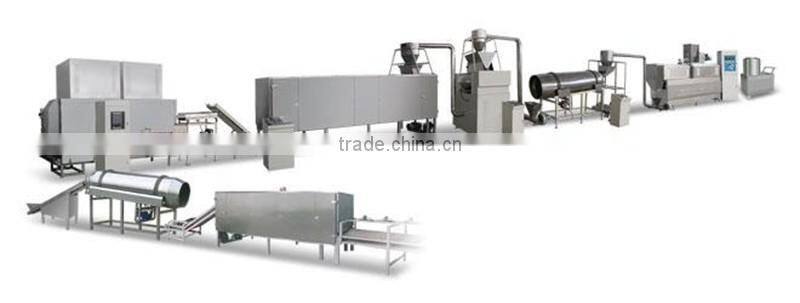

d. Flow chart: Mixing system---Extrusion system---Cooling system---Flaking system---Drying system---Toasted system---Sugar Spraying system---Drying system--- Packing system
e. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
f. Machines Materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function
g. Technical Parameters:
Name: Mixer
Brand: DATONG
Original: China
It is used to mix raw materials.We can supply different capacities to meet your demands: 30kg/batch,50kg/batch,100kg/batch and so on.
Name: screw conveyor
Brand: DATONG
Original: China
It is used to convey the mixed raw materials to the feeder of the extruder.There is no leaking,dusting and pollution during the conveying.
Name: Dryer
Brand: DATONG
Original: China
It is used for drying.The net belt running speed can be controlled to change the food drying time in the dryer.The temperature also can be controlled.
Double screw food extruder Features:
1. Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
2. Adopting speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.
3. Gearbox with automatic lubrication function, extending gear life.
Cutting System:
1.The blades is made of alloy steel,Very sharp.
2.It can cut the product easily.
3.Hardness material an used long time.
4.it can fix more cutter according require.
Name: Cooling Conveyor
Brand: Datong
Original: China
It is full set stainless steel.The height of the hoister can be adjusted based on the requirement.
Services during the sales:
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout
2.Welcome to visit our factory or the domestic clients’ factory.
3.Inspect the machine before leaving the factory.
1.Firstly packed with plastic bags.
2. secondly wooden packing cases.
3.finally putting the wooden cases into the container if delievered by sea.
