Pet food Processing line generally consists of meat, meat by products, cereal, grain, vitamins, and minerals. General grains,such as soybean meal, corn meal, cracked wheat, and barely, are often used to improve the consistency of the products. the meat is mixed with other ingredients. Dog food has a shelf life of about 10 to 12 months. So-me manufacturers are adding some kind of vitamins E and C as natural preservatives.

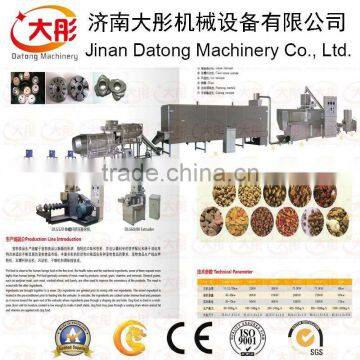

pet food processing line Configuration:
1. Pet food raw material mixer.
2. Screw Conveyor
3. Animal feed extruder machine
4. Belt Conveyor(Air Conveyor)
5. Roasting Oven(Fryer Machine)
6. Flavoring Machine
7.Cooling Machine
8.Packing machine
2.Pet Food Making Machine Pet food Processing Line Raw materials:
All kinds of grains, such as bean, corn, wheat, etc. Some agricultural waste, such as rice husk, cotton stalk, cottonseed skins, weeds, crop stalks and other plant wastes, especially unformed materials.
Corn flour
bone meat powder
. Wheat flour

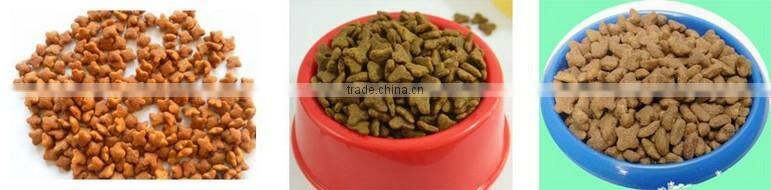

3.Pet food shapes/sample
As long as you change the extruder mould to get different shapes. like bone,heart,pellet,fish,traingle......
4.Pet Food Making Machine Pet food Processing Line process flow:
Raw material preparation→Mixing raw material→Conveying→Extrusion→Conveying→Drying→Screening→Oil spraying→Flavoring→Packing machine.
5.Pet Food Making Machine Pet food Processing Line setting:
Mixer→Conveyor→Extruder→Wind conveyor/hoister→Multi-layer dryer→Sifter→Hoister→Oil sprayer→Single/double roller→Packing machine

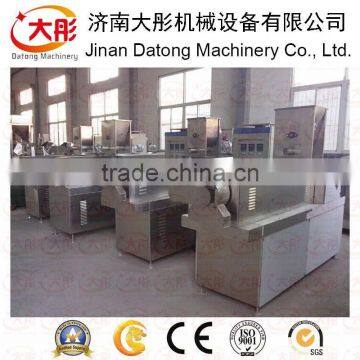

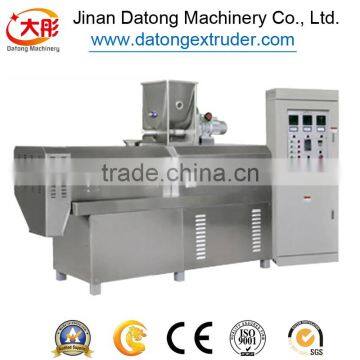

Double screw pet food machine
Installed Capacity:35.0kw
Drive Motor:22.0kw;
Feeding:0.75kw;
Oil-pump: 0.37kw;
Cutting: 0.75kw;
Output: 100-140kg/h
Dimension: 2300*850*1750mm

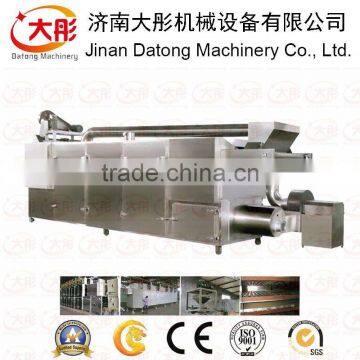

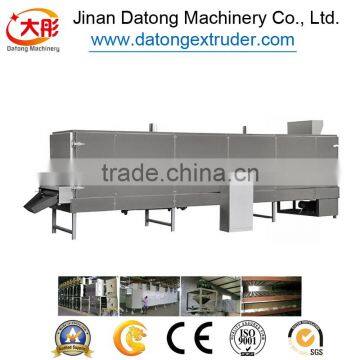

Pet food dryer:
1. This dryer has the compact structure, small occupying, large drying area, small surface area, slight radiating heat and high thermal efficiency.
2.The belt and the heat preservation use the stainless steel; it is suitable for food safe industry level.
3.The running speed of belt net can be controlled (frequency controlling system)
4.The temperature can be controlled willfully and designed according to the need.
Screw
38CrMoAl Alloy steel
Hardness：60HRC
Datong Brand
Durable material
Hister&Single Drum
Food safte belt for material touch place
Main Motor:0.74kw Size:2.5x0.6x1.7(m)
Convey the product from dryer to roller.
Single Drum: Surface: Stainless steel Output:100-150kg/h
Size:2.3x0.7x1.5(m) Mian power: 0.75kw

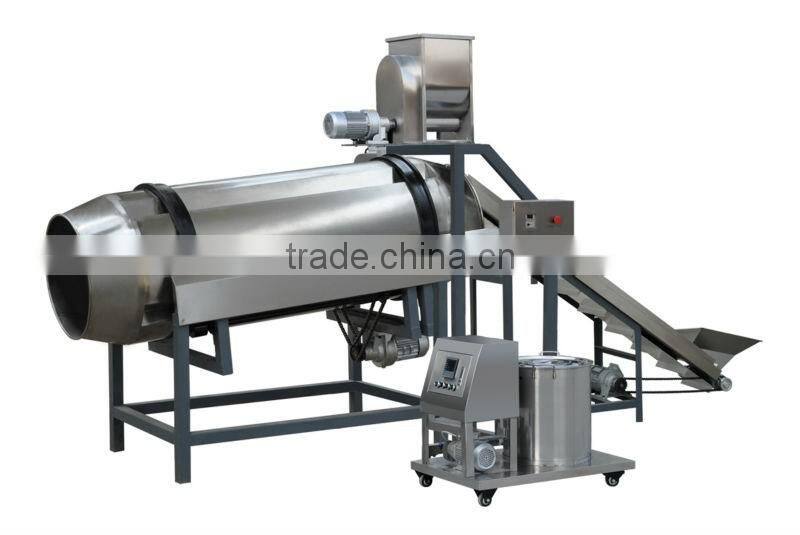

Oil sprayer: Surface: Stainless steel Output:100-150kg/h
Size: 0.7x0.6x0.8(m) Mian heat power:3kw
Main motor:0.37kw
1. Are You a manufacturer or a trading company?
We are professional manufacturer of food making machine
2. Where is your factory located?
Our factory is located in Jinan city,No.28,Gaohanji industrial park,Tianqiao Zoon,Shangdong Province,China
3. What’s your price of your food making machine?
Please contact us by send inquiry to us directly ,We will reply you as soon as possiable
4. How to support me,if I don’t know how to use it?
Free training within the warranty period will be provided by telephone or email or skype.We also can let our technican to customer’s company to provided training and support
5. If machines’ wearing parts need changing ,what should we do?
We can offer wearing parts all the time ,and offer video to show how to change it.
6. What’s the payment term,if we want to buy machines ?
L/C,100%T/T,Alibaba Trade Assurance,T/T30% down payment ,70%balance delivery.
1. Free consultation service before, during, and after sales;
2. Free Project planning and design services upon clients' special demands;
3. Debugging and inspecting of equipment until everything is functional before leaving the factory;
4. Overseas installation and training of equipment maintenance and operating personally;
5. Provide basic production techniques and formulas;
6. 1 year complete warranty for Extruded Food Wheat Corn Snack Pellet Making Machine.
7).Provide factory layout according to your factory size in advance.
8).Provide the basic formula
9).Inspect the machine before leaving the factory.
10).Oversea installation and commissioning the equipment.
11).Technician will work with your workers together and teach your workers how to install machines, how to operate machines, how to maintain machines during daily working.
12).Our engineers will teach your workers how to clean the extruder, how to change the screw, how to change barrel etc, and provide technology support with you forever.

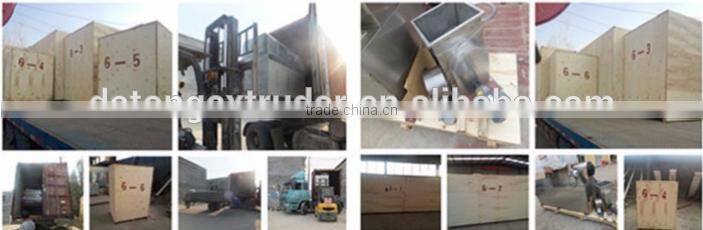

Packing machine with woodcase and plastic flim
Loading container in our factory
Packing: inside plastic bag, outside wooden case for Extruded Food Wheat Corn Snack Pellet Making Machine (Based on the customers' need adopt the wooden case or wooden pellets, etc.).Transportation: shipping, train, express or upon clients' demands.
