1.Chocolate core filling snack food machine details:
1.Filled puffed snacks are directly expanded snacks co-extruded with creamy and sweet pastes. They are particularly innovative and easily adaptable to meet changing consumer demand.
2.A typical co-extrusion processing line includes mixing and oil spraying systems, a twin-screw extruder at the heart of the process and shaping equipment. Drying, coating and cooling devices are then used accordingly.
3.Extruded flakes can also be made on the same lines with complementary equipment.
2.Ingredient flexibility to process a wide variety :
1.Outer parts with various materials : wheat, rice, corn, whole grain etc.
2.Fillings : chocolate flavors, jellies, fruit pastes, honey, yoghurt, etc.
3.Shapes : pillows, tubes, bars, triangles, nuts, balls, long and short ovals and specialty profiles, etc.
4.Expertly crafted co-extrusion dies with optimized flow design.
5. The equipment list
Mixer→ Screw conveyor → Twin screw extruder→ Core filling machine→ Shaping and cutting machine→ Air conveyor(Hoister)→ Electric dryer → Hoister → Oil Sprayer→ Flavoring roller(drum) → Cooling conveyor
3.Machine Parameter&Processing Chart:
The core filling snack food raw materials.
Corn, rice, millets, wheat, oat, barley etc as ingredients. Please note that all the materials should be in powder(flour) or grits form.
Our product show.
4.Chocolate core filling snack food machine Main Features:
1) Raw materials: corn,rice,wheat,oat,barley etc.
2) products shape: Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel, flower, star and heart
shape by adjusting the mould in the extruder, can custom-made the shape
3) Easily to operater the whole line. Only need three workers to control the processing line
4) Low power consumption
5) Long life and cheap spare parts.
5.Product Certificate of Chocolate core filling snack food machine:
6.Install drawing for core filling snacks making line:

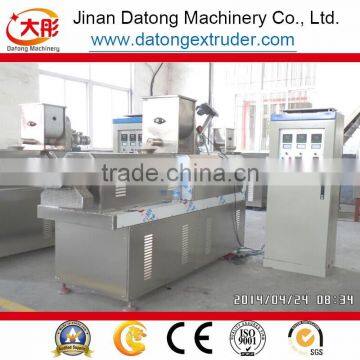

7.Extruder Features:
1. The screw is made of alloy (38CrMoAL) by nitriding process, high strength and wear-resting. And it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.
2. It adopts speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine guarantees stable materials feeding in the whole food process.
3.The gearbox has automatic lubrication function, with extends gear life.
4. Radiator is increased on driving part for forced cooling effect, and it ensures extruder operate safely.
5. Barrel with water-cooled circulation, it makes extruder can be used not only for corn/rice, also for wheat flour/starch which are raw materials with high viscosity. Through different moisture-extrusion temperature ratio, it can make whole-expanded and half expanded as different type of products.
6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
Packing: inside plastic bag, outside wooden case for core filling snack food puffed food making machine (Based on the customers' need adopt the wooden case or wooden pellets, etc.).
Transportation: shipping, train, express or upon clients' demands.
Packing machine with woodcase and plastic flim
Loading container in our factory
1. Free consultation service before, during, and after sales;
2. Free Project planning and design services upon clients' special demands;
3. Debugging and inspecting of equipment until everything is functional before leaving the factory;
4. Overseas installation and training of equipment maintenance and operating personally;
5. Provide basic production techniques and formulas;
6. 1 year complete warranty for Extruded Food Wheat Corn Snack Pellet Making Machine.
Jinan Datong Machinery Co., Ltd is a professional food machinery manufacturer in Jinan city shandong province China.Our company congregates an exceptional food machine engineering team, personal customer service center and highquality manufacturing capabilities have evolved exponentially,We are working hard on explore constantly not only in the research of extrusion technology, but also in food technics to benefit our clients producing newfangled food in their markets. It making us become one of the preeminent providers of reliable extrusion equipment world-wide.
1. Are You a manufacturer or a trading company?
We are professional manufacturer of food making machine
2. Where is your factory located?
Our factory is located in Jinan city,No.28,Gaohanji industrial park,Tianqiao Zoon,Shangdong Province,China
3. What’s your price of your food making machine?
Please contact us by send inquiry to us directly ,We will reply you as soon as possiable
4. How to support me,if I don’t know how to use it?
Free training within the warranty period will be provided by telephone or email or skype.We also can let our technican to customer’s company to provided training and support
5. If machines’ wearing parts need changing ,what should we do?
We can offer wearing parts all the time ,and offer video to show how to change it.
6. What’s the payment term,if we want to buy machines ?
L/C,100%T/T,Alibaba Trade Assurance,T/T30% down payment ,70%balance delivery.
