Hot sale Puffed snacks food making machine production line
1.Hot sale Puffed snacks food making machine production line description
Puffed snacks machine is foodstuff equipment researched and developed by Datong Company on the basis of international advanced technology. The performance and quality have reached the highest international level of the same line. From feeding materials, extruding & inflating, core filling, shaping, cutting, oil spraying to finished products are done once time automatic. We fill the gap of the first-class food produced with extruded & inflated technology. This can produce all kinds of inflating foodstuffs, rice bread, core snacks, crackers, gruels, nutrient flour, breakfast cereal, baby food and so on. The raw material can be maize, rice or wheat flour, etc. Some products like: Corn flakes, corn pearl, spraying sugar food.
2.Raw materials: corn powder and other cereals
3. Products: corn powder and other cereals
4. Capacity: 120-150kg/h,200kg/h,400kg/h

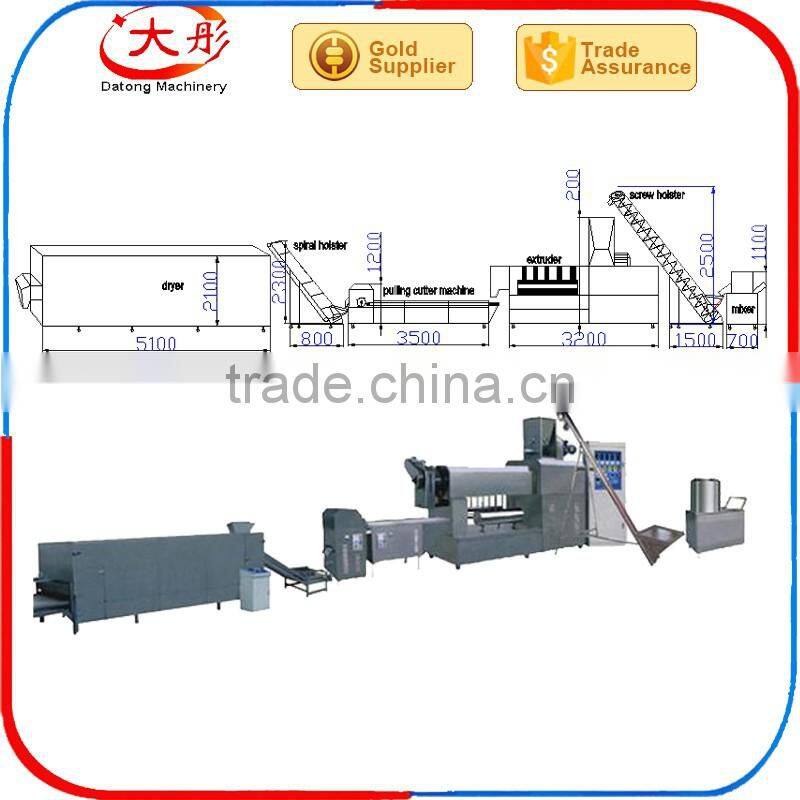

5. Flow chart: Mixing ---Extrusion ----flaking---drying---baking---cooling---packing
6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
7.Puffed snacks making machine technical parameters
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Machine Parts
Name: Mixer
Brand: Datong
Original: China
It is used to mix raw materials.We can supply different capacities to meet your demands: 30kg/batch,50kg/batch,100kg/batch and so on.
Main Features
Name: screw conveyor
Brand: Datong
Original: China
It is used to convey the mixed raw materials to the feeder of the extruder.There is no leaking,dusting and pollution during the conveying.
Machine Parts
Name: Extruder
Brand: Datong
Original: China
we can supply your different models extruder according to your targer capacity.With a same extruder,you can produce different shapes of snacks by changing different moulds.
Name: Dryer
Brand: Datong
Original: China
It is used for drying.The net belt running speed can be controlled to change the food drying time in the dryer.The temperature also can be controlled.
Hoister:
Food types PVC for material touch place.
Main Motor:1.2kw
Size:2.0x0.5x2.8 (m)
Convey the product from dryer to double roller.
Flavouring System
Name: Flavor roller
Brand: Datong
Original: China
There is a feeder on the roller to spray flavor power .The drums can make the products flavored well .We have different types to meet different capacities.
Oil sprayer Function:
This oil sprayer adopt stainless steel as material,so it is very safety for food. it has a big container where can store the oil,using the heater to make sure the oli is Liquid state,when we press the button,the oil motor can make the oil from the roller,The oil is ejected from the pipe.as long as we start the machine acompany with the roller,we can obtain the require products.
1.Pre-shippment Inspection
a.) Supplier should trial run whole line at supplier's factory before shipment;
b.) Supplier has to run the machine at least 1hour for each machine;
c.) All raw materials for that trial run to be arranged by supplier at their cost.
2.Installation & Training
a.) The seller will send one engineer to install the machinery.
b.) Buyer is responsible for finding a translator locally for easy understanding.
c.) The customer will be asked to provide room, board, round-trip transportation, and a nominal $60 daily subsidy per person for their working days.
d.) Period of installation:The buyer should arrange at least 4 workers including one electric technician to help our engineer for installation. The raw material, workshop electric source should be well prepared before installation. On base of the above request, the installation period is7-14 days including training the operater. A possible delay of the installation period will be additionally invoiced.
e.) The total length of the installation time depends on number and qualification of the available local stuff. A possible delay of the installation period will be additionally invoiced.
f.) We will provide on-site service after 1 year. The customer will be asked to provide room, board, round-trip transportation, and a nominal $50 daily subsidy per person.
g.) The seller is responsible for the fare of the visa in China.
3.Service&Guarantee
a.) Free consultation service before, during, and after sales;
b.) Free project planning and design services;
c.) Free debugging of equipment until everything is functional;
d.) Free management of equipments' long distance shipping from seller's factory to named place by buyer;
e.) Free training of equipment maintenance and operating personally;
