Features:
1. This Hanger Hook Type Shot Blasting Machine is a kind of high efficency shot blasting machine with non-pit.
2. Large inner available cleaning space, compacted structure and scientific design. Can be designed and manufactured according to the order.
3. No special request for the workpiece structure. Can be used for different kinds of workpieces.
4. Widely used in cleaning and strengthening for Fragile or Irregularly Shaped Parts, Medium-sized or Large Parts, Die Cast Parts, Sand Removal and External Finishing.
No | Name | Q483 | Q485 | Q4810 |
1 | Productivity (hook / h) | 10 | 10 | 10 |
2 | Running speed chain hoists(m/min) | 2.44 | 7.34 | 2.44 |
3 | Maximum workpiece weight(Kg) | 300 | 500 | 800 |
4 | Hanging from (mm) | 2560 | 2560 | 2560 |
5 | Quantity of shot blasting(Kg/min) | 250*2 | 250*3 | 360*6 |
6 | The amount of dust wind(m/3h) | 6000 | 10000 | 25000 |
7 | Cleanup workpiece size(mm) | 1000*1400 | 1200*1700 | 700*2400 |
8 | Total power(Kw) | 38.75 | 58.43 | 85 |
9 | Dimensions(mm) | 8450*5350*5003 | 12235*5410*9411 | 4500*5350*5003 |

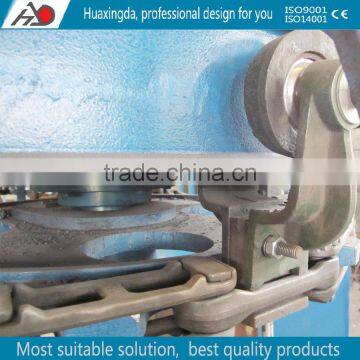

overhead chain system
work piece spinning device blast blade pneumatic abrasive feeder
blastwheel wear parts
blast wheel wear parts service time
wear parts chemical analysis table:
Note:
The above technical parameters and specification are for reference only, we will according to your workpiece size and design products.
So please inform us your workpiece size ,we could design a suitable cleaning machine for you .
Advantage:
1. Professional senior engineer to find the best solutions for you
2.16 years' product experience in shot blasting machinery industry.
3.Reply your inquiry in 24 working hours.
4. As an honest seller,we always use superior raw material,advanced machines,skilled technicians to ensure our products to be finishied in high quality and stable feature.
Welcome to contact us or visit our company.
If you want purchase shot blasting machine .please kindly confirm the following information.
1.What material of workpiece to be cleaning.
2.The size of workpiece (the minimum and maximum size)
3.The cleaning efficiency.
4.The weight of workpiece.
According to your information, We would recommend a most suitable cleaning machine for you.
