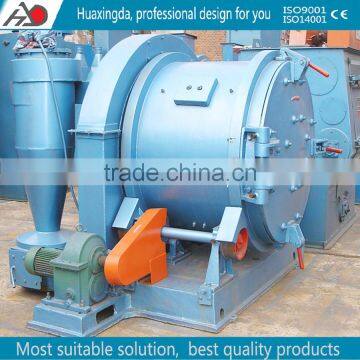

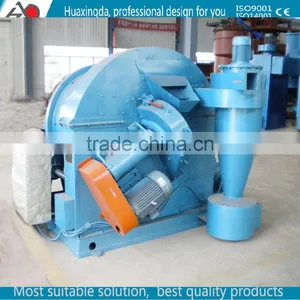

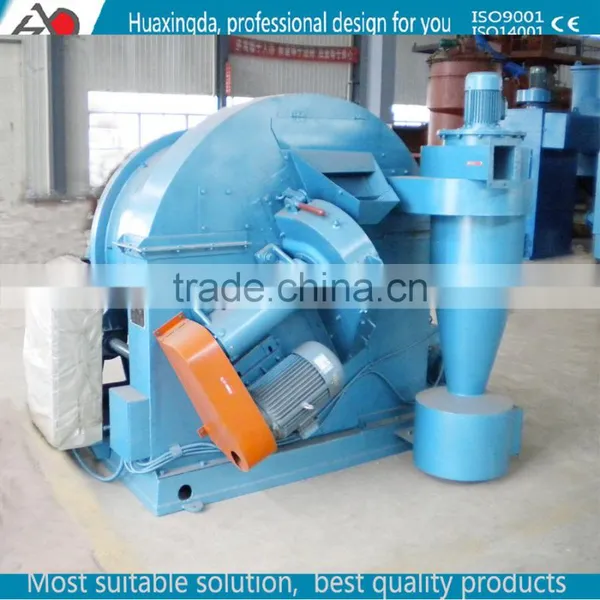

Q31 Series Small Metal Parts Rolling Drum Shot Blaster
The machine is suitable for surface rust removal of work pieces in medium or small quantity batch production with many varieties .Put the work pieces into the barrel and blasting it in side way.
The high-speed impeller throws the abrasive to the continuous tumbling castings or forgings in barrel, to remove the
greensand or scales on the surface. It cleans evenly and its productivity is high, so it is suitable for cleaning the small workpieces whose weight are under 15Kg in medium or small-scale casting or forging workshops.
Serial number | Type Item | Q3113BI | Q3113BII | Q3110BI | Q3110BII | |
1 | Diameter of rolling drum | mm | Φ1300 | Φ1300 | Φ1000 | Φ1000 |
2 | Loading capacity | kg | 600 | 600 | 300 | 300 |
3 | Productivity | kg/h | 2500-3500 | 2500-3500 | 600-1500 | 600-1500 |
4 | Power(excluding dedusting) | Kw | 14.5 | 16.3 | 9.7 | 11.9 |
5 | Maximum weight of workpiece | kg | 30 | 30 | 15 | 15 |
6 | Rotational speed of rolling drum | r/min | 2.5 | 2.5 | 3 | 3 |
7 | Abrasive flow rate | kg/min | 160 | 160 | 120 | 120 |
8 | Ventilation capacity | m3/h | 2000 | 2800 | 800 | 2000 |
9 | Dedusting efficiency | % | 85 | 99 | 85 | 99 |
10 | Outline dimensions | mm | 2550*2341*2250 | 4362*2341*2250 | 2078*2458*1861 | 3870*2458*3370 |
casting iron base
not weldment
we have two type of material for drum liner:
special casting iron liner wear resistant rubber liner
drum type blast liner Spare parts show:
Q3110BII

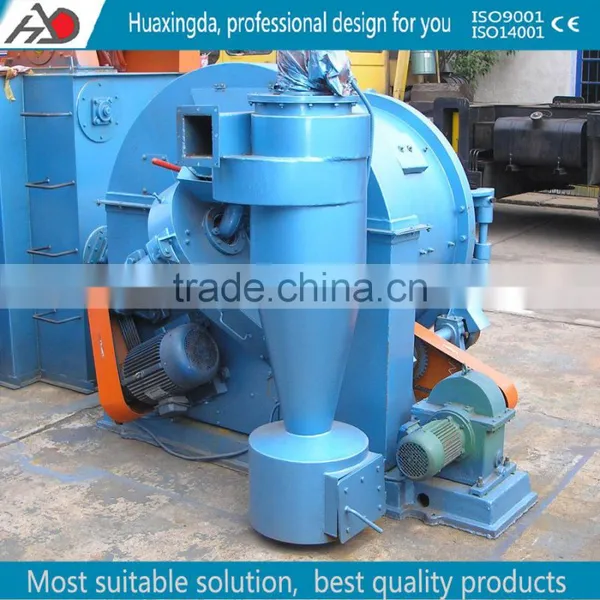

dust ventilation rate 2000CBM/Hr Dust collector
Note:
The above technical parameters and specification are for reference only, we will according to your workpiece size and design products.
So please inform us your workpiece size ,we could design a suitable cleaning machine for you .
1. Professional senior engineer to find the best solutions for you
2.16 years' product experience in shot blasting machinery industry.
3.Reply your inquiry in 24 working hours.
4. As an honest seller,we always use superior raw material,advanced machines,skilled technicians to ensure our products to be finishied in high quality and stable feature.
Welcome to contact us or visit our company.
