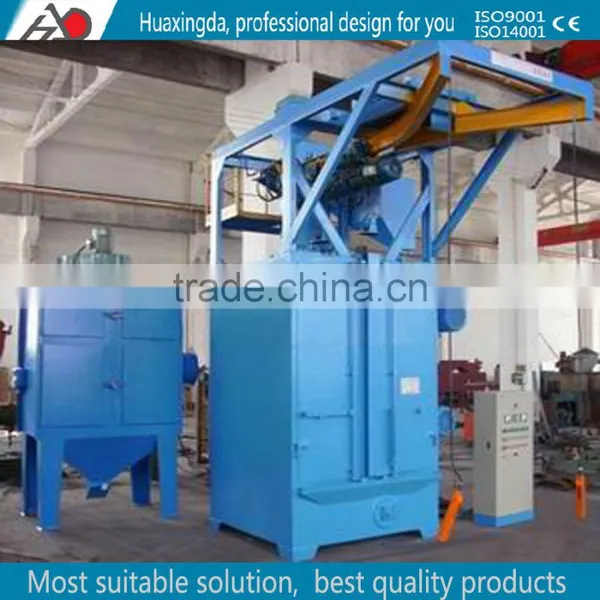

Q376 Steel structures hanger type shot blasting machine for Large Casting Parts
- 10 Set / Sets per Month
- Qingdao Port
- T/T L/C D/P D/A Credit Card PayPal
- Supports multi-hook customization of Pumingwei hook-type shot blasting machine surface metal rust removal equipment
- tumble rubber belt shot blasting machine for foundry plant crawler shot blaster
- smaller casting parts surface treatment crawler shot blasting machine
- Q326 Q324 Q3210 tumble belt shot blasting machine crawler belt shot blasting machine
- Tumble belt shot blasting machine for nuts and bolts surface treatment
- Tumbler belt shot blasting abrator machine wheel crawler shot blaster
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | HXD |
Model Number: | Q376 | Feature: | Critical Cleaning / Residue Free | Fuel: | Electric |
Certification: | CB, CE | Use: | Descaling / Stripping | Cleaning Process: | Other, steel shot, steel grit |
Cleaning Type: | Clean-In-Place (CIP) | Industry Used: | Other, foundry | Material: | Metal / Coil |
Power(W): | 19kw | Dimension(L*W*H): | 4429*2850*3443 | After-sales Service Provided: | No overseas service provided |
Product Description
Q37 series hook type shot blaste specification
Item | Unit | Q376 | Q376B | Q378c | Q3710 | Q3720 | Q3730 | Q3750 | Q37100 |
Maximum weight of cleaning | Kg | 500 | 600 | 800 | 1000 | 2000 | 3000 | 5000 | 10000 |
Abrasive flow rate | Kg/min | 2*200 | 2*200 | 2*250 | 2*250 | 3*250 | 3*250 | 4*250 | 5*250 |
Ventilation capacity | m3/h | 5000 | 5000 | 5000 | 5000 | 9000 | 11000 | 14000 | 16000 |
Lifting amount of elevating conveyor | Ton/Hr | 24 | 24 | 30 | 30 | 45 | 45 | 60 | 75 |
Separating amount of separator | Ton/Hr | 24 | 24 | 30 | 30 | 45 | 45 | 60 | 75 |
Overall size of suspender | mm | Ø600 *1200 | Ø700 *1200 | Ø1000 *1600 | Ø1200 *1800 | Ø1400 *2200 | Ø1600 *2300 | Ø1800 *2500 | Ø3000 *3000 |
Features:
1. This Hanger Hook Type Shot Blasting Machine is a kind of high efficency shot blasting machine with non-pit.
2. Large inner available cleaning space, compacted structure and scientific design. Can be designed and manufactured according to the order.
3. No special request for the workpiece structure. Can be used for different kinds of workpieces.
4. Widely used in cleaning and strengthening for Fragile or Irregularly Shaped Parts, Medium-sized or Large Parts, Die Cast Parts, Sand Removal and External Finishing.
hoist work piece spinning device blast wheel ware parts
inside blasting chamber liner:
abrasive feeder polyurethane sealing liner steel plate mingled rubber curtain
blastwheel wear parts structure and service time
blast wheel wear parts service time
wear parts chemical analysis table:
