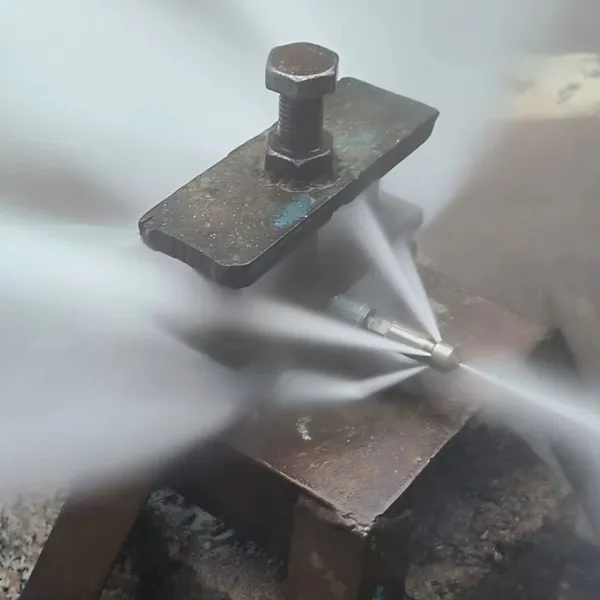

High Pressure Water Jetting Nozzle Rotary Nozzle Industrial Pipe Cleaning
US$ 350.00
≥1 Piece
Key Specifications
Get Latest Price
warranty:
3 Months
weight (kg):
0.5
place of origin:
shenyang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Industrial Pipe Cleaning Rotary Nozzle Self-rotating Nozzle for Industrial Pipe CleaningUS$ 350.00MOQ: 1 Piece -
Turbo Nozzle for Surface Strong Dirt Cleaning Water Jet Cleaning Nozzle Rotary Pipe Cleaning NozzleUS$ 200.00MOQ: 1 Piece
-
1500bar High Pressure Water Spray Gun Overflow Water Jetting Gun Drum Valve GunUS$ 260.00MOQ: 1 Set
-
22kpsi 1500bar 40kpsi 2800bar Spitfire Rotating Nozzle High Pressure Water Jetting Nozzle Self-rotating NozzleUS$ 500.00MOQ: 1 Piece
-
New 1500bar High-Pressure Foot Valve for Industrial Pipe Cleaning Flexible Lance Control Working Cleaning Equipment PartsUS$ 260.00 - 320.00MOQ: 1 Piece
warranty
3 Months
weight (kg)
0.5
place of origin
shenyang, China
brand name
RELIABLE
condition
New
type
cleaning nozzle
name
high pressure nozzle
material
stainless steel
pressur
1500bar/1800bar
cleaning purpose
industrial pipe cleaning
size
13mm 18mm 14mm
connect thread
M10*1
Video outgoing-inspection
Provided
Machinery Test Report
Provided
high pressure water jetting nozzle
Here has Various styles cleaning nozzles for different cleaning purpose, such as 0°,25°,40°,65°, turbo nozzle, Barracuda nozzle to match water spray gun for surface strong dirt cleaning; mul-ti hole jetting nozzle, rotary nozzle for industrial pipe cleaning, water sand spray nozzle for rust paint removal, water jetting nozzle for Steel sheet pile pilot hole and concrete cutting, etc.
High pressure water jet steel sheet pile pilot hole
24Mpa 170L/min high pressure water jetting machine, better used for assist steel sheet pile pilot hole
Model |
Rate pressure |
Water flow |
Electric motor drive |
Diesel engine drive |
RLB4505 |
24MPa/240bar |
170 L/min |
90kw |
145kw |
RLB5804 |
22Mpa/220bar |
220 L/min |
110kw |
145kw |
RLB8504 |
20Mpa/200bar |
320 L/min |
132kw |
173kw |
Name: High pressur plunger pump
Model: RLB4505
Rate pressure: 24Mpa/240bar
water flow:170 L/min / 45 GPM
Pump speed： 405rpm
plunger diameter： 45mm
with pressure gauge and safety valve;
Name: Diesel engine
engine power: 120kw; 6-cyliner
Speed： 1500rpm
start type: electric start, 24v/100Ah
contact with high pressure pump
Overflow water spray gun
Pressure has 1500bar/2800bar
Overflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
High pressure rubber hose
Inner diameter:1/2'' , 3/8'', DN8, DN10, DN12, DN13; etc
Pressure: Max.2800bar;
material: ruber with wire winding inside
Barracuda nozzle / turbo nozzle
4-jet rotating nozzle
better for surface strong dirt cleaning
Flexible lance
Pressure 1500bar/2800bar/3035bar
Size: DN8-10-12mm;
Contact thead: M22*1.5 & M24*1.5
Length can be customized
Overflow foot control valve
Pressure has 1500bar/2800barOverflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
Contact thead: M22*1.5 & M24*1.5
material: stainless steel

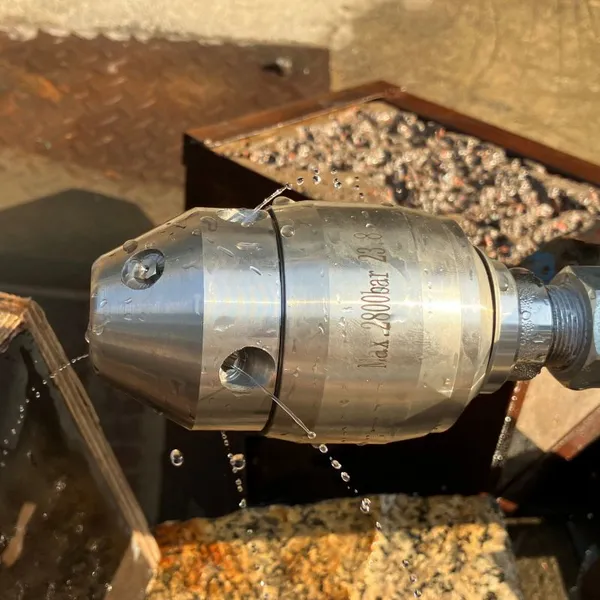

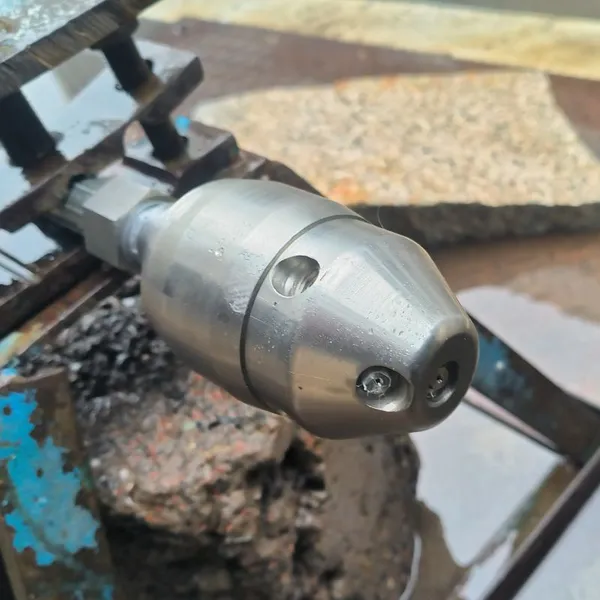

industrial Pipe Cleaning nozzle
Size: DN13,24,40, etc;
7-jet rotating nozzle;
Pressure: 1500bar/2800bar
for industrial inner pipe cleaning
Q1：What kind of nozzle shoud I choose?A1：It's according to your cleaning purpose, it's better to contact saler with your request, so that we can recommend suitable nozzles for you.
Q2: Are you trading company or manufacturer?
A2：We are manufacturer here for over 10years, can OEM machines according to customized request.
Q3: How do I choose the right nozzle for my application?
A3: If for assist pilot hole piling, need to confirm the type and size of the pilot. 4# steel sheet pilot suggest 170L/min, 6# steel sheet pilot, Cement wave pile， PC pilot, suggest 320L/min. or can customized according to your request.
Q4:What type of water should be used in these machines?
A4:Clear water is recommended. Avoid using water with high mineral content or contaminants to prevent damage to the machine.
Q5:What are the power options for high-pressure water jetting machines?
A5: Electric: Suitable for indoor use and quieter operation. Diesel: Preferred for outdoor use and higher power needs. Gasoline: Portable option, ideal for remote locations.
Q6:Can I customize a high-pressure water jetting machine for specific needs?
A6:Yes, many manufacturers offer customization options to tailor the machine for specific applications or requirements. Contact the manufacturer for details.
Q7:How do I choose suitable model?
A7:You can confirm your working purpose request, we have rich experience
Q8:How long is your delivery time?
A8:Normal 3-10 days; Customized order need to confirm with the seller.
Q9:What Certificate do you have?
A9:We can offer CO ( Certificate of Origin）， FA（Form A）, FE, FF; CE certificate,
Q10:Which is your shipping port?
A10: Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
Q11:Do you offer training or instructional materials on how to use your machines safely and effectively?
A11:We offer online training, and have video to introduce machine and operating. also if you need, our tech. can come to your country for training.
