Home > Products > shot blasting > QR3210 tumble shot blasting machine

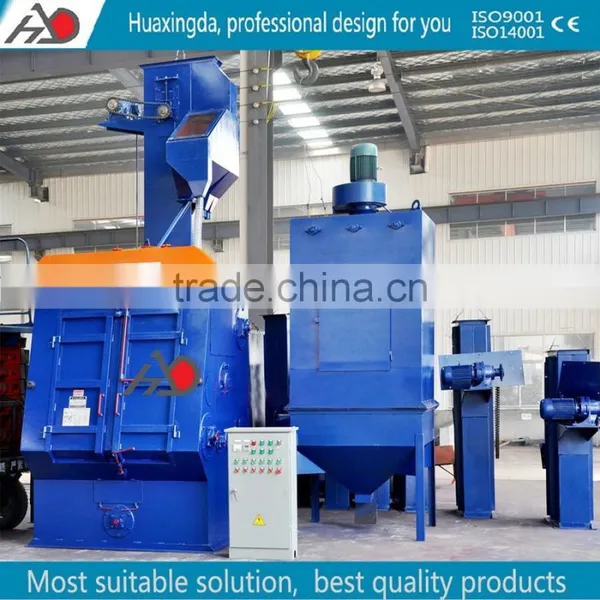

QR3210 tumble shot blasting machine
- 10 Set / Sets per Month
- Qingdao Port
- T/T L/C D/P D/A Credit Card
- Supports multi-hook customization of Pumingwei hook-type shot blasting machine surface metal rust removal equipment
- tumble rubber belt shot blasting machine for foundry plant crawler shot blaster
- smaller casting parts surface treatment crawler shot blasting machine
- Q326 Q324 Q3210 tumble belt shot blasting machine crawler belt shot blasting machine
- Tumble belt shot blasting machine for nuts and bolts surface treatment
- Tumbler belt shot blasting abrator machine wheel crawler shot blaster
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | HXD |
Model Number: | QR3210 | Feature: | Non-Toxic, Rust / Corrosion Inhibitor | Fuel: | Electric |
Certification: | Other, ISO140001 | Use: | Descaling / Stripping | Cleaning Process: | Other, steel shot, steel grit |
Cleaning Type: | Clean-In-Place (CIP) | Industry Used: | Other, casting desanding | Material: | Metal / Coil |
Power(W): | 24.3KW | Dimension(L*W*H): | 3976*2600*4768 | After-sales Service Provided: | No overseas service provided |
Product Description
Rubbler belt
Blast wheel wear parts service time:
Specification:
No. | item | Q326EA | QR3210 |
1 | productivity | 0.6-1.2 | 2-2.2 |
2 | feeding amount | 200 | 600 |
3 | maximum weight of single piece | 10 | 30 |
4 | diameter of end disk | Φ 650 | Φ 1000 |
5 | effective volume | 0.15 | 0.3 |
6 | abrasive flow rate | 120 | 250 |
7 | ventilation capacity | 2000 | 3500 |
8 | power consumption | 12.6 | 24.3 |
9 | outline dimesion | 1500*1880*3900 | 3976*2600*4768 |
10 | Crawler material | rubber | rubber |
We offer two distinct categories of Tumblast or tumble blast machine. Batch Type Tumblast machines process parts batch by batch, in a stop-start operation, and Continuous Tumblast machines pass the parts through the machine and onto the next process in the operation.
This series are the optimum solution for descaling, sand removing,
roughening and deburring of bulk goods.
the workpiece loading capacity from 200kg to 3500kg.
• 1 to 2 blast wheel is optional according your requirement of efficiency.
• automatic control via PLC is also optional, to detect the abrasive jam in bucket elevator or other conveyor.
• Hydraulic, cable, or soft loading
• High life time by material optimization and by use of management.
load automatically option:
The following applications can be undertaken:
• Desanding and decoring of casting
• Descaling of castings, forgings and heat treated parts
• Shot peening (without process security)
• Deburring of plastic and rubber parts
tumlast machine Q32 Series are used for bulk, tumble proof material. The product range includes a comprehensive range of machines for desanding and decoring castings and for descaling forgings or heat-treated work pieces. The work pieces are continuously tumbled during the blasting process. our expertise in this field enables the development of customized solutions which can include automatic loading/unloading of work pieces and removal of abrasive residues from the part.
Q326C tumble type shot blasting machine
Belt driving blast wheel
