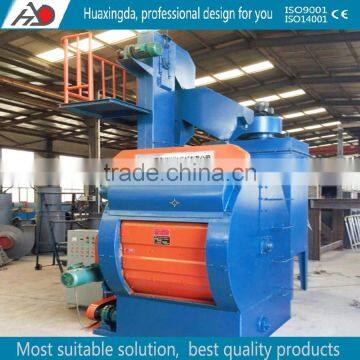

Multi Tumbler Type shot blasting machine | |||||
NO. | itemtype | QTT720 | QTT1300 | QTT1500 | |
1 | diameter of rolling drum | mm | 720 | 1300 | 1500 |
2 | loading capacity | kg | 200 | 300 | 500 |
3 | productivity | kg/h | 1200-1500 | 1800-2200 | 1500-1800 |
4 | power | kw | 18.5 | 24 | 30 |
5 | maximum weight of work piece | kg | 5 | 10 | 15 |
6 | rotational speed of rolling drum | r/min | 2.5 | 2.5 | 3 |
7 | abrasive flow rate | kg/min | 180 | 220 | 260 |
8 | ventilation capacity | m³ /h | 2000 | 2800 | 3500 |
9 | dedusting efficiency | % | 99 | 99 | 99 |
10 | outline dimension | mm | 2550*2341*2250 | 4326*2341*2250 | 2078*2458*1861 |
Depending on the work piece shape & size and the blast media size, the
screens in the barrel can be equipped with special perforations. This completely
prevents small parts jamming in the media vacation holes and guarantees
100% batch integrity. Even very small work pieces can be perfectly
processed in the rotating drum blaster.
working principal diagram
SEW reducer electric element
