Q37 series hook type shot blaste specification
Item | Unit | Q376 | Q376B | Q378c | Q3710 | Q3720 | Q3730 | Q3750 | Q37100 |
Maximum weight of cleaning | Kg | 500 | 600 | 800 | 1000 | 2000 | 3000 | 5000 | 10000 |
Abrasive flow rate | Kg/min | 2*200 | 2*200 | 2*250 | 2*250 | 3*250 | 3*250 | 4*250 | 5*250 |
Ventilation capacity | m3/h | 5000 | 5000 | 5000 | 5000 | 9000 | 11000 | 14000 | 16000 |
Lifting amount of elevating conveyor | Ton/Hr | 24 | 24 | 30 | 30 | 45 | 45 | 60 | 75 |
Separating amount of separator | Ton/Hr | 24 | 24 | 30 | 30 | 45 | 45 | 60 | 75 |
Overall size of suspender | mm | Ø600 *1200 | Ø700 *1200 | Ø1000 *1600 | Ø1200 *1800 | Ø1400 *2200 | Ø1600 *2300 | Ø1800 *2500 | Ø3000 *3000 |
Features:

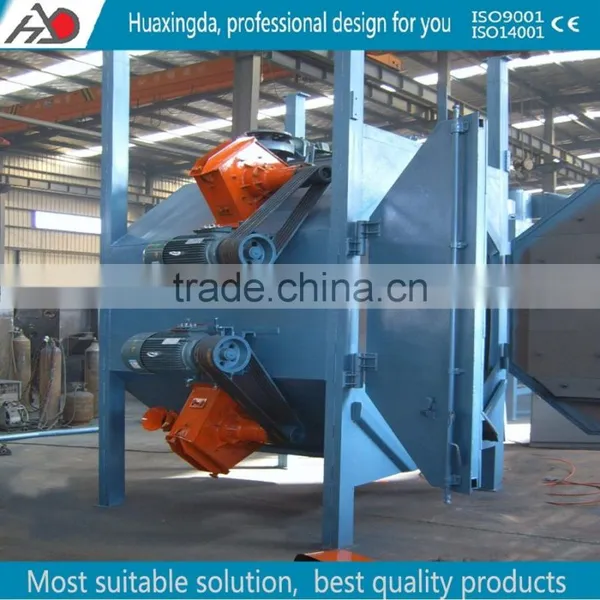

1. This Hanger Hook Type Shot Blasting Machine is a kind of high efficency shot blasting machine with non-pit.
2. Large inner available cleaning space, compacted structure and scientific design. Can be designed and manufactured according to the order.
3. No special request for the workpiece structure. Can be used for different kinds of workpieces.
4. Widely used in cleaning and strengthening for Fragile or Irregularly Shaped Parts, Medium-sized or Large Parts, Die Cast Parts, Sand Removal and External Finishing.

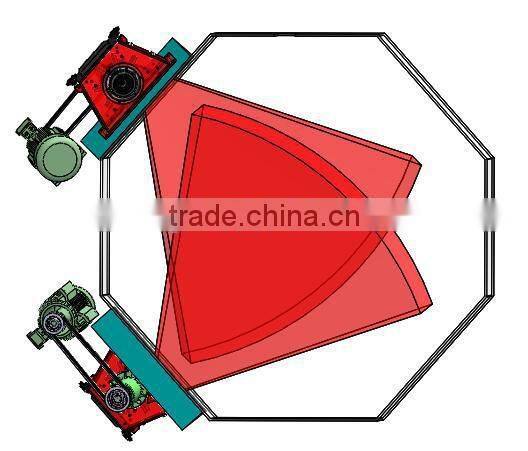

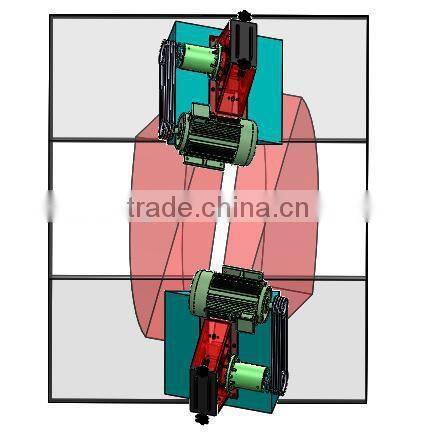

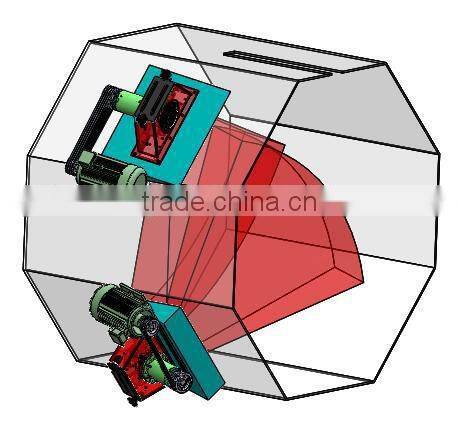

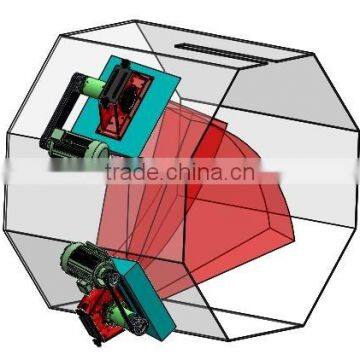

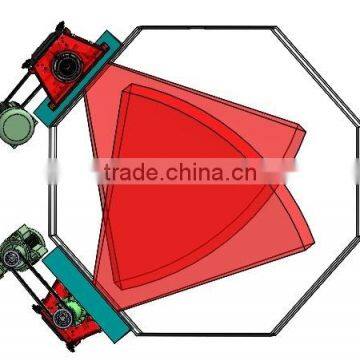

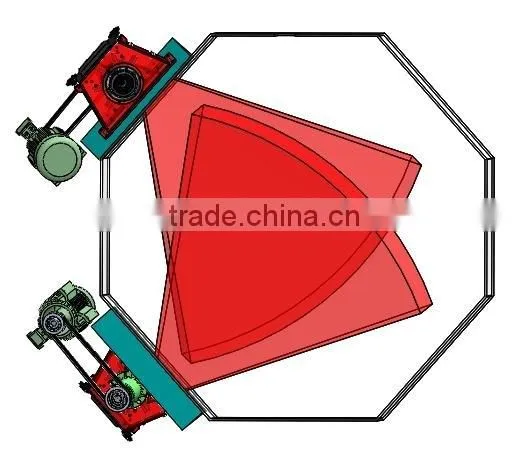

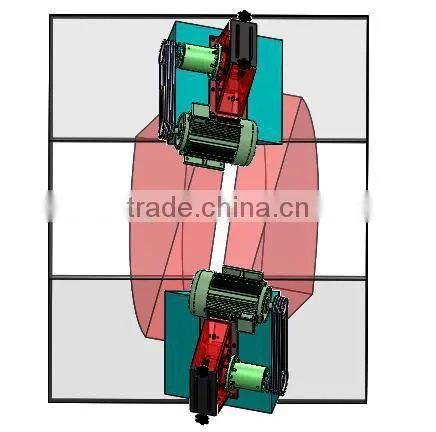

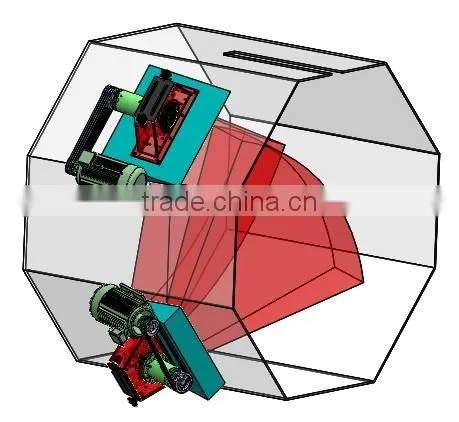

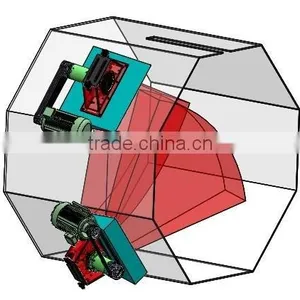

5. all-round shot blasting design, total 4 sets of blasting wheel fitted at two opposite side, assure the workpiece get all-round and homogeneous shot blasting.
hoist work piece spinning device blast wheel wear parts
inside blasting chamber liner:
abrasive feeder polyurethane sealing liner steel plate mingled rubber curtain
blastwheel wear parts structure and service time
blast wheel wear parts service time
wear parts chemical analysis table:
