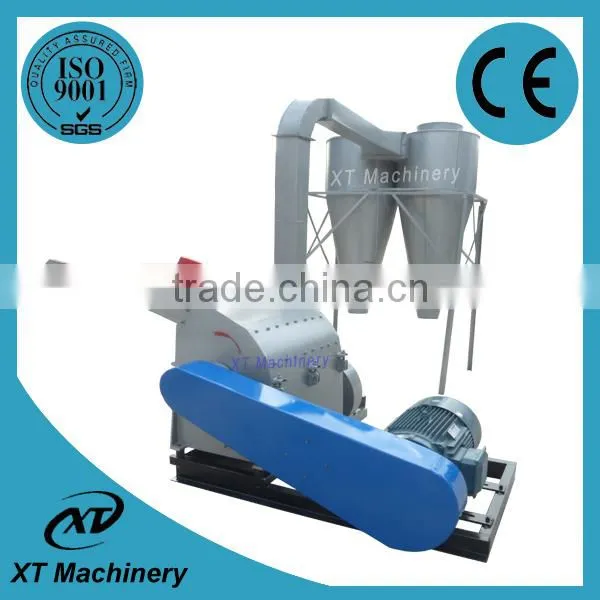

45kw 60hp 5t-6t/h wood hammer mill crusher for biofuel

  45kw 60hp 5t-6t/h wood hammer mill crusher for biofuel

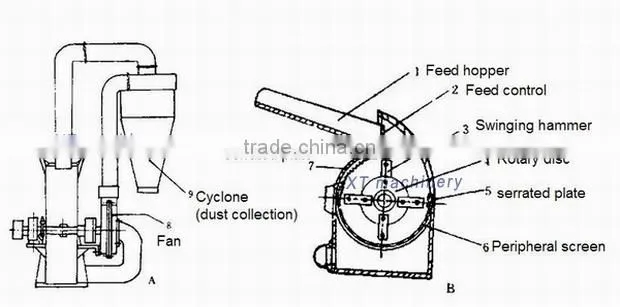

Description                                                                                                                                                       45kw 60hp 5t-6t/h wood hammer mill is essentially a steel box surrounding a rotor. Swinging hammers attached to the rotor, flail out when the rotor spins. A screen covers the discharge opening to regulate the finished particle size.

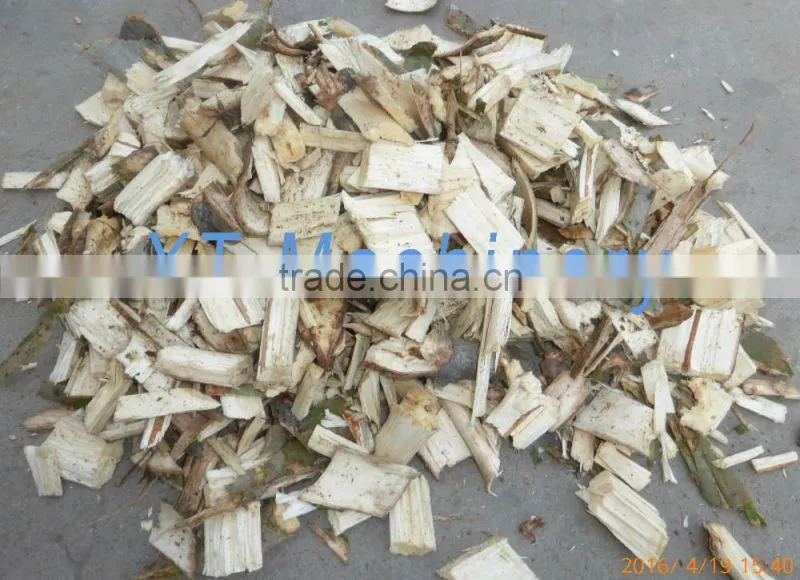

As wood chips enters into wood hammer mill , it is pulverized by a combination of hammer blows, particle on particle contact, and impact with the walls of the wood hammer mill. The material remains in the grinding chamber until it is able to pass through the screen covering the discharge area.

Features

1.Compact design with high production efficiency, easy operation and maintenance;

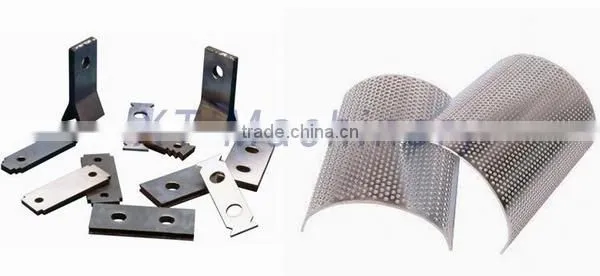

2.Quenched manganese steel hammers with hardness HRC56-62 ,shows excellent wear-resistance;

3.Upper and lower housing made from cast iron or carbon steel for long service life;

4.Different mesh screens available

5.Electric motor or engine powered

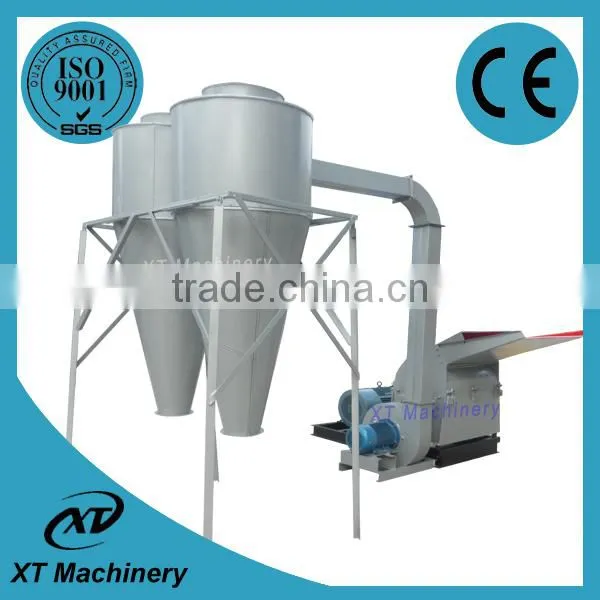

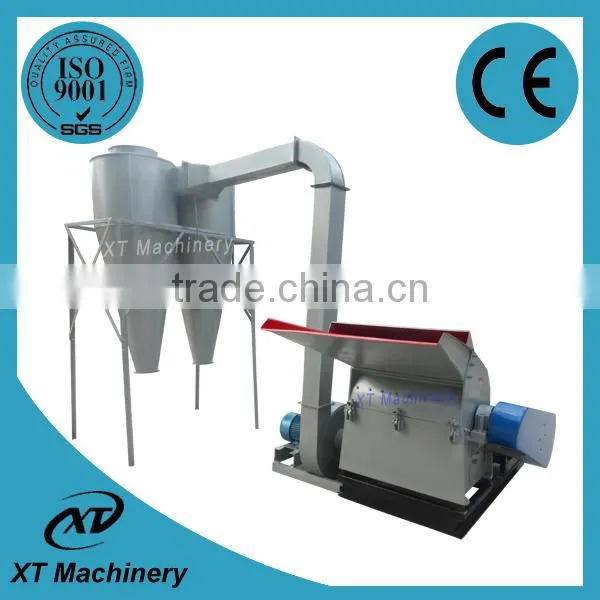

6.Dual cyclone dust collector

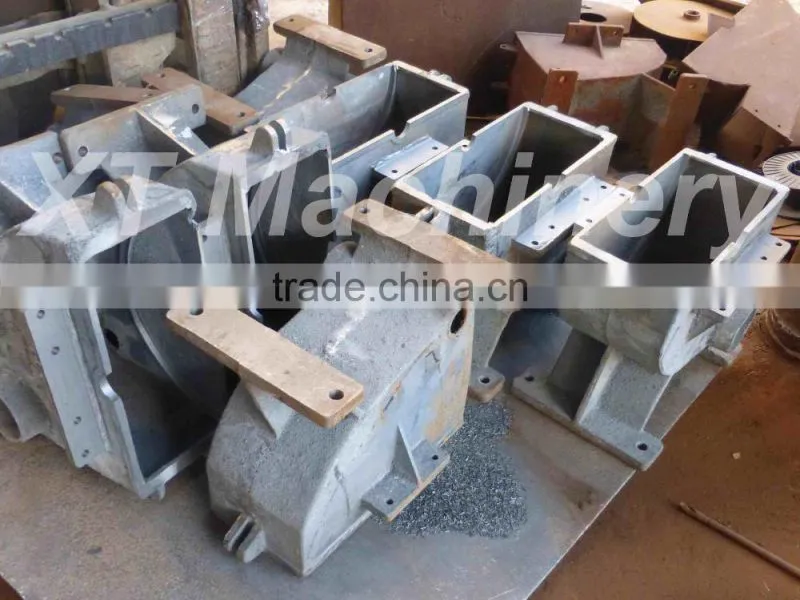

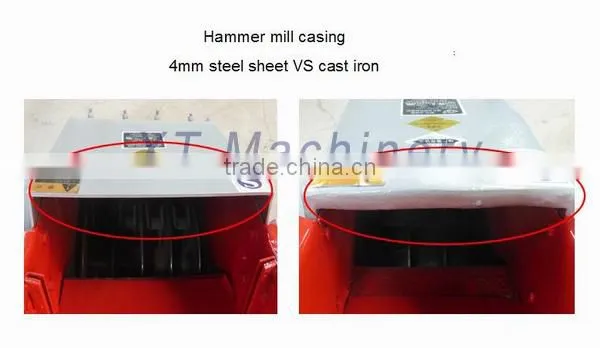

                                                                                    casted Upper and lower hammer mill housing

Application

45kw 60hp wood hammer mill is widely uesd in industrial power plant, commercial paper mill, individual mushroom farmer, housing heating, and many industries

1. Biofuels

 After Crushing wood chips into powder, it can be pelletized by a pellet mill, also called pellet press .This kind of wood pellets is featured with flexible storage and transportation, and most important, it's more environmentally friendly and without waste gas when burning

2. Mushroom cultivation

Sawdusts is critical to mushroom cultivition. By simply changing screen sieve, you can get desired mesh of wood dusts

3.Paper mill

Why PTO hammer mill?

A power take-off (PTO) is any of several methods for taking power from a power source, such as a running engine, and transmitting it to an application such as an attached implement or separate machines.

Voltage in countries differ from one another, or not accessible for some regions. 9FQ50-80 wood hammer mill can be driven by a 45kw electric motor or an 60hp engine for your choice.

Particle Size Refference

Parameter

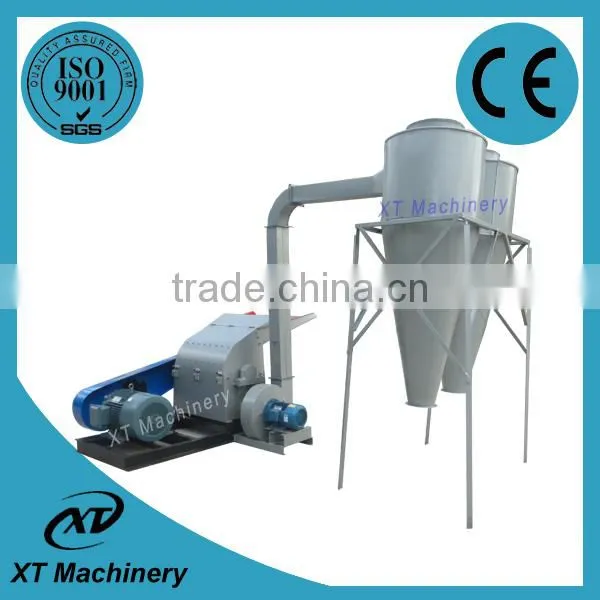

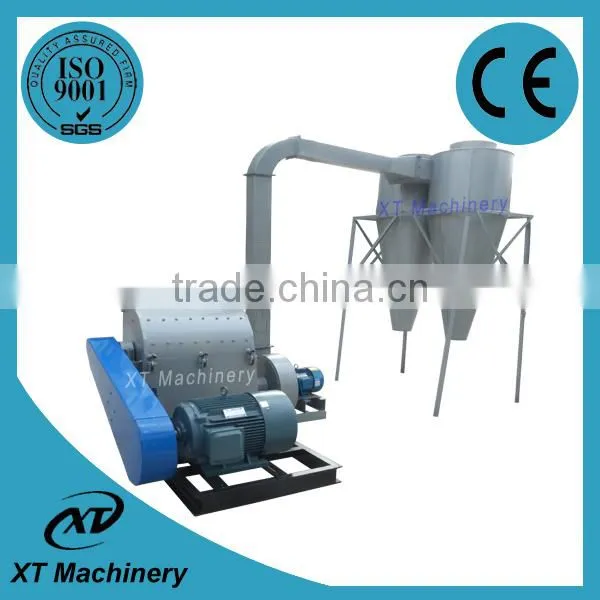

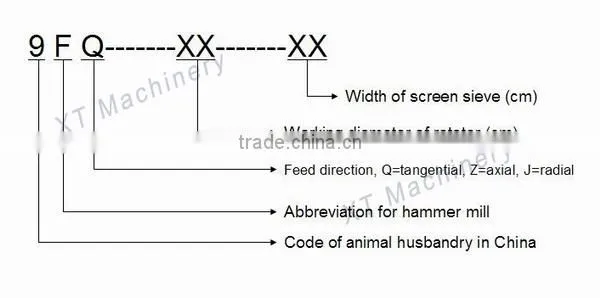

Description: 9FQ-50-80 wood hammer mill with dual cyclone

Weight: 1T

Size: 2500*2400*2700mm

Hammer Qty: 48 pcs

Grinding Chamber Width: 800mm

Rotor Dia.: 500mm

Speed: 3400 rpm

Power: 45kw or 60hp

Output: 5-6t/h

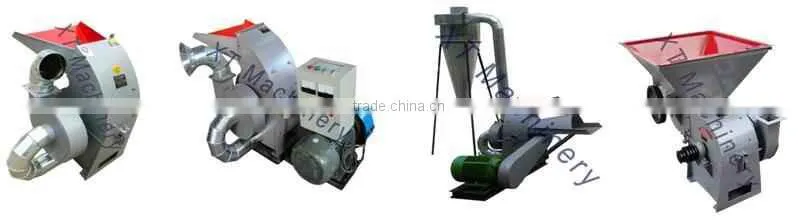

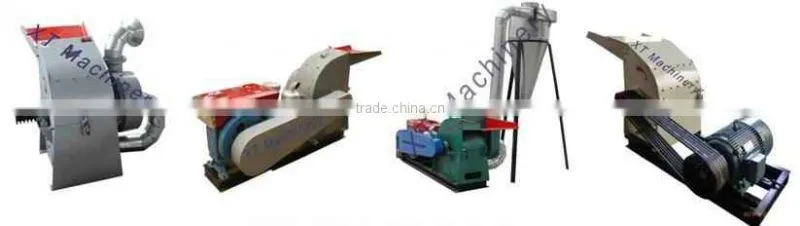

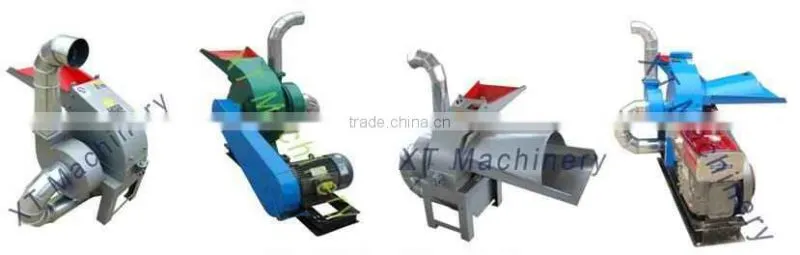

More Product
