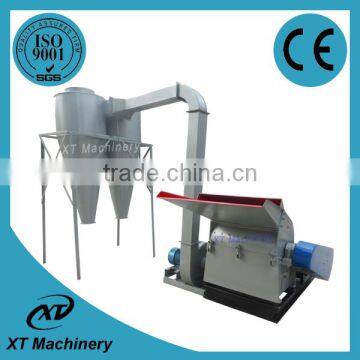

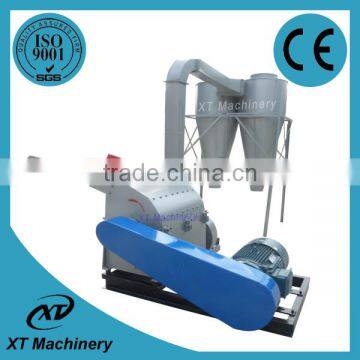

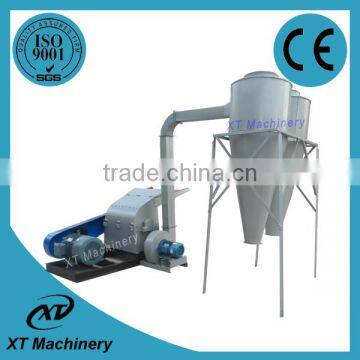

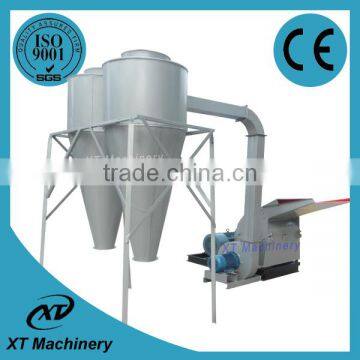

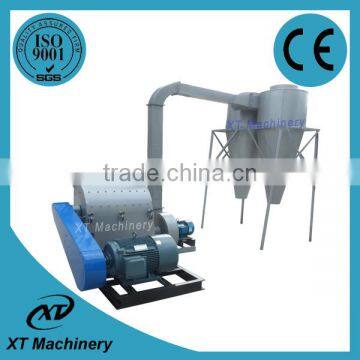

45kw 60hp 5t-6t/h sawdust making machine for hard board
Description
The correct combination of sawdust making machine type, screens, hammers, speed, feeding system, and air suction through the hammer mills is crucial in order to provide optimum conditions for subsequent processes, such as mixing and pelleting.
Decades of experience make us a reliable manufacturer in the supply of sawdust making machine for size reduction. 9FQ series hammer mills cover the need for fine or coarse grinding at high capacity.
Features
1.Compact design with high production efficiency, easy operation and maintenance;
2.Quenched manganese steel hammers with hardness HRC56-62 ,shows excellent wear-resistance;
3.Upper and lower housing made from cast iron or carbon steel for long service life;
4.Different mesh screens available
5.Electric motor or engine powered
6.Dual cyclone dust collector
casted Upper and lower hammer mill housing
Application
saw dust making machine is widely uesd in industrial power plant, commercial paper mill, individual mushroom farmer, housing heating, and many industries
1. Biofuels
After Crushing wood chips into powder, it can be pelletized by a pellet mill, also called pellet press .This kind of wood pellets is featured with flexible storage and transportation, and most important, it's more environmentally friendly and without waste gas when burning
2. Mushroom cultivation
Sawdusts is critical to mushroom cultivition. By simply changing screen sieve, you can get desired mesh of wood dusts
3.Paper mill
Why PTO hammer mill?
A power take-off (PTO) is any of several methods for taking power from a power source, such as a running engine, and transmitting it to an application such as an attached implement or separate machines.
Voltage in countries differ from one another, or not accessible for some regions. 9FQ50-80 sawdust making machine can be driven by a 45kw electric motor or an 60hp engine for your choice.
Particle Size Refference
raw material: wood chips
final product: 0.6mm mesh wood dust/flour/powder
Parameter
Description: 9FQ-50-80 wood chips hammer mill with dual cyclone
Weight: 1T
Size: 2500*2400*2700mm
Hammer Qty: 48 pcs
Grinding Chamber Width: 800mm
Rotor Dia.: 500mm
Speed: 3400 rpm
Power: 45kw or 60hp
Output: 5-6t/h
