The raw material of wood pellet machine:
The application of pellet machine
1The wood pellet machine can not only used for hard sawdust, wood,tree branch,corn cob,wheat straw,corn stalk etc.
2 The pellet machine also can used for soft material,such as rice husk, palm fiber,coconut shell, peanut shell, wood sawdust etc.
The detail information of wood pellet machine
Advantages of wood pellet machine:
1) wood pellet machine simple structure, widely application, low noise.
2) Ni,Cr alloy material made pellet machine ring die ,ring hole polishing,heat treatment,more wearable.
3) pellet high hardness, smooth surface, internal maturation degree,
4) pellet 4,4.5,6,8,10,12 mm, meet clients needs.
5) automatic adjust of wood pellet length
6) stable working , Mechanical Work Fine Appearance
7) wood pellet machine with reasonable structure, considerable feeding conveyor.
Working principle of wood Pellet machine:
1. Main engine drives with high precision gear, ring die in quick detaching encirling hoop type ,output higher 20% than belt drive.
2 The complete machine transmission parts include electric motor with Switzerland SKF high quality bearing, ensure high efficiency ,stable and low noise drive.
3 . Large type strengthen feeding conditioner in entire stainless steel with frequent speed control.ensure the high quality of pellet .
4. Adopt international advanced ring die processed by heat treatment vacuum furnace, lengthen useful lifte and pellet is smooth with high quality.
5. With full stainless steel door, flume and pull cutter which is convenient ,reliable,
6. Customized pellet machine with double layers or three layers.
The parts of pellet machine;

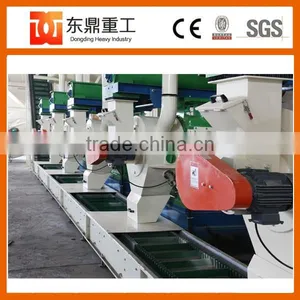

The working site of 1 ton per hour pelleting production line
The technology parameters of wood pellet machine:
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply Vacuum dryer,rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass prowder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.
