2017 New Type Biomass Pellet Machine /wood Pellet Machine/rice Husk Pellet Mill for Sale

2017 New Type Biomass Pellet Machine /wood Pellet Machine/rice Husk Pellet Mill for Sale photo-1

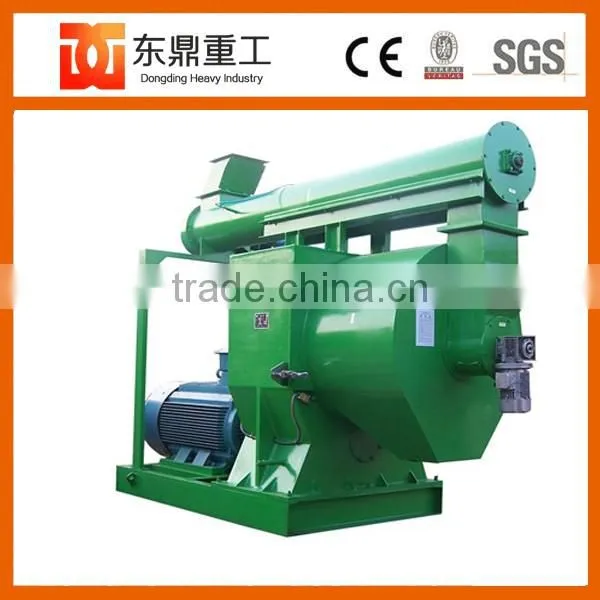

2017 New Type Biomass Pellet Machine /wood Pellet Machine/rice Husk Pellet Mill for Sale photo-2

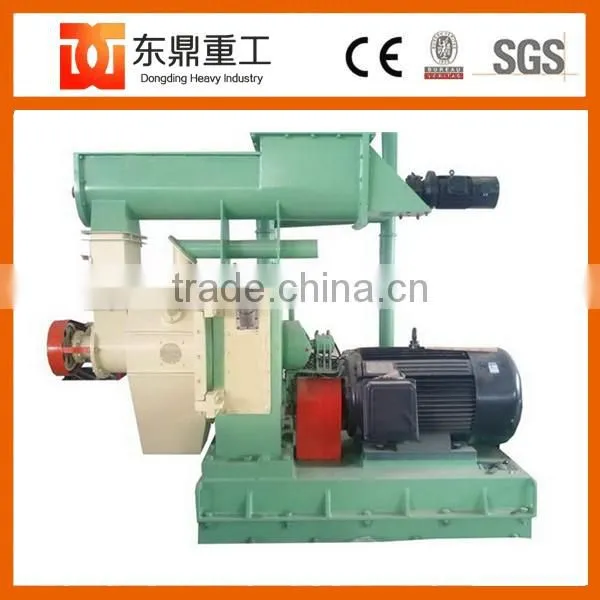

2017 New Type Biomass Pellet Machine /wood Pellet Machine/rice Husk Pellet Mill for Sale photo-3

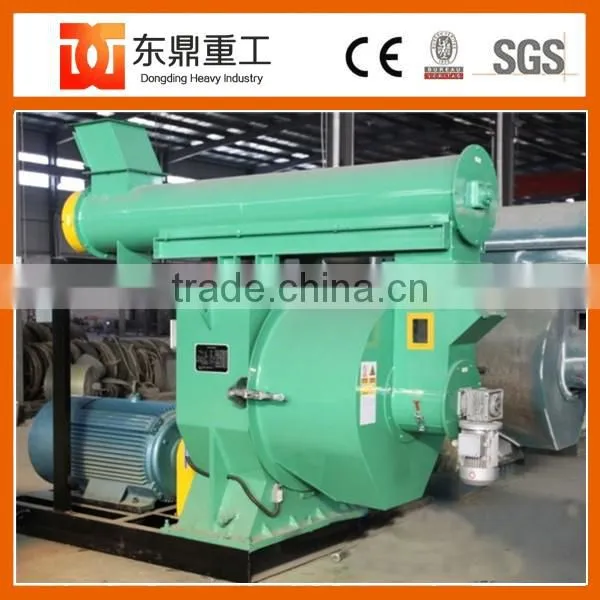

2017 New Type Biomass Pellet Machine /wood Pellet Machine/rice Husk Pellet Mill for Sale photo-4
US$ 22,000 - 22,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Dongding Heavy Industry wood pellet machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name Dongding Heavy Industry wood pellet machine
Model Number DB-WH420 wood pellet machine
Voltage 380V
Power(W) 90kw
Dimension(L*W*H) 3300x1200x3943
Weight 3 ton
Certification CE ISO SGS
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Main Features for Best complete wood pellets machine

1. Main drive adopts high accurate gear drive, with an output of about 20% higher than belt drive.

2. The drive part of the machine including motor optimize, the high quality SKF bearings and NAK oil seals

ensure high efficient and steady driving with low noise.

3. The imperative feeder device is adopted, which making the machine operate smoothly as the material like

wood sawdust, corn, wheat, and rice straw is very light, so they are needed to be pushed into pelleting

chamber by force.

4. Special design of feed conditioner adopts the frequency conversion speed regulating control to

guarantee wood pellets quality.

5. The ring die is made by international advanced technology, has long service life and ensure high quality of pellets.

6. The international advanced compensation type flexible coupling is of novel and compact structure, make sure operation with safety, low noise and less trouble.

7. Permanent magnet device can remove impurities in the pelleting process.

The raw material of wood pellet machine:

2017 New type biomass pellet machine /wood pellet machine/rice husk pellet mill for sale

The detail information of wood pellet machine





 The parts of wood pellet machine;

 2017 New type biomass pellet machine /wood pellet machine/rice husk pellet mill for sale

The working site of 1 ton per hour pelleting production line

2017 New type biomass pellet machine /wood pellet machine/rice husk pellet mill for sale

The pellets of Biomass/wood pellet machine

2017 New type biomass pellet machine /wood pellet machine/rice husk pellet mill for sale

The technology parameters of wood pellet machine:

Model

DB-WH350

DB-WH
420

DB-WH
5
08

DB-WH
558

DB-WH
678

DB-WH
768

Capacity(T/H)

0.5-0.8

0.8-1.5

1.5-2

2-2.5

2.5-3.5

4-5.5

Maimotor power

(kw)

45/55

90

132

160

185

285

Feeder power

(kw)

1.5

2.2

2.2

2.2

3

4

Ring die diameter

(mm)

350

420

508

558

678

768

Pellets diameter

(mm)

6-12

6-12

6-12

6-12

6-12

6-12

Packaging & Shipping

  Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.

2017 New type biomass pellet machine /wood pellet machine/rice husk pellet mill for sale

2017 New type biomass pellet machine /wood pellet machine/rice husk pellet mill for sale

Company Information

 Henan Donging Heavy Industry Equipment CO.,LTD  is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.



As a professional manufacture,we are supply Vacuum dryer,rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass prowder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.





2017 New type biomass pellet machine /wood pellet machine/rice husk pellet mill for sale



Our Services

 Pre-sales Service

  • Offering comprehensive technical and business consultation services;
  • Proposing th e most suitable scheme and equipment for our clients;
  • Designing and fabricating targeted products according to the special requirements of clients;
  • Training periodically high qualified service technician.



After-sales Service

  •   Highly inspecting equipments in every working procedure, quality comes first;
  •   Fast & Safe Delivery;
  •   Assisting our clients for foundation construction of equipments;
  •   Dispatching engineers to install and debug equipments;
  •   Training the first-line operators on site;
  •   Regularly visit clients to solve production problems;
  •   Providing life-long maintenance service;
  •   Providing technical exchanging;
