For pellet machine introduction as below :
1.pellet machine can press high crude fiber biomass waste and chemical fertilizer materials into 2-8mm diameter pellets. It is specially fit for biomass waste from wheat straw or rice straw, corn stalk, rice husk , palm fiber ,palm shell or groundnut shell , very hard wood etc., also can press fertilizer granules from animal manure, plant waste, chemical waste etc.,before pelletizing , raw materials should crush into fine powder, humidity keeps 15%-20%.
The raw material of wood pellet machine:
2.Biomass pellet machine adopts both common ring die pellet machine and flat die pellet machine advantages ,working principle is –roller assemble moves, the ring die keep stable,
producing high larger pressure, then pressing very low adhesive biomass waste into high density pellets --- 1.1-1.4ton/m³. Pellet length can be adjusted.
3.pellet machine contains hydraulic pressure pump, which can adjust pressure automatically to fit for different materials pressure ratio. When adjusted to the fit pressure, pressure will keep stable automatically, but other supplier pellet machine need to adjust pressure manually each time use, very trouble to operate.
The detail information of wood pellet machine
4.pellet machine also contains full automatical lubricate spare parts oil systems , which can lubricate spare parts oil automatically---- spare parts such as rollers, vertical shaft ,gears, bearings ,but other common supplier pellet machine needs to add oil each four working hours, very trouble to operate.
5.pellet machine adopts flat die pellet machine vertical feeding materials advantages , feed materials vertically and directly to pelletizing room , ring die and roller assemble works in a horizontal way, but other supplier common ring die pellet machine only can feed materials from gear box side and its ring ide work in a vertical level, their feeding speed and working efficiency are both very low. Its spare parts can not produce large pressure, especially inner big shaft and bearings , if can not produce large pressure ,after long continuous hours , will be easily broken.
6 pellet machine has one ring die with two--layers : the top layer and bottom layer .when pellet machine works , rollers will move ,toughing with ring die bottom layer , the ring die keeps stable ,in this way ,ring die top layer will rebound the splashed materials into bottom pressing room, increase its capacity and working efficiency, common ring die pellet machine will splash a lot materials outside when working.
7.When pellet machine works, its ring die only bottom layer make function(only bottom layer tough with roller assemble), once ring die bottom layer broken , turn over it and make the top layer to bottom, then it will work secondly time . So one ring die can use two times .also the top and bottom layer hole dimension can be different, so one ring die can press into two different diameter pellets . but other supplier pellet machine just have one layer and only can use one time
8.Alfalfa pellet machine works with air fan and bags dust filter, on one hand, it will clean dust, protect the environment effectively . on the other hand, it can cool pellet machine inner spare parts heat temperature,making sure long continuous working time.
The parts of pellet machine;
The working site of 1 ton per hour pelleting production line

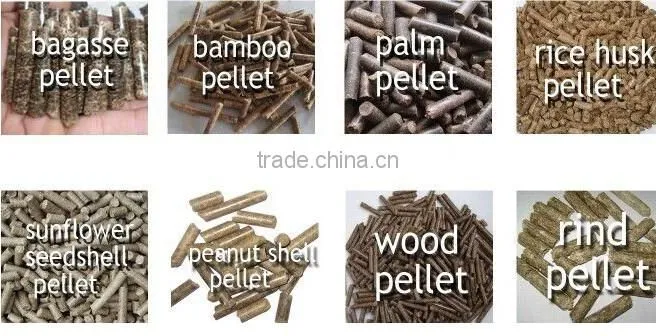

The pellets of Biomass pellet machine

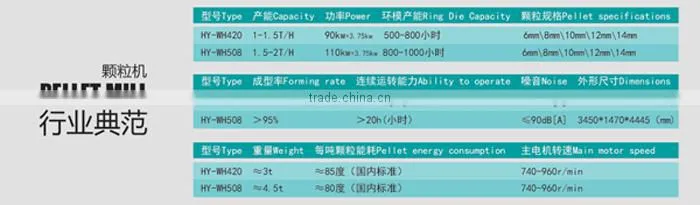

The technology parameters of wood pellet machine:
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply Vacuum dryer,rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass prowder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.
