Home > Products > Deduster and Dryer > Hot sale biomass wood shaving dryer for pellet production
Hot sale biomass wood shaving dryer for pellet production
- 15 Set / Sets per Month
- Shanghai
- T/T Credit Card
Product Details
Type: | Other, Drum Drying Equipment, Rotary drum | Place of Origin: | Jiangsu, China | ||
Brand Name: | RD | Model Number: | HGJ | Voltage: | 380V 50Hz |
Power(W): | 3KW | Dimension(L*W*H): | alterable | Weight: | 2t |
Certification: | CE/GOST/SGS | Warranty: | One year, One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Professional real manufacturer of wood shaving dryer!
Hot sale biomass wood shaving dryer for pellet production
Details of wood shaving dryer:

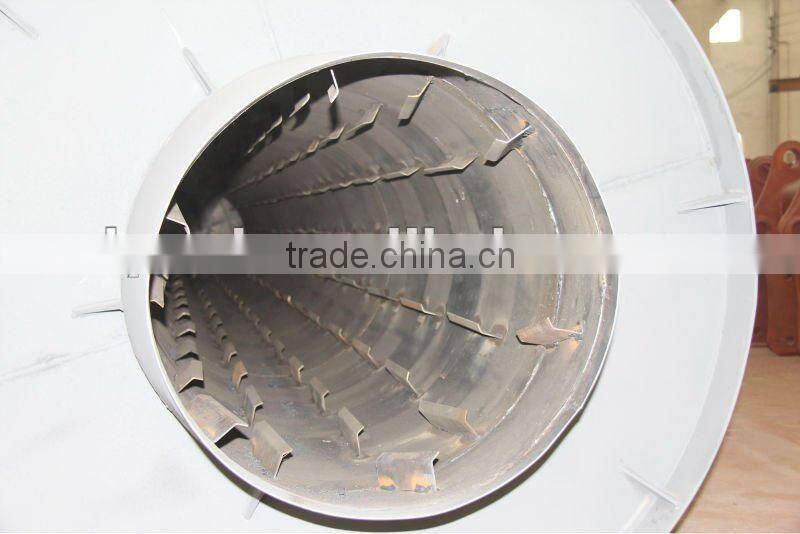

Three cylinder dryer
Diameter of Cylinder:2500mm
Length:9000mm
Motor power:2.2x2kw
Capacity:2-4t/h
Highest temperature of entering air:600°C
*With one Main Drive System;
*With one Auxiliary Drive System;
*With Dryer body;
*With Insulation system: include Material and Steel Plate; 40%-50% moisture can be changed
Features:
Widely used in drying big size pellet in environmental protection, biomass energy and other industries, applied for all kinds of pellet, powder material.,such as wood chip,wood powder and so on.Temperature below 400 °C,continuous and bunk drying. This kind of dryer can be single cylinder type and three cylinder type according to the customer’s specific requirment
Technical parameter
name | Size
| Inner Dia(mm) | Length of the dryer cylinder | Main motor(KW) | Capacity(t/h) | Highest temperature (°C)) |
Three cylinder dryer | φ2.0×9 | 2000 | 9000 | 2.2X2 | 1-3 | ≤600°C |
φ2.5×9 | 2500 | 9000 | 2.2x2 | 2-4 | ||
φ3.0×9 | 3000 | 9000 | 3.0x2 | 3-5 | ||
Single cylinder dryer | φ1.5×15 | 1500 | 15000 | 3.0x4 | 1-2 | |
φ2.0×15 | 2000 | 15000 | 3.0x4 | 2-3 | ||
φ2.3×18 | 2300 | 18000 | 4.0x4 | 3-5 |
| |
φ2.5×23 | 2500 | 23000 | 5.5x4 | 5-8 |
|
About us:
We are specialized in designing and manufacturing poultry feed,aquatic feed pellet machinery,biomass pellet machinery and the complete production line(all auxiliary equipment) with CPM advanced technology.
The current products include: hammer mill, ingredient weighing system, mixer, pellet mill, counter-flow cooler, dryer, crumbler, rotary screener, liquid adding equipment, pulse filter equipment, horizontal and vertical conveying equipment, links and gates, permanent magnet cylinder, and de-iron equipment etc.
Liyang Rongda Machinery CO.,LTD. located in Daitou Industrial Zone with 25000 square meters area,Liyang city,Jiangsu province,China.

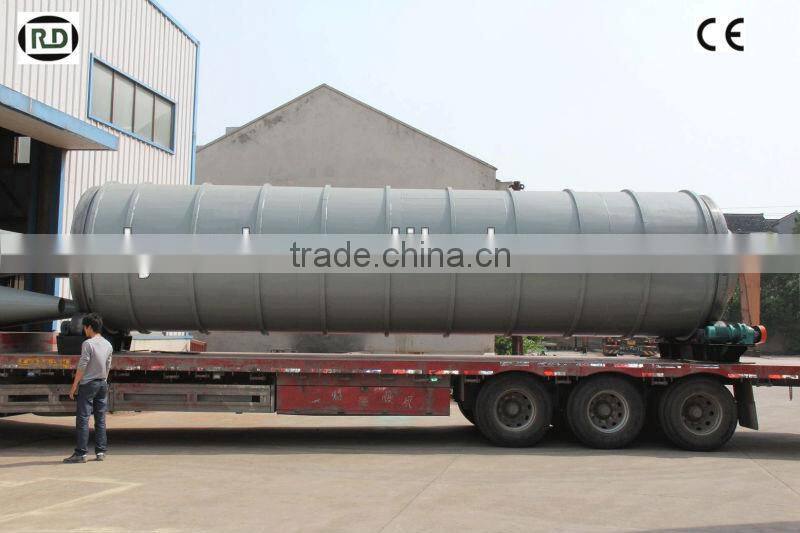

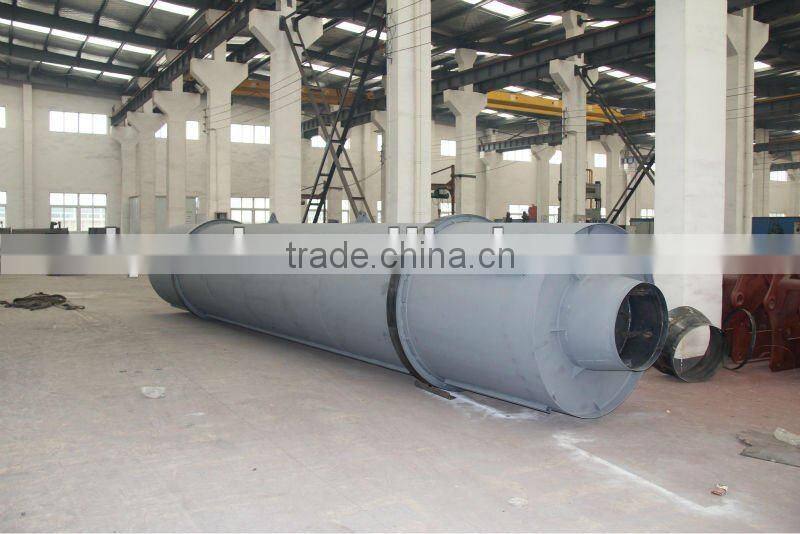

Wood shaving dryers are made by Rongda Company.
Wood chips after chipping are ready for drying:
Our certificates:ISO9001:2000,CE,GOST,SGS

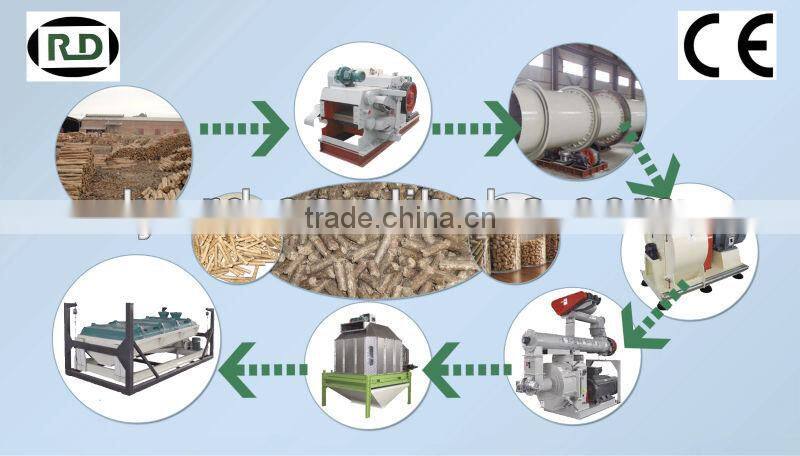

wood pellets making line Production Sequence
1. Chipping Process
2. Drying Process
3. Grinding Process
4. Pelletizing Process
5. Cooling and Sieving Process
6. Packing Process
About Service
We insist on "Quality is the soul of company" and take customers as our god, owned outstanding R&D team with the sense of innovation and cooperation, timely and effectively after-sales service team, professional installation guidance team with 10 years experience. We devote to all-round service of all the products from shipment to maintenance.
Our professional service includes: Free training, Guidance Installation and Debugging.
Guaranteed Time: One Year
If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
Thank you for your reliance and support!
Frequently Asked Questions:
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer, which has almost 20 years of experience in this industry.
2. Q: How can I get to your company?
A: You can get a flight to Nanjing Lukou Airport. We are just about 40-50mins away from Nanjing Airport.
You may also come to our city,Liyang city by High speed Railway,just 20-30mins from Nanjing city.
3. Q: How long is your guarantee?
A: One year(Calculated from the equipment arrives the customer’s side.). After this period we will definitely support you when needed. You will be welcome to contact us with any problem may happened.
4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
5. Q: Do you have some foreign customers using your equipment?
A: yes, we have.our company has established business relationships with customers in Russia,German,Slovakia,Ukraine,Vietnam,Pakistan, the Philippines, Indonesia, Thailand, Pakistan, Egypt ,Iraq, Iran,Jordan,Saudi Arabia,Syria, Libya etc.
Why choose from us?
A.Good reputation
Because of the good quality and credit,our company are with good reputation both at home and abroad.
B.Factory direct supply
This ensure the competitive price available and brand care.
C.Advanced technology adopted
American CPM advanced technology with rich experience on site for installation and debugging,which has the good ability to provide with aftersale service.
D.Best and reasonable structure design of the pellet mill
This make sure the durability of the machinery running.
Gear drive of the pellet mill which make the pellet machine stronger for making the wood pellets.Compared with belt drive,with lower consumption for the same capacity.
