Specifications
crushing plant1.Long serving life
2.Low cost and low noise
3.ISO9001:2000&CE
4.Low energy consumption

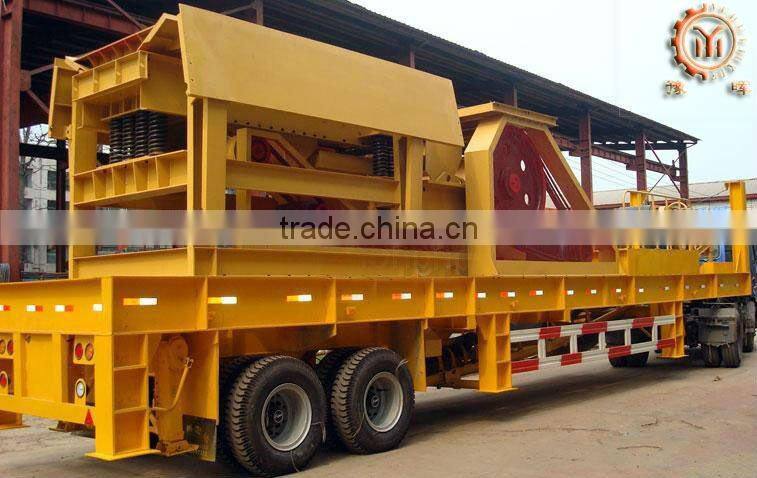

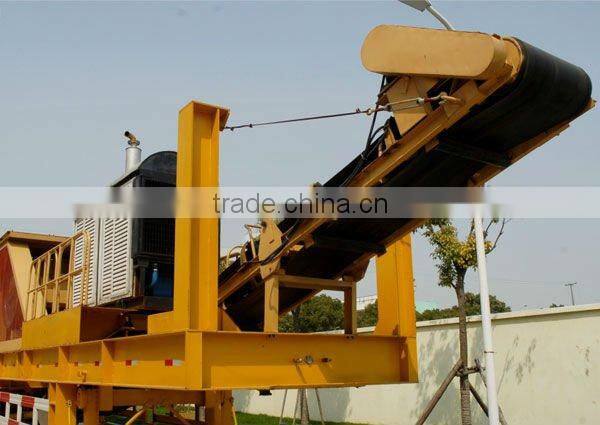

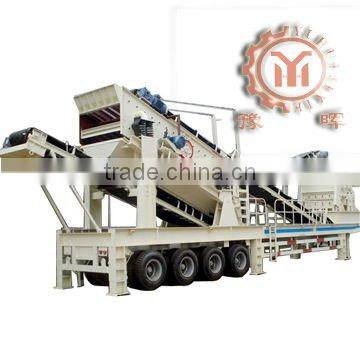

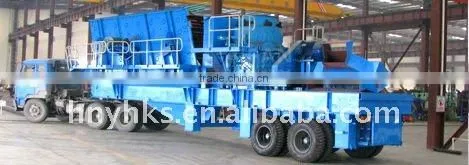

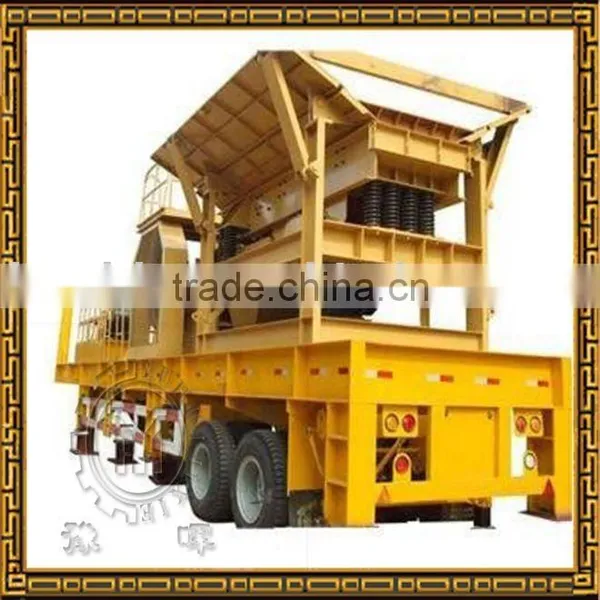

convenient stone quarry crushing plant made in china

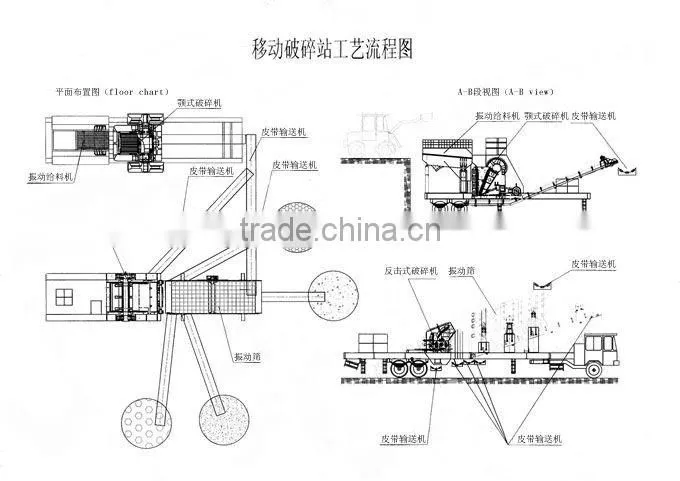

Whole overview of quarry crushing plant:
This series plants incorporate all the crushing plants into one which eliminate the work to install the basic facilities in the bumpy ground when you use the independence crushing plants, reduce the cost of the material and man-hour.This reasonable and compact arrangement of the equipments improves the flexibility to set-up these machines.
High efficiency of quarry crushing plant:
- quarry crushing plant can be used independently, it can also supply more flexible applications to suit the business contractors special requirements according to the material type and required product sizes. It can achieve the most efficient transportation and lowest cost.
Better adaptability and flexible layout:
- quarry crushing plants can work independently or together according to the coarse crushing or the fine crushing requires. Products flop gates in the by-pass support more ways to transport deck overs. The Diesel generators of the incorporated plant can not only supply power for this plant, but also supply power for other plants of the process flow.
Main technical data:
Model |
YG938E69 |
YG1142E710 |
YG134E912 |
Transport Length |
11900 |
13100 |
14600 |
Transport width (mm) |
2550 |
2550 |
2950 |
Transport height (mm) |
3650 |
4450 |
4500 |
Maximum length (mm) |
12100 |
13300 |
14600 |
Maximum width (mm) |
2900 |
2950 |
3300 |
Maximum height (mm) |
4060 |
4810 |
5300 |
Weight (T) |
39 |
57 |
83 |
Tire configuration and |
dual-axis C |
three-axis C |
four-axis C |
Crusher Type |
PE600×900 |
PE750×1060 |
PE900×1200 |
Max feed (mm) |
480 |
630 |
750 |
Discharge |
65~160 |
80~140 |
95~165 |
Capacity |
90~180 |
110~320 |
220~450 |
Feeder Type |
GZD960×3800 |
GZD1100×4200 |
GZD1300×4900 |
Main belt conveyer |
B800×8.5M |
B1000×9M |
B1200×9.5M |
Side belt conveyer model(optional) |
B450×3M |
B500×3.5M |
B650×4M |
Generator power (optional) |
180 |
220 |
250 |
Magnetic separator |
RCYD(C)-8 |
RCYD(C)-10 |
RCYD(C)-12 |
...
