Specifications
hot sell rotary kiln bauxite production line1. hot hot sell rotary kiln
2. 30 years experience
3.smooth operation

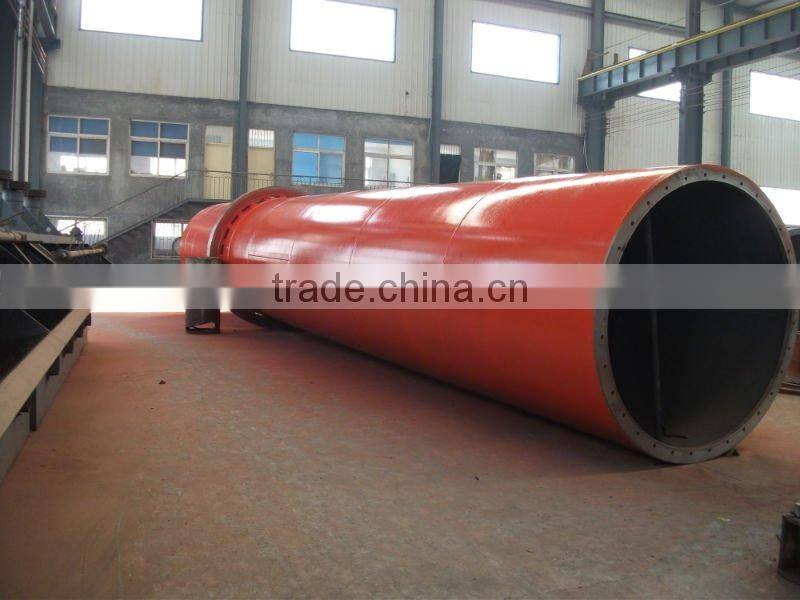

hot sell rotary kiln bauxite production line
1. rotary kiln features:
1. A Rotary kiln is a processing device used to raise materials to a high temperature (calcination) in a continuous process.
2. simple structure, high production line, smooth operation , working continuously.
3. we can design special rotary kiln for your specific requirements , offer technical staff to help you install and run the machine.
2.specific refractory lining of rotary kiln :
1. The purpose of the refractory lining is to insulate the steel shell from the high temperatures inside the kiln, and to protect it from the corrosive properties of the process material. It may consist of refractory bricks or cast refractory concrete, or may be absent in zones of the kiln that are below around 250°C.
2. The refractory selected depends upon the temperature inside the kiln and the chemical nature of the material being processed. In some processes, such as cement, the refractory life is prolonged by maintaining a coating of the processed material on the refractory surface. The thickness of the lining is generally in the range 80 to 300 mm.
3. A typical refractory will be capable of maintaining a temperature drop of 1000°C or more between its hot and cold faces.
4. The shell temperature needs to be maintained below around 350°C in order to protect the steel from damage, and continuous infrared scanners are used to give early warning of "hot-spots" indicative of refractory failure.
3. Specification of rotary kiln:
Specification | Capacity(t/d) | Kiln obliquity (%) | Bearing quantity | Kiln rotation speed(r/min) | Main driving (r/min) | ||||||
Motor | Reductor | ||||||||||
Main driving | Auxiliary driving | Type | Rated power (KW) | Speed adjustment range (r/min) | Rated voltage (v) | Type | Speed ratio | ||||
Φ2.5×40 | 180 | 3.5 | 3 | 0.98-2.94 | 0.036 | YCT315-4B | 45 | 132-1320 | 380 | ZS145-1-I | 49.63 |
Φ2.5×60 | 168 | 3.5 | 4 | 0.516-1.549 | 0.036 | YCT355-4B | 75 | 440-1320 | 380 | ZS165-7-II | 99.96 |
Φ3×48 | 700 | 3.5 | 3 | 0.726-3.63 | 0.1375 | ZSN4-280-091B | 110 | 200-1000 | 440 | ZSY450-35-V | 30.794 |
Φ3×60 |
| 3.5 | 4 | 0.492-1.476 | 0.034 | YCT355-4B | 75 | 440-1320 | 380 | ZL165-7-I | 99.96 |
Φ3×100.94 | 450 | 4 | 4 | 0.3-1.503 | 0.275 | ZSN4-250-21B | 90 | 100-1000 | 440 | NZS995-90-VI-L | 90 |
Φ3.2×46 | 1000 | 3.5 | 3 | 0.36-3.57 | 0.108 | ZSN4-280-091B | 160 | 100-1000 | 440 | NZS995-40VIBR | 40 |
