Specifications
rotary kiln burner exported to 50 countries1.large capacity
2.smooth operation
3.ISO9001:2000
4.welcome to visit

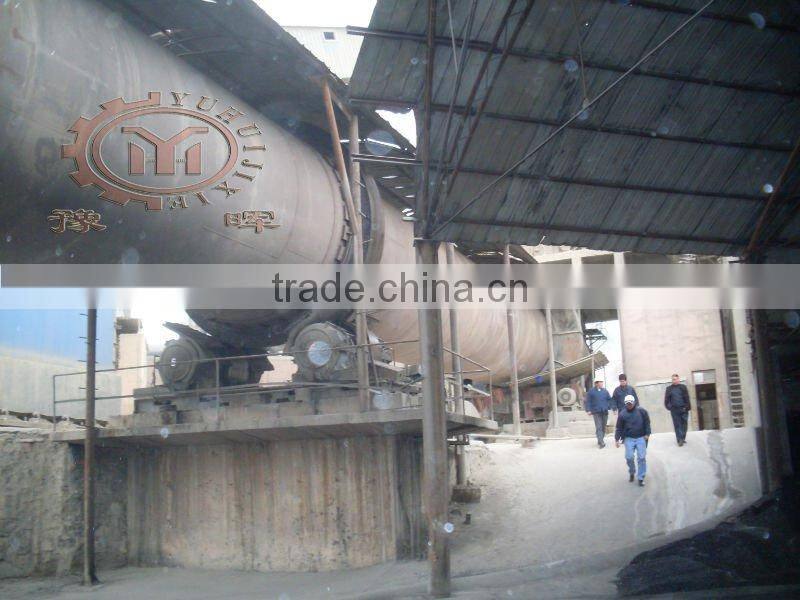

rotary kiln burner exported to 50 countries
1. rotary kiln burner application:
used for magnetic roasting of iron ore and oxidizing roasting of chrome and nickel in the steel factory; baking high-alumina mine in the refractory material factory; baking chamotte and alumina in the aluminium factory and baking chrome ore and chrome powder in the chemical plant
2. rotary kiln burner main features:
simple structure, convenient and reliable control of the production process, less wearing parts, high rates of operation, its not only used to calcine high-grade cement in cement plant, but also widely used in metallurgical, chemical, construction and other industries. The rotary kiln produced by our plant has strong structure, stable operation, high-quality products from the kiln and so on advantages, we can also offer advanced efficient shaft preheater, five grade cyclone preheater.
3. rotary kiln main technical data:
Specification | Capacity(t/d) | Kiln obliquity (%) | Bearing quantity | Kiln rotation speed(r/min) | Main driving (r/min) | ||||||
Motor | Reductor | ||||||||||
Main driving | Auxiliary driving | Type | Rated power (KW) | Speed adjustment range (r/min) | Rated voltage (v) | Type | Speed ratio | ||||
Φ2.5×40 | 180 | 3.5 | 3 | 0.98-2.94 | 0.036 | YCT315-4B | 45 | 132-1320 | 380 | ZS145-1-I | 49.63 |
Φ2.5×60 | 168 | 3.5 | 4 | 0.516-1.549 | 0.036 | YCT355-4B | 75 | 440-1320 | 380 | ZS165-7-II | 99.96 |
Φ3×48 | 700 | 3.5 | 3 | 0.726-3.63 | 0.1375 | ZSN4-280-091B | 110 | 200-1000 | 440 | ZSY450-35-V | 30.794 |
Φ3×60 |
| 3.5 | 4 | 0.492-1.476 | 0.034 | YCT355-4B | 75 | 440-1320 | 380 | ZL165-7-I | 99.96 |
Φ3×100.94 | 450 | 4 | 4 | 0.3-1.503 | 0.275 | ZSN4-250-21B | 90 | 100-1000 | 440 | NZS995-90-VI-L | 90 |
Φ3.2×46 | 1000 | 3.5 | 3 | 0.36-3.57 | 0.108 | ZSN4-280-091B | 160 | 100-1000 | 440 | NZS995-40VIBR | 40 |
Φ3.2×52 | 1200 | 3.5 | 3 | 0.343-2.34 | 0.102 | ZSN4-280-21B | 125 | 100-1000 | 440 | ZSY1110-71BLVI | 71.54 |
Φ3.3×50 | 1300 | 3.5 | 3 | 0.676-3.38 | 0.106 | ZSN4-280-091B | 160 | 200-1000 | 440 | NZS1110-40VI | 40 |
Φ3.3×52 | 1300 | 3.5 | 3 | 0.266-2.66 | 0.0838 | ZSN4-280-11B | 125 | 100-1000 | 440 | NZS995-40VIBR | 40 |
