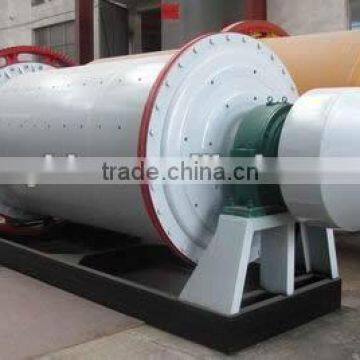

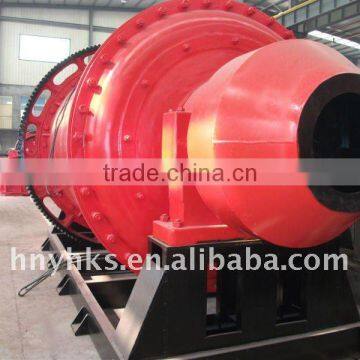

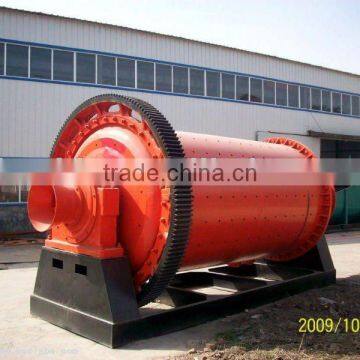

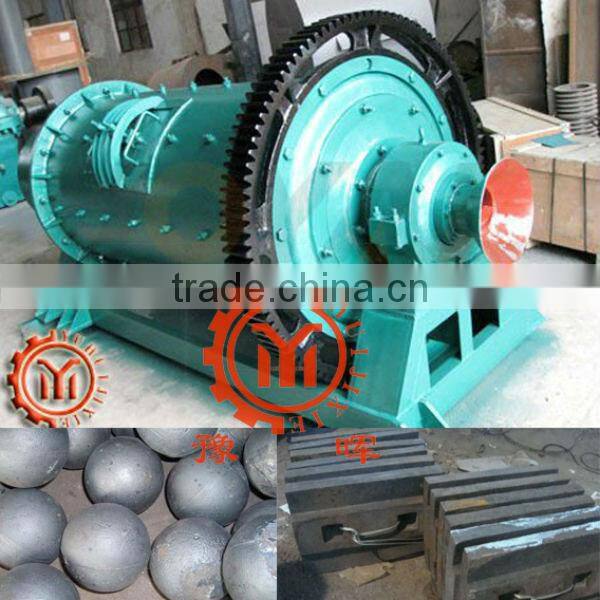

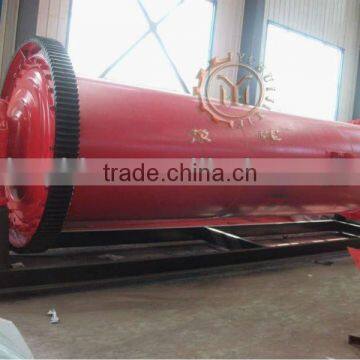

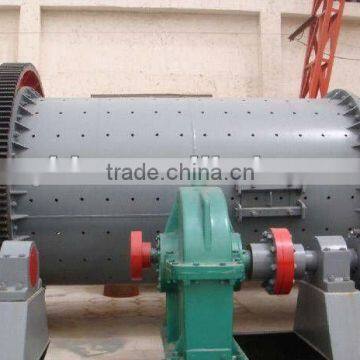

Yuhui small grinding ball mill with competitive price
Product Discription of our ball mill
Ball mill is a key equipment to grind the crushed materials, and it's widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics.
Working Principle of ball mill:
The ball mill is a horizontal rotating device transmitted by the outer gear.
The materials are transferred to the grinding chamber through the quill shaft uniformly.

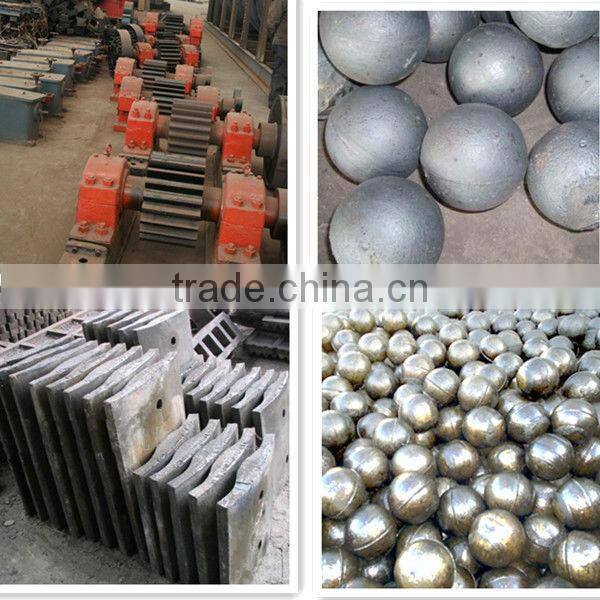

There are ladder liner and ripple liner and different specifications of steel balls in the chamber.
The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials.
The ground materials are discharged through the discharging board thus the grinding process is finished.
Technical Parameters:
Model | input size(mm) | Output size (mm) | Weight of ball (t) | Power(kw) | Capacity(t/h) | Weight (kg) |
900*1800 | 15 | 0.075-0.89 | 1.9 | 15 | 0.6-2 | 3400 |
900*2100 | 15 | 0.075-0.4 | 2.3 | 18.5 | 1-2 | 3900 |
900*3000 | 25 | 0.075-0.4 | 3.85 | 30 | 1.1-2.5 | 7780 |
1200*2400 | 25 | 0.075-0.4 | 4.6 | 30 | 1.3-3.2 | 8650 |
1200*2800 | 25 | 0.075-0.4 | 5.4 | 37 | 1.5-3.7 | 10020 |
1200*4500 | 25 | 0.075-0.4 | 8.6 | 45 | 2.7-6.79 | 14000 |
1500*3000 | 25 | 0.047-0.4 | 9 | 75 | 3.3-8.2 | 14122 |
1500*3500 | 25 | 0.047-0.4 | 10.5 | 75 | 3.3-8.5 | 15636 |
1500*4500 | 25 | 0.047-0.4 | 13.5 | 90 | 4.5-12 | 20000 |
1500*5700 | 25 | 0.047-0.4 | 17 | 110 | 2.6-14 | 25000 |
1830*3000 | 25 | 0.047-0.4 | 13.5 | 135 | 4-15 | 28000 |
1830*4500 | 25 | 0.047-0.4 | 20 | 155 | 4-19 | 32000 |
1830*7000 | 25 | 0.047-0.4 | 31.5 | 210 | 6-22 | 37500 |
2100*3000 | 25 | 0.047-0.4 | 18 | 210 | 6.4-28 | 40790 |
2100*4000 | 25 | 0.047-0.4 | 21.5 | 210 | 7.6-28 | 43454 |
Established in the 1970s, Henan Yuhui Mining machinery Co.Ltd has developed into a famous manufacturer through
40 years’ struggling and progressing.Specialized in producing mineral dressing equipment, compound fertilizer
equipment, cement equipment, as well as sand making equipment.
Henan Yuhui Mining machinery Co.Ltd is located in Zhengzhou City in central plains, which adjoins to ancient
millennium Shaolin Temple (Kongfu Origin) to the south, and Yellow River to the north. With Lianhuo highway
and Longhai railway, it owns convenient transportation and pleasant scenery.
Our company guarantees repair, replacement and refund and it is warrant -able to the complete machine for 12 months. And we can design the site for free and provide basic materials, assembly drawings and equipment installation technical services. At the same time, we provide a connected sequence services with directing civil engineering on spot, installing and debugging the equipment, training technical and operating people abroad. Also, our engineers are assured be sent to work abroad for a long period. Our company supplies accessories for a long period and lifetime warranty.
