Specifications
high quality superfine pulverizers for limestone ceramics1. quality is prior
2. 352-1500mesh
3. over 200 customers world

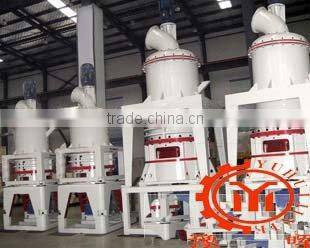

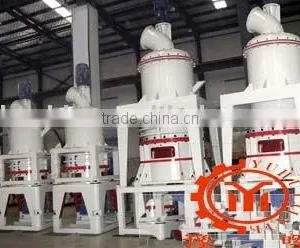

high quality superfine pulverizers for limestone ceramics
1.Application:
Barite, calcite, limestone, kaolin, bentonite, marble, gypsum, refractory quartz stone, glass, ceramics hardness is not greater than 9.3 and humidity below 6% of the minerals in the high-powder processing, particle size -1.5 thousand in the 80 mesh between the mesh of arbitrary regulation.
2.Introduction:
Centrifugal superfine milling machine (referred to as ultra-fine grinding) is a company at home and abroad on the basis of the advanced milling equipment, developed out of a new generation of ultra-fine grinding equipment.
superfine product (325-1500 mesh)
3.Working principle:
load the stuff for grinding evenly and continuously into the grinding chamber of the main frame. Due to the centrifugal force in rotation, the roller swings go outward and presses closely upon the ring. The shovel carries the stuff to the space between the roller and ring. When the roller rolls, the stuff is thus grinded.
After being grinded, the stuff is to be routed to the classifier along wind belt of the blower and the rough powder will be put back to the grinder for regrinding.
The fine powder flows into the cyclone collector together with air flow and is expelled from the powder output pipe as product.
4.Features:
- High pressure, fine powder, high yield.
- The changeable parts wear evenly, longer life span.
- Small iron content in powder.
- Continuous operation of the machine, oiling without stopping the machine.
- The low accident rate, easy installation and high comprehensive efficiency.
5.Main technical parameters:
Technical Data / Model | LXM820 | LXM1120 | LXM1300 | LXM1550 | LXM1700 | LXM1900 | LXM2200 | LXM2300 |
Millstone in diameter (mm) | 820 | 1120 | 1300 | 1550 | 1700 | 1900 | 2200 | 2300 |
Capacity (t / h) | 1~5 | 6~10 | 16~20 | 22~28 | 30~38 | 36~43 | 70~90 | 95~115 |
Into the grinding material size (mm) | 0~25 | 0~30 | 0~35 | 0~45 | 0~50 | 0~55 | 0~60 | 0~65 |
Product Moisture (%) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
Total motor power (kw) | 55 | 110 | 220 | 315 | 400 | 500 | 710 | 800 |
Weight (t) | 16 | 27 | 45 | 75 | 90 | 115 | 160 | 190 |
