Specifications
high energy ball mill1.low consumption
2.CE&ISO certificate
3.high grinding ratio
4.easy to maintain and control

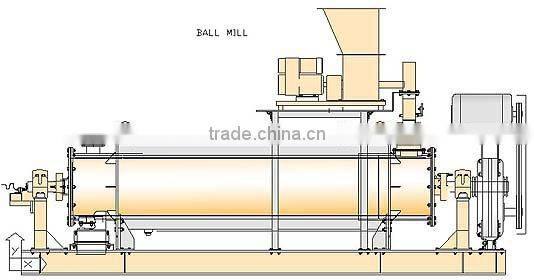

New Design high energy ball mill
I. Brief introduction of high energy ball mill:
Ball mill is an efficient tool for grinding many materials into fine powder. The Ball Mill is used to grind many kinds of mine and other materials, or to select the mine.2 It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry way and the wet way. It can be divided into tabular type and flowing type according to different expelling mine.
II. Working principle of high energy ball mill:
To use the Ball Mill, the material to be ground is loaded into the Neoprene barrel that contains grinding media. As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
Quite simply, the longer the Ball Mill runs, the finer the powder will be. Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the Ball Mill runs. Our Ball Mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals, and make Black Powder.
III. Features of high energy ball mill:
1) Easy and safe operation
2) Stable performance
3) Even product size
4) Low energy consumption
4) Low investment, high return
IV. Technical parameters of high energy ball mill:
specification | Rotating speed (r/min) | Weight of balls(t) | Feed size(mm) | Discharge size (mm) | Capacity (t/h) | Power of motor (kw) | weight(t) |
Φ900×1800 | 36-38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 4.6 |
Φ900×3000 | 36 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 5.6 |
Φ1200×2400 | 36 | 3 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
Φ1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
Φ1200×4500 | 32.4 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
Φ1500×3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 15.6 |
Φ1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
Φ1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
Φ1830×3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 28 |
Φ1830×6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
Φ1830×7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 36 |
Φ2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 | 48.5 |
Φ2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
Φ2200×7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 56 |
Φ2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 7-50 | 245 | 54 |
Φ2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
