2011 Hot Energy Saving Ball Mill

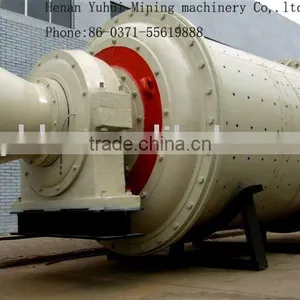

2011 Hot Energy Saving Ball Mill thumbnail-1
2011 Hot Energy Saving Ball Mill photo-1
US$ 7,548 - 204,918 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Henan Yuhui Mining Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai Dalian or China main port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Ball Mill
Motor Type AC Motor
Power(W) different models
Capacity(t/h) different models
Place of Origin Henan, China
Brand Name Yuhui
Model Number many types
Dimension(L*W*H) different models
Weight different models
Certification ISO, BV
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

2011 hot energy saving ball mill
1.Simple structure
2.Easy oeration
3.price:negotiable
4.ISO9001:2000

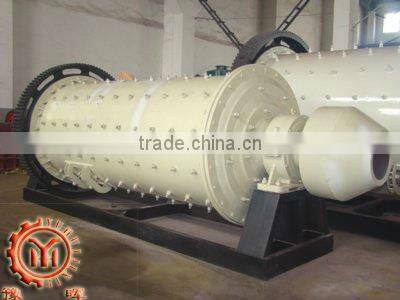

2011 hot Energy-Saving  Ball Mill

Ball Mill is a key equipment to grind all kinds of ores and other materials. ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc, and the ball mill can grind various ores and other materials with dry type and wet type.

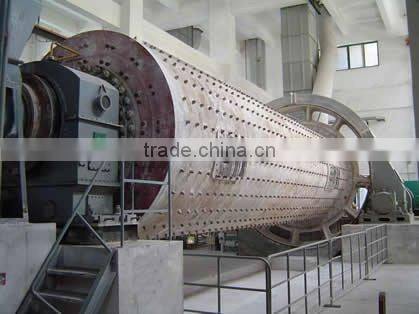

Energy-Saving  Ball Mill

2011 hot energy saving ball mill

Ball mill consists of feed&discharge parts, rotary shell, transmission part and other major components.Hollow shaft is with steel parts, lining is removable. Rotary gear adopts casting hobbing, and the tube body is with resisting liner.

Export:As the Brand Name of our Mining Machine, our Ball Mill Have been imported to Vietnam,Malaysia,Indonesia,Turkmenistan,Ghana,Morocco and other countries for gold separation,Iron&Copper concentration. Under our courtesy services and high quality, long stable cooperation has been established.

Energy-Saving  Ball Mill

(1) Newest structure
(2) Easy maintenance and operation

(3) Durable wearing parts
(4) Low operating cost
(5) Big and fine grinding ratio



Model

Drum rotary speed

(r/min)

Feeding capacity

(t)

feeding size

(mm)



Discharging size (mm)

Output (t/h)

Power (kw)

Weight (t)

Φ900×2100

38

1.5

≤15

0.075-0.89

0.5-2

15

3.9

Φ900×3000

38

2.51

≤15

0.075-0.89

0.8-3.5

22

5.0

Φ1200×2800

32

4.0

≤20

0.074-0.4

1.0-5.0

30

9.5

Φ1200×3000

32

4.5

≤20

0.074-0.4

1.2-5.6

37

11.5

Φ1200×4500

30

5.5

≤20

0.074-0.4

1.5-6.0

55

13.6

Φ1500×4500

27

11

≤25

0.074-0.4

4-10

95

21

Φ1500×5700

27

12

≤25

0.074-0.4

4-13

110

23.5

Φ1830×3000

24

12

≤25

0.074-0.4

5-15

130

31

Φ1830×3600

24

13

≤25

0.074-0.4

5-16

130

32

Φ1830×4500

24

14

≤25

0.074-0.4

5-18

155

33.5

Φ1830×7000

24

21

≤25

0.074-0.4

6-20

210

36

Φ2100×3600

24

21

≤25

0.074-0.4

7-35

215

39.5

Φ2100×4500

24

26

≤25

0.074-0.4

8-42

245

43.5

Φ2200×3000

21

28

≤25

0.074-0.4

8-43

245

46

Φ2200×4800

21

35

≤25

0.074-0.4

9-45

285

48

Φ2400×3000

21

23

≤25

0.074-0.4

8-60

285

55

Φ2700×4500

21

48

≤25

0.074-0.4

12-83

475

79

 2011 hot energy saving ball mill
