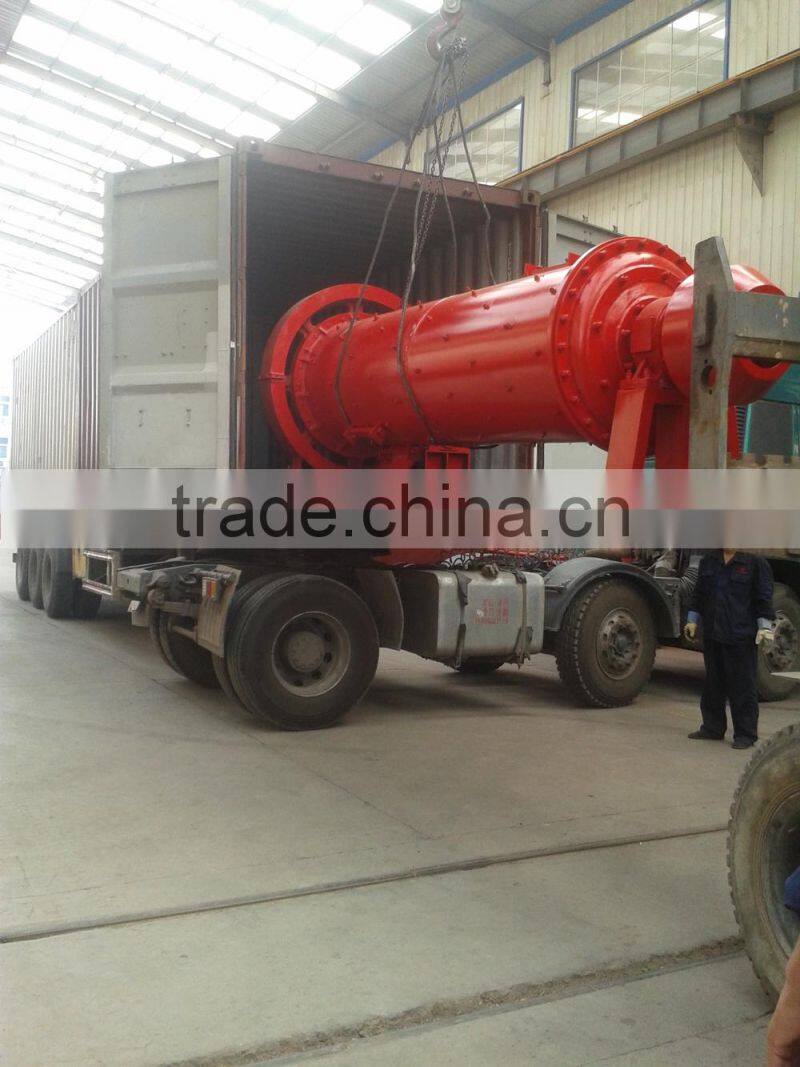

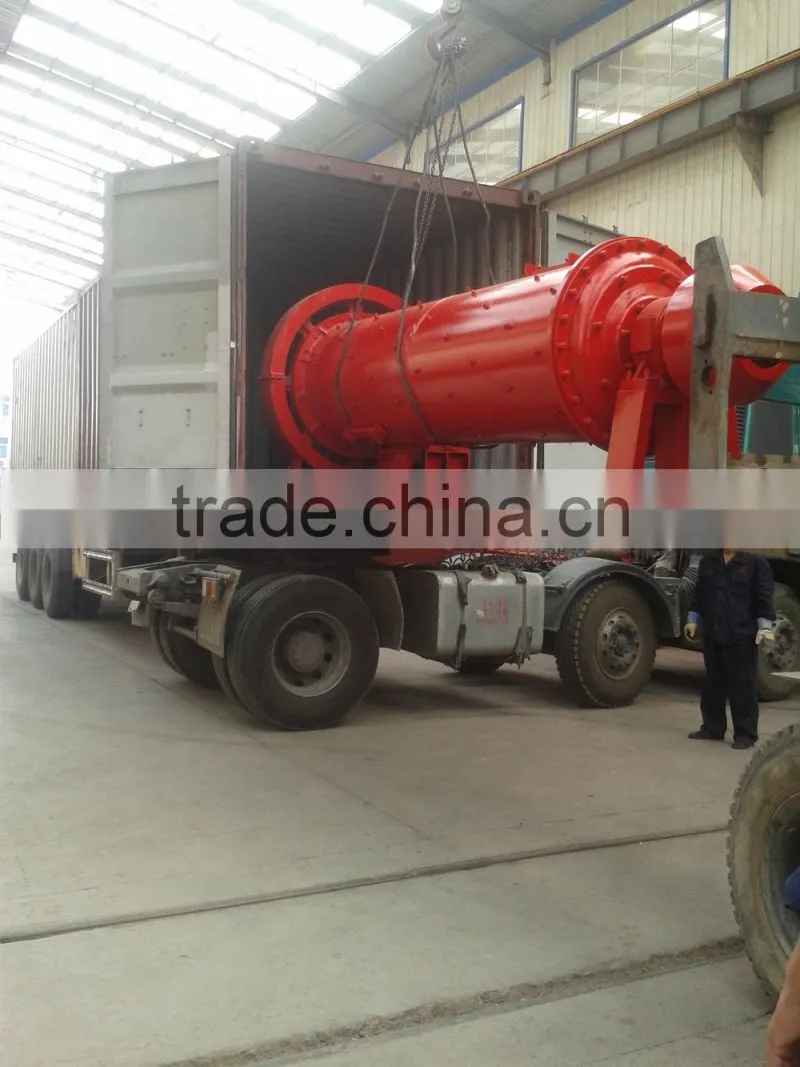

cone ball mill machine price made by china
Ball Mill Application:
The ball mill is widely applied in mineral classification and selection, cement, fireproof materials, glass, pottery, chemical industry and so on. The ball mill can grind all kinds of rocks and grinding materials. There are two ways of grinding: the dry process and the wet process.
Ball Mill Working Principle:
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Aim of grinding ore process:
Grinding process, after crushing process, is the last process before ore selection. The aim of grinding ore is to make sure the useful elements of ores can be separated at the extreme, which reach to the proper size for ore selection process, and create conditions for recovering useful elements of ores in selection process.
Technical parameter of ball mill:
Model | Feeding size(mm) | Discharging size(mm) | Weight of ball(t) | Rotational speed (r/min) | Power(kw) | Capacity(t/h) | Weight(t) |
Φ900*1800 | ≤20 | 0.075-0.89 | 1.4 | 42 | 18.5 | 0.65-2 | 3.6 |
Φ900*2100 | ≤15 | 0.075-0.83 | 1.7 | 41 | 15 | 0.7-3.5 | 3.9 |
Φ900*3000 | ≤20 | 0.075-0.89 | 2.5 | 41 | 22 | 1.1-3.5 | 4.5 |
Φ1200*2400 | ≤25 | 0.075-0.6 | 3.5 | 36 | 30 | 1.5-4.7 | 11.5 |
Φ1200*2800 | ≤25 | 0.075-0.6 | 4.5 | 36 | 37 | 1.5-5 | 13 |
Φ1200*4500 | ≤25 | 0.075-0.4 | 5.5 | 32 | 55 | 1.6-5.8 | 13.8 |
Φ1500*3000 | ≤25 | 0.047-0.4 | 8.68 | 31 | 75 | 2-7 | 17 |
Φ1500*3500 | ≤25 | 0.047-0.4 | 7.75-6.4 | 31 | 75 | 3-8.5 | 17.5 |
Φ1500*4500 | ≤25 | 0.047-0.4 | 10.5 | 27 | 110 | 3.5-8 | 21 |
Φ1500*5700 | ≤25 | 0.047-0.4 | 15 | 27 | 130 | 3.5-10 | 24.7 |
Φ1830*3000 | ≤25 | 0.047-0.4 | 18 | 26 | 160 | 4-12 | 28 |
Φ1800*3600 | ≤25 | 0.047-0.4 | 10.6-11.35 | 26 | 160 | 5-13 | 33.5 |
Φ1830*4500 | ≤25 | 0.047-0.6 | 12 | 26.5 | 185 | 5.5-20 | 35 |
Φ1830*7000 | ≤25 | 0.047-0.4 | 25 | 26 | 210 | 6.5-22 | 36 |
Φ2100*3600 | ≤25 | 0.047-0.4 | 14-15.2 | 24 | 185 | 15-30 | 46.8 |
Φ2200*5500 | ≤25 | 0.047-0.4 | 30 | 21 | 245 | 10-20 | 48.5 |
Φ2200*6500 | ≤25 | 0.047-0.4 | 31 | 21 | 380 | 14-50 | 52.8 |
Φ2200*7500 | ≤25 | 0.047-0.4 | 33 | 21 | 380 | 16-50 | 56 |
Φ2400*3000 | ≤25 | 0.047-0.4 | 15.5-16.6 | 20.6 | 245 | 15-55 | 59 |
