Good Quality Grinding Mill for Minerals

Good Quality Grinding Mill for Minerals thumbnail-1
Good Quality Grinding Mill for Minerals thumbnail-2
Good Quality Grinding Mill for Minerals thumbnail-3
Good Quality Grinding Mill for Minerals thumbnail-4
Good Quality Grinding Mill for Minerals thumbnail-5
Good Quality Grinding Mill for Minerals photo-1

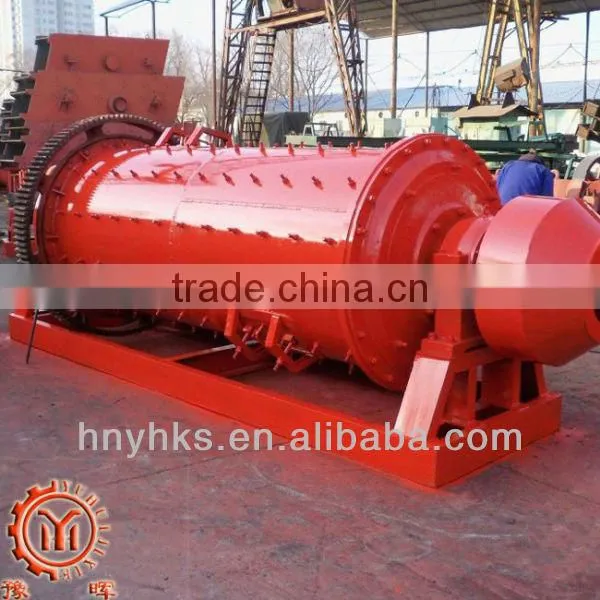

Good Quality Grinding Mill for Minerals photo-2
Good Quality Grinding Mill for Minerals photo-3
Good Quality Grinding Mill for Minerals photo-4

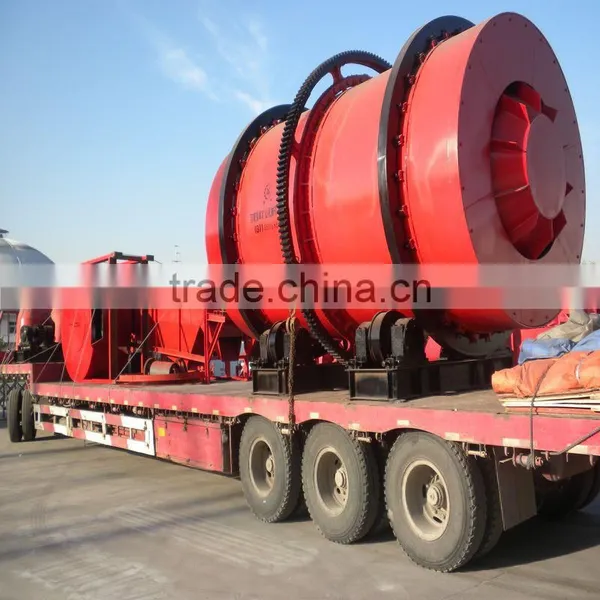

Good Quality Grinding Mill for Minerals photo-5
US$ 2,499 - 999,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Henan Yuhui Mining Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin;shanghai;Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Ball Mill
Motor Type AC Motor
Power(W) 15-800kw
Capacity(t/h) 0.65-90
Place of Origin Henan, China
Brand Name YuHui
Model Number Many types
Dimension(L*W*H) Many types
Weight 3.6-137t
Certification ISO9001:2000
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas

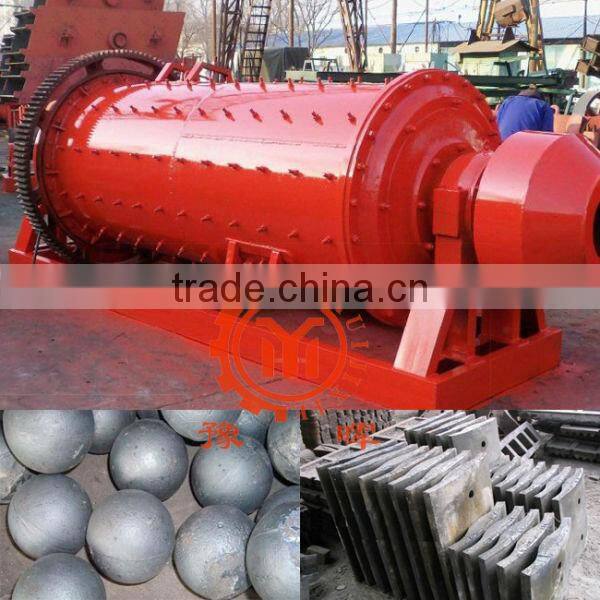

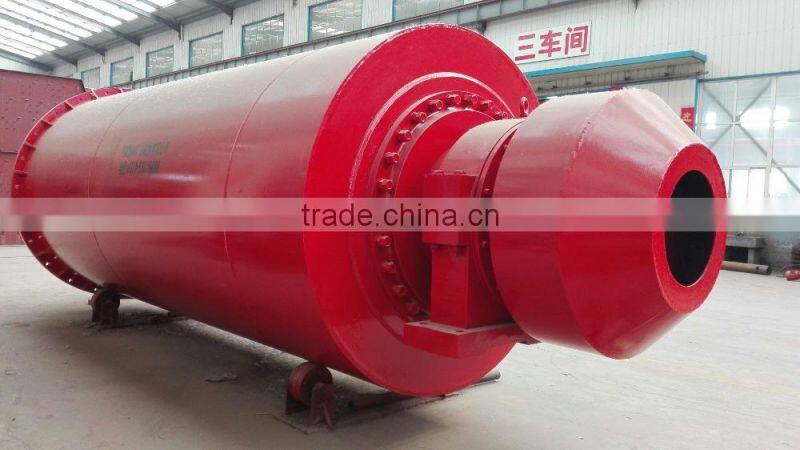

Good quality grinding mill for minerals

Good quality grinding mill for minerals



Brief introduction:



This machine can be located on a base plane surface at one time. Using two row self-aligning

pherical roller bearing, it can reduce energy consumption by 30%.



It can improve the milled granularity and the capacity by 15-20% because of the overall

controlling pattern.



Ball Mill Application:



 The ball mill is widely applied in mineral classification and selection, cement, fireproof

materials, glass, pottery, chemical industry and so on.



The ball mill can grind all kinds of rocks and grinding materials.



There are two ways of grinding: the dry process and the wet process.



Ball Mill Working Principle:

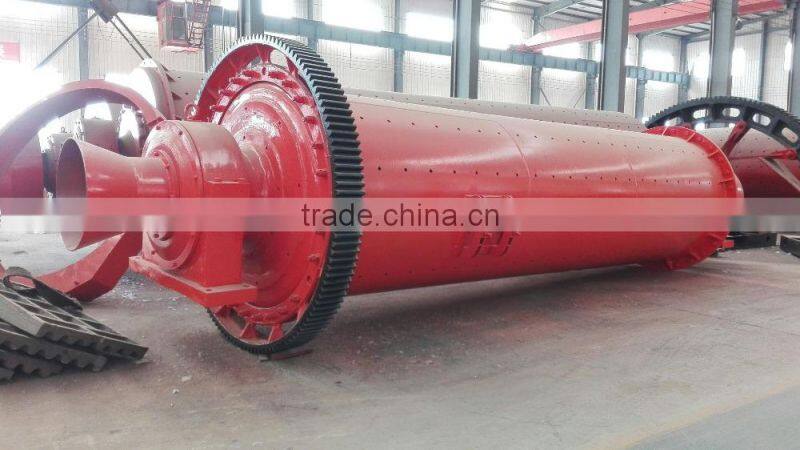

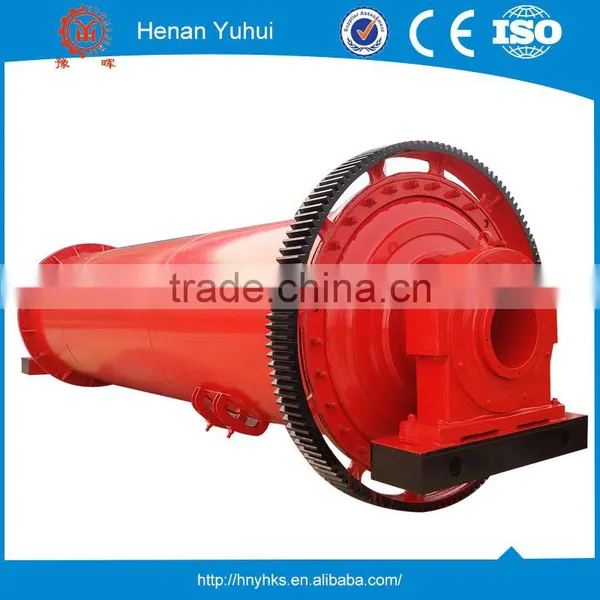

 The ball mill is a horizontal rotating device transmitted by the outer gear. The materials

are transferred to the grinding chamber through the quill shaft uniformly. There are ladder

liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal

force caused by rotation of barrel brings the steel balls to a certain height and impact and

grind the materials. The ground materials are discharged through the discharging board thus

the grinding process is finished.



Technical parameter of ball mill:



Model

Feeding size

(mm)

Discharging size

(mm)

Weight of ball

(t)

Rotational speed (r/min)

Power

(kw)

Capacity

(t/h)

Weight

(t)

Φ900*1800

≤20

0.075-0.89

1.4

42

18.5

0.65-2

3.6

Φ900*2100

≤15

0.075-0.83

1.7

41

15

0.7-3.5

3.9

Φ900*3000

≤20

0.075-0.89

2.5

41

22

1.1-3.5

4.5

Φ1200*2400

≤25

0.075-0.6

3.5

36

30

1.5-4.7

11.5

Φ1200*2800

≤25

0.075-0.6

4.5

36

37

1.5-5

13

Φ1200*4500

≤25

0.075-0.4

5.5

32

55

1.6-5.8

13.8

Φ1500*3000

≤25

0.047-0.4

8.68

31

75

2-7

17

Φ1500*3500

≤25

0.047-0.4

7.75-6.4

31

75

3-8.5

17.5

Φ1500*4500

≤25

0.047-0.4

10.5

27

110

3.5-8

21

Φ1500*5700

≤25

0.047-0.4

15

27

130

3.5-10

24.7

Φ1830*3000

≤25

0.047-0.4

18

26

160

4-12

28

Φ1800*3600

≤25

0.047-0.4

10.6-11.35

26

160

5-13

33.5

Φ1830*4500

≤25

0.047-0.6

12

26.5

185

5.5-20

35

Φ1830*7000

≤25

0.047-0.4

25

26

210

6.5-22

36

Φ2100*3600

≤25

0.047-0.4

14-15.2

24

185

15-30

46.8

Φ2200*5500

≤25

0.047-0.4

30

21

245

10-20

48.5

Φ2200*6500

≤25

0.047-0.4

31

21

380

14-50

52.8

Φ2200*7500

≤25

0.047-0.4

33

21

380

16-50

56

Φ2400*3000

≤25

0.047-0.4

15.5-16.6

20.6

245

15-55

59

Φ2400*4500

≤25

0.047-0.4

30

21

380

15-60

65

Φ2700*3600

≤25

0.047-0.4

39

20.6

400

20-70

91.3

Φ2700*4000

≤25

0.047-0.4

40

20.7

400

20-80

94

Φ2700*4500

≤25

0.047-0.4

48

20.7

430

20-90

102

Φ3200*4500

≤25

0.047-0.4

65

18

800

According to process condition

137

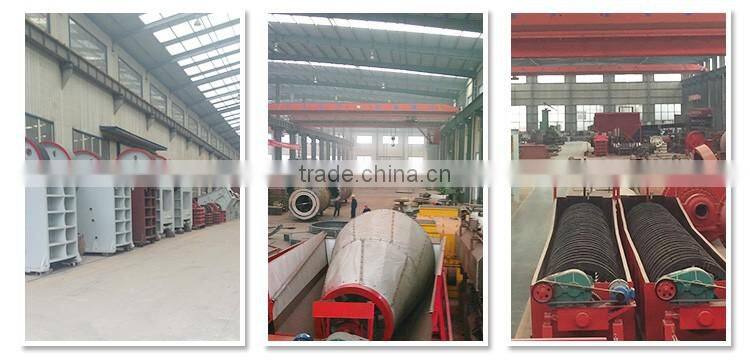

 Good quality grinding mill for minerals









Good quality grinding mill for mineralsGood quality grinding mill for mineralsGood quality grinding mill for mineralsGood quality grinding mill for mineralsGood quality grinding mill for mineralsGood quality grinding mill for mineralsGood quality grinding mill for mineralsGood quality grinding mill for mineralsGood quality grinding mill for mineralsGood quality grinding mill for minerals
