Specifications
ball mill grinding new generation from china1. 30 years experience
2. samples within 48 hours
3. 300 clients around world

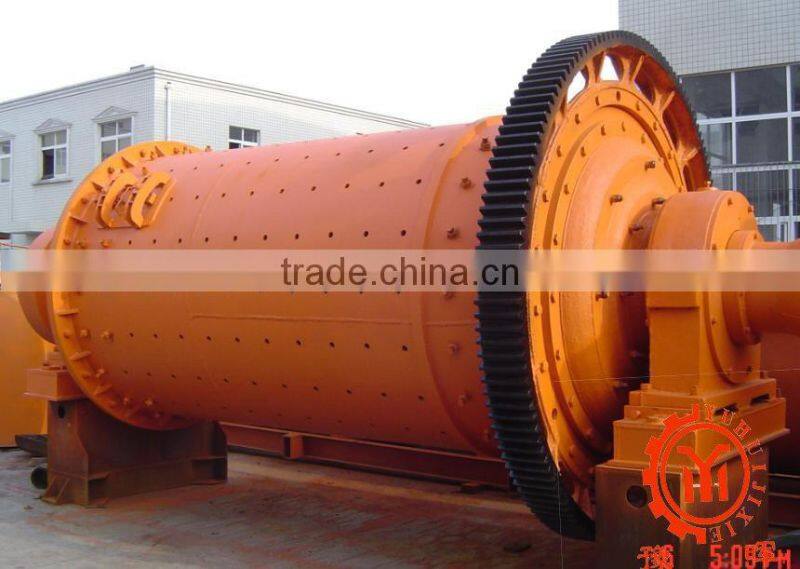

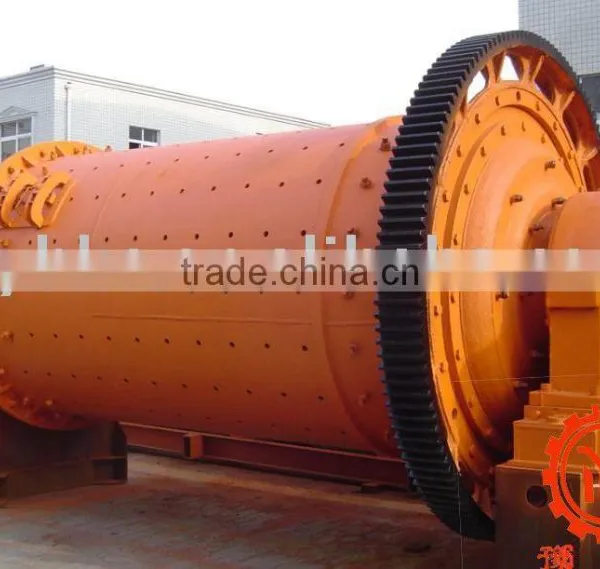

ball mill grinding new generation from china
ball mill grinding working principle:
- the ball mill is horizontal type and tubular running device, has two warehouses.
- The material enters spirally and evenly the first warehouse of the milling machine along the input material hollow axis by input material device.
- there is a ladder scaleboard or ripple scaleboard, and different specification steel balls are installed on the scaleboard, when the barrel body rotates and then produces centrifugal force
- the steel ball is carried to some height and falls to make the material grinding and striking. After grinded coarsely in the first warehouse, the material then enters into the second warehouse for regrinding with the steel ball and scaleboard
- the powder is discharged by output material board and the end products are completed.
ball mill grinding main technical parametres:
Model | Φ2.2×7m | Φ2.2×7.5m | Φ2.2×8m | Φ2.2×9.5m | Φ2.4 ×10m | Φ2.4×11m | Φ2.4×13m | Φ2.6×13m |
Capacity(t/h) | 8-9 | 10-11 | 10-12 | 14-16 | 18-19 | 19-21 | 21-23 | 28-32 |
Form of mill | Open | Open | Open | Open | Open | Open | Open | Open |
Form of transmission | Edge | Edge | Edge | Edge | Edge | Edge | Edge | Edge |
Power(kw) | 380 | 380 | 380 | 475 | 630 | 630 | 800 | 1000 |
Reduction drive type | ZD70 | ZD70 | ZD70 | ZD70 | JR75 | RZD80 | MBY710 | MBY800 |
Reduction drive rate | 5 | 5 | 5 | 5 | 5.64 | 6.3 | 7.1 | 7.1 |
Weight(t)(without motor) | 54 | 63 | 65 | 70 | 94.5 | 99.2 | 115.2 | 148 |
Note: This specification is just reference, any changes are subject to the products.
Our company service concept:
Pre-sale:
(1) help customer choose the proper type of machine
(2) According to customer's special requirements, design and produce products.
(3) Training of technical personnel for clients.
(4) Arranging technical personnel to help clients design and scheme best process and programs on site and offer in time guidance.
on-Sale:
(1) product acceptance inspection.
(2) to help customers develop construction programs.
After sales:
(1) free to assign a dedicated service personnel, provide the on site installation guidance.
(2) Equipment installation.
(3) On-site training of operators.
(4) After complete sets of equipment installed, full-time technical staff on-site free of charge to help customers achieve smooth production, until satisfaction of user.
